THK SHS25C1SS Linear Guide Block
جديد
متوفر11 وحداتجاهز للشحن
كتلة دليلي خطي THK SHS25C1SS بحجم 25، حمل ديناميكي 31.7 kN، حمل ثابت 52.4 kN، ونظام ختم كامل. مصممة للحركات الخطية السلسة والدقيقة والصلبة.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
THK SHS25C1SS LINEAR GUIDE BLOCK
The THK SHS25C1SS is a high-precision linear guide block designed for smooth, accurate, and rigid motion control. With strong load capacities, full sealing system, and reliable performance, it is ideal for industrial automation and high-accuracy machinery.
Manufacturer: THK
Type: Linear Guide Block
Model: SHS25C1SS

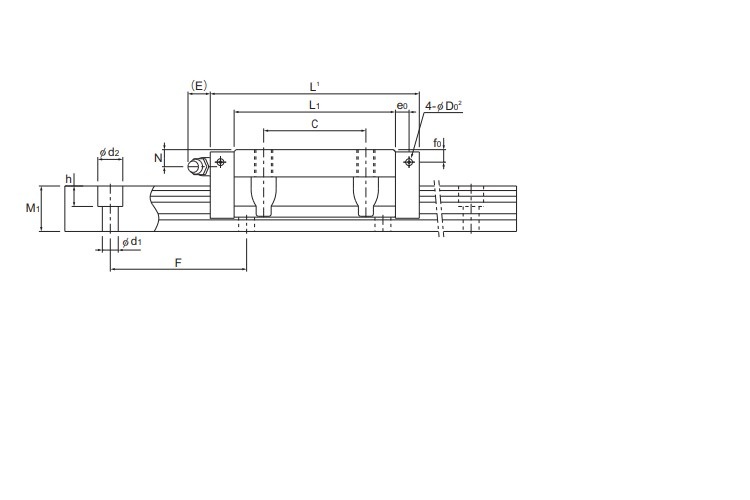

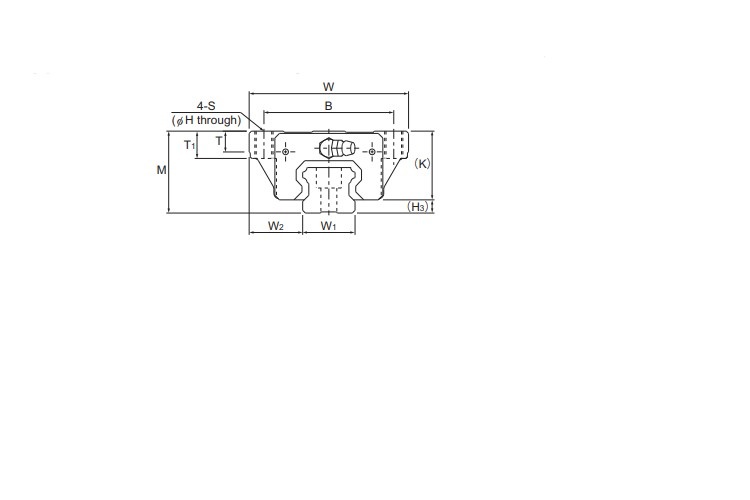

| Size | 25 |
| Length | 92 mm |
| Width | 70 mm |
| Height of Block | 30.2 mm |
| Height of System | 36 mm |
| B | 57 mm |
| Dynamic Load | 31.7 kN |
| Static Load | 52.4 kN |
| No. of LM Block | 1 |
| Through Hole | 4 |
| Sealing | SS, with end seal + side seal + inner seal |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing. |
