Tyco Electronics V23109-S2421-D020 Solid State Relay
مستعمل
متوفر9 وحداتجاهز للشحن
14,99$
مرحّل الحالة الصلبة (SSR) Tyco Electronics V23109S2421D020 مع جهد تحكم دخل 18-30 فولت DC، تيار تحكم 7 مللي أمبير، وأقصى تيار تحويل 2 أمبير. موثوق ومضغوط، مصمم للاستخدام مع كتلة طرفية Weidmuller MOZ 24VDC/24VDC 2A.
18-3022424VDC/24VDC2A7aBlockControlCurrentdcElectronicsInputmAMOZOperatingOutputRelaySolidStateSwitchingTemperatureterminalTycoVvoltageWeidmuller
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

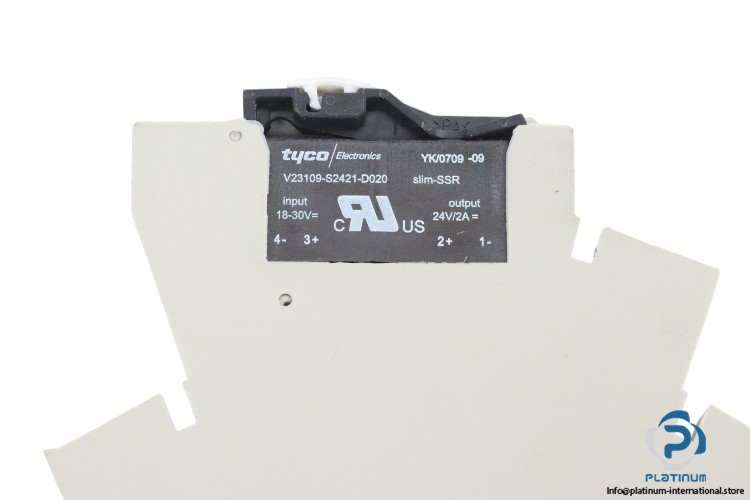

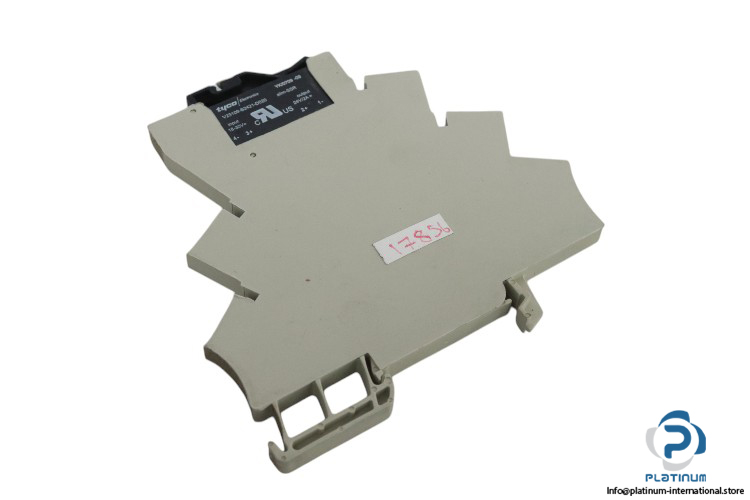

Tyco Electronics Solid State Relay (SSR) V23109S2421D020
Tyco Electronics Solid State Relay (SSR) V23109S2421D020 is a high-performance, compact relay designed for efficient switching and control in industrial applications. This SSR offers excellent reliability and features a wide input control voltage range, precise control current, and high switching capacity. Below are the key technical specifications:
- Manufacturer: Tyco Electronics
- Type: Solid State Relay (SSR)
- Model: V23109S2421D020
Technical Data:
- Input Control Voltage: 18 to 30 V DC
- Control Current: 7 mA
- Release Voltage: 10 V DC
- Maximum Switching Current: 2 A
- Output Voltage: 24 V DC
- Operating Temperature: -20 to 60°C
- Dimensions: 28 x 15 x 5 mm

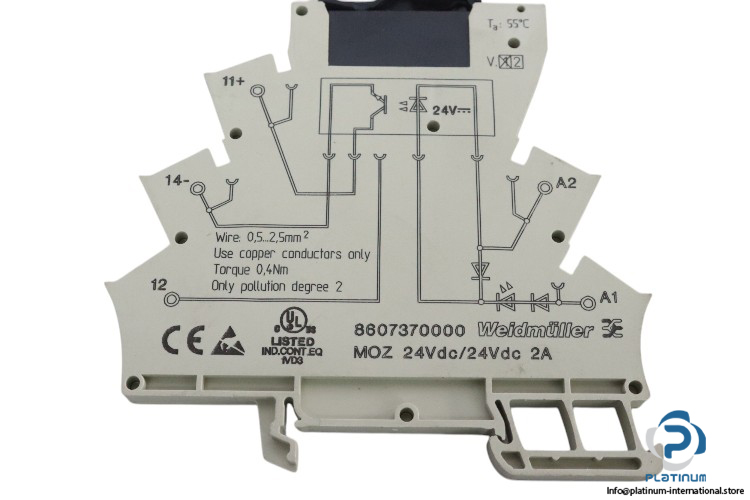

Attachment:
- Manufacturer: Weidmuller
- Type: Terminal Block
- Model: MOZ 24VDC/24VDC 2A
- Part No.: 8607370000
