GSM Communication Module
VKD DIFUS-GSM/DA1 monitoring module with GSM 900/1800 MHz, 0“20 mA input/output range, RS232 interface, 16 signal inputs, 8 command outputs, and 2 W output power.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

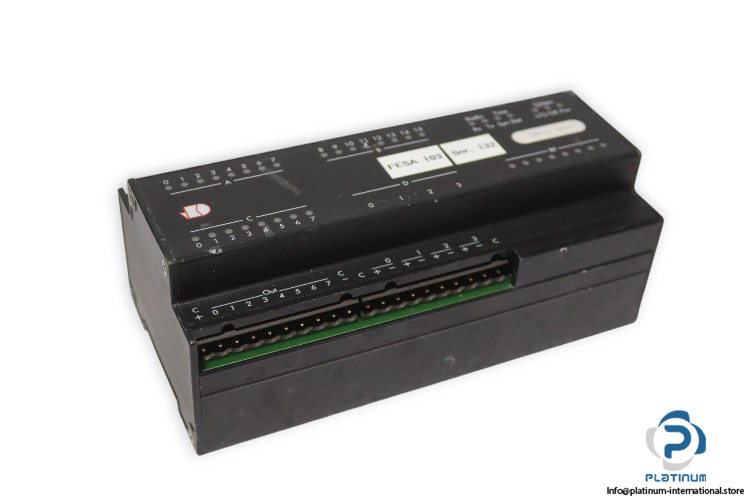

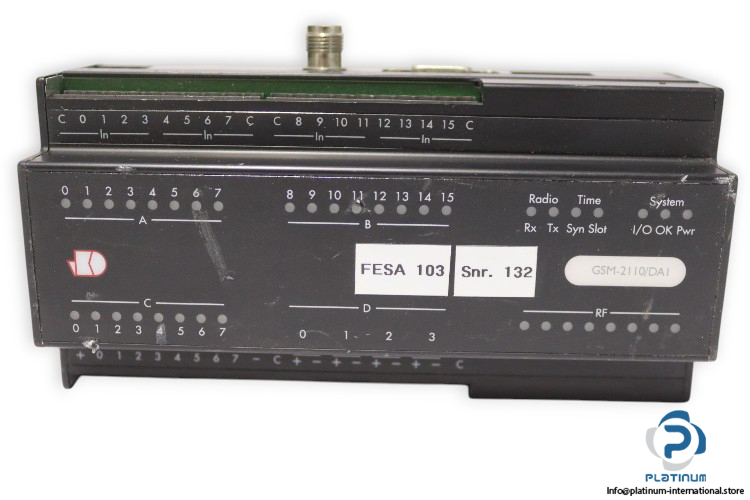

VKD DIFUS-GSM/DA1 GSM Communication Module
The VKD DIFUS-GSM/DA1 is a versatile GSM communication and monitoring module designed for reliable industrial integration. With support for multiple GSM frequencies and flexible input/output configurations, it ensures effective remote monitoring and control.

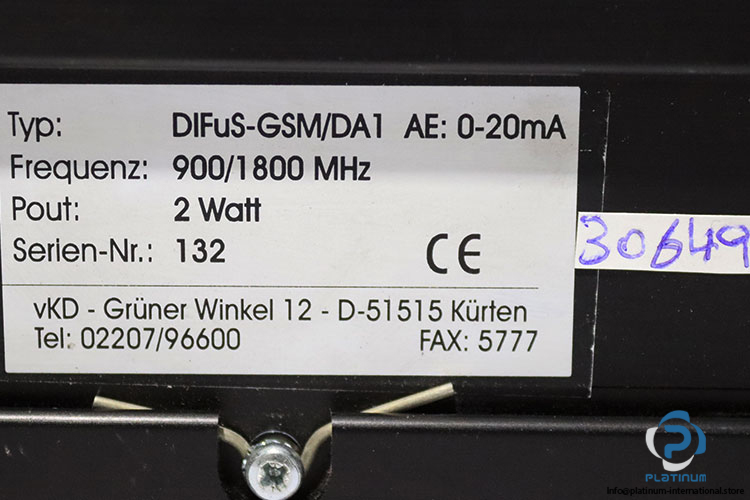

Manufacturer: VKD
Type: GSM Communication Module / Monitoring Module
Model: DIFUS-GSM/DA1
ID No.: GSM-2110/DA1
Serial Number: 132
Ref No.: fesa 103
Series: DIFUS-GSM
| Input/Output Range | 0“20 mA |
| GSM Frequencies | 900 MHz / 1800 MHz |
| Output Power | 2 W |

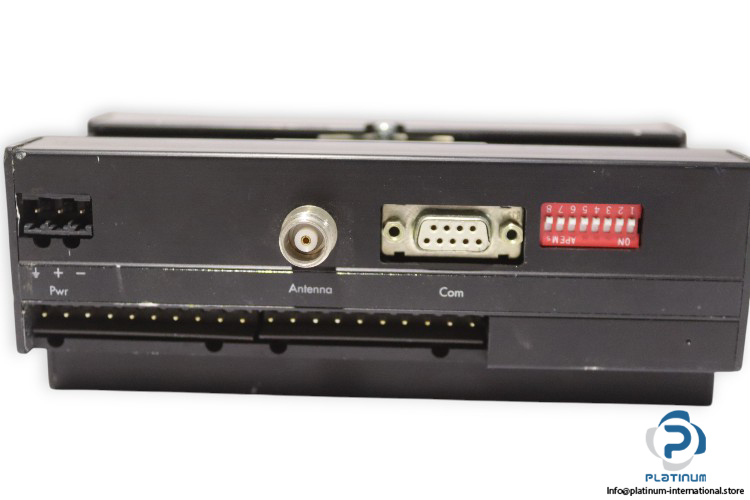

| Interface | RS232 serial (DB9), Current loop, DIP switch config |
| Antenna Connector | Standard coaxial |
| Mounting | Panel / enclosure integration |
| Signal Inputs (Optocoupler) | 16 |
| Command Outputs (PNP) | 8 |
| Analog Inputs | 4 |
| Event Counter | 8 |
| Operating Hours Counter | 8 |
