Wago 750-637 Incremental Encoder Interface
مستعمل
متوفر2 وحداتجاهز للشحن
واجهة الترميز التزايدي WAGO 750-637 هي واجهة ترميز مدمجة مقاومة للانفجار مصممة للتطبيقات الصناعية عالية السرعة. تدعم مدخلات RS-422، وتعمل بتردد 250 كيلو هرتز، وتتميز بتقنية CAGE CLAMP®.
750-637AutomationCageClampconnectionEncoderExplosionHigh-SpeedIncrementalIndustrialInputInterfaceIP20ModuleProofReaderRS-422Wago
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
WAGO 750-637 INCREMENTAL ENCODER INTERFACE
The WAGO 750-637 is a high-precision incremental encoder interface module designed for fast and reliable signal acquisition in automation systems. Engineered for industrial environments, this unit supports RS-422 differential inputs and delivers excellent performance at high frequencies.
Manufacturer: WAGO
Type: Incremental Encoder Interface
Model: 750-637

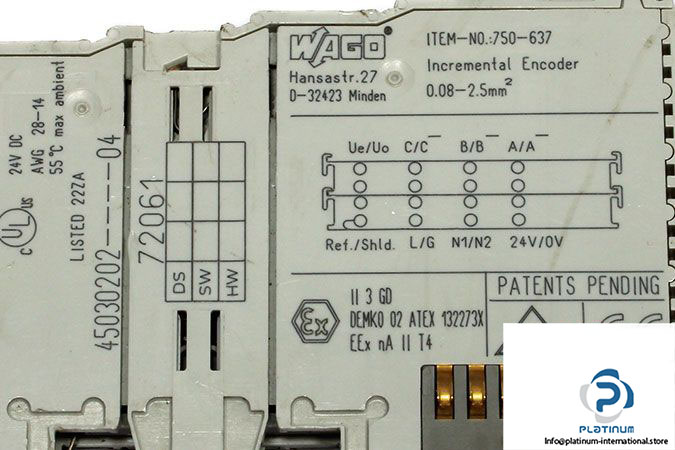

Ref No.: 45030202-04 / 72061
| Counter Depth | 32 bits |
| Supply Voltage (Encoder) | 5 V DC |
| Supply Current (Encoder) Max. | 300 mA |

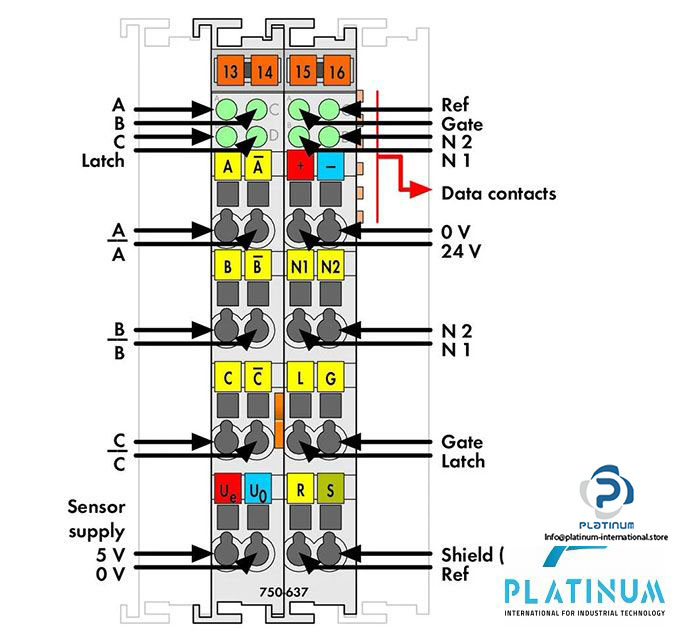

| Encoder Connection | A; /A; B; /B; C; /C (RS-422 Inputs) |
| Output Voltage | 24 V DC |
| Supply Voltage (System) | 5 VDC; Via Data Contacts |
| Limit Frequency | 250 kHz |
| Current Consumption (5 V System Supply) | 110 mA |
| Connection Technology | Inputs/Outputs 16 X CAGE CLAMP® |
| Dimensions | 24 x 69.8 x 100 mm |
| Protection Class | IP20 |
| Explosion Proof | Ex |
| Ambient Temperature (Operation) | 0 / 55 °C |
