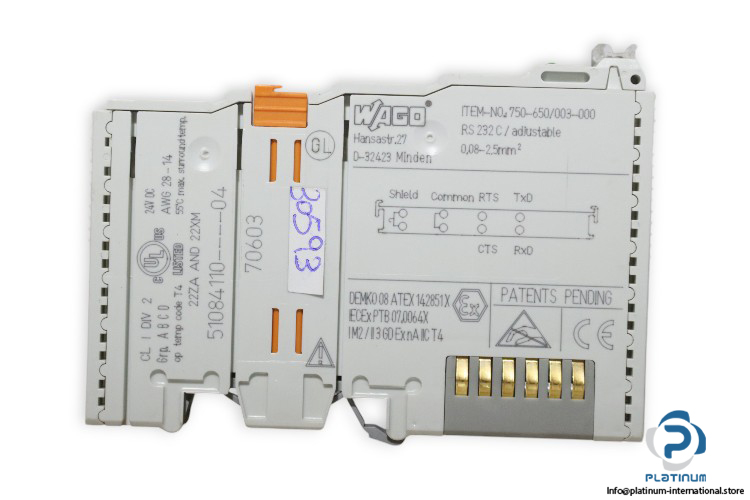

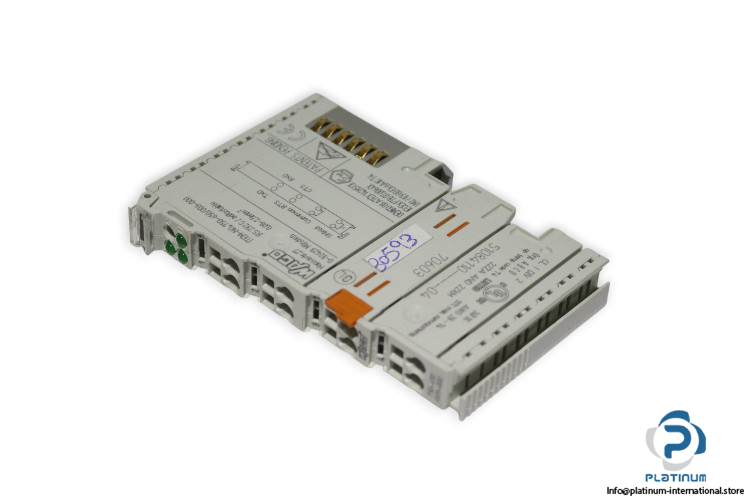

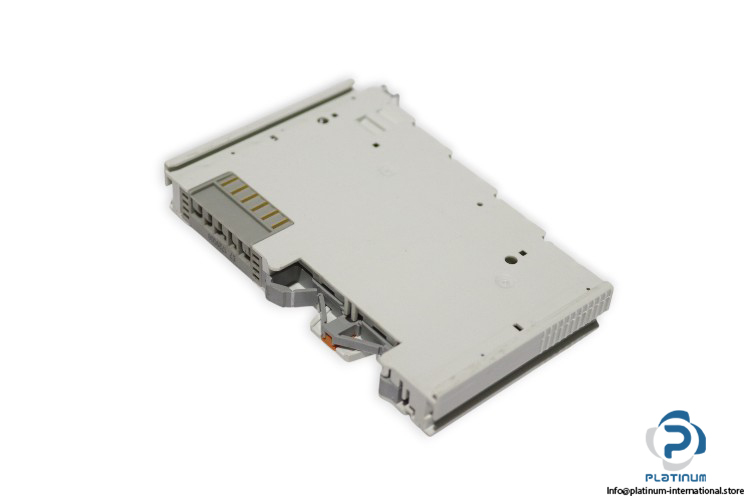

WAGO 750-650 RS-232-C Serial Interface
The WAGO 750-650 RS-232-C Serial Interface is designed for reliable data transmission in industrial automation systems. With robust performance, full-duplex communication, and durable housing, it ensures stable connectivity for demanding applications.
Manufacturer: WAGO
Type: RS-232-C Serial Interface
Model: 750-650
ID No.: 750-650/003-000
Ref No.: CL I DIV 2 / 51084110 04 / 70603
| Device-Specific | Bit skew: 3 %, RS-232-C line length (max.): 15 m |
| Signal Type | RS-232 |
| Transmission Rate | 9.6 kBd |
| Transmission Channels | 1 TxD / 1 RxD, full-duplex |
| Data Width | 1 x 24-bit input/output (3-byte user data); 1 x 8-bit control/status |
| Number of Data Bits | 8 |
| Number of Stop Bits | 1 |
| Buffer | 120-byte input / 16-byte output |
| Supply Voltage (System) | 5 VDC; via data contacts |
| Current Consumption (5 V System Supply) | 55 mA |
| Isolation | 500 V system/field |
| Indicators | LED (A, B, D) green: Function, TxD, RxD |
| Connectable Conductor Materials | Copper |
| Connection Type | Inputs/Outputs |
| Solid Conductor | 0.08 / 2.5 mm² / 28 / 14 AWG |
| Ambient Temperature (Operation) | 0 / +55 °C |
| Housing Material | Polycarbonate; polyamide 6.6 |
| Dimensions | 12 x 100 x 70 mm |
