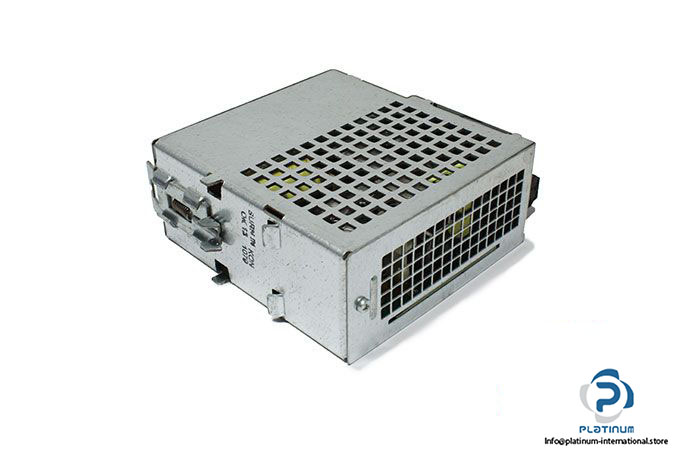

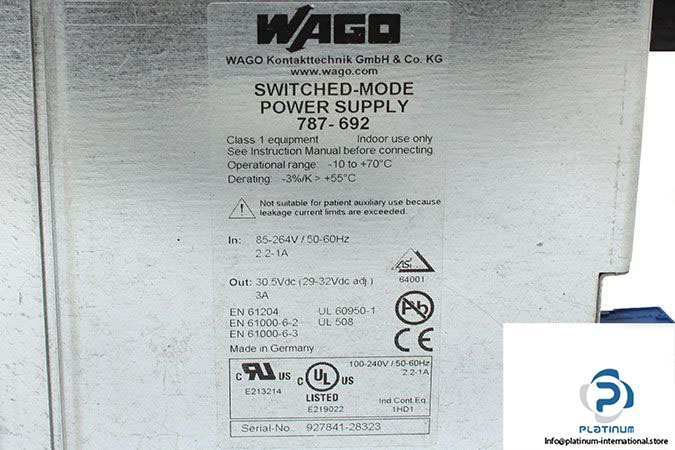

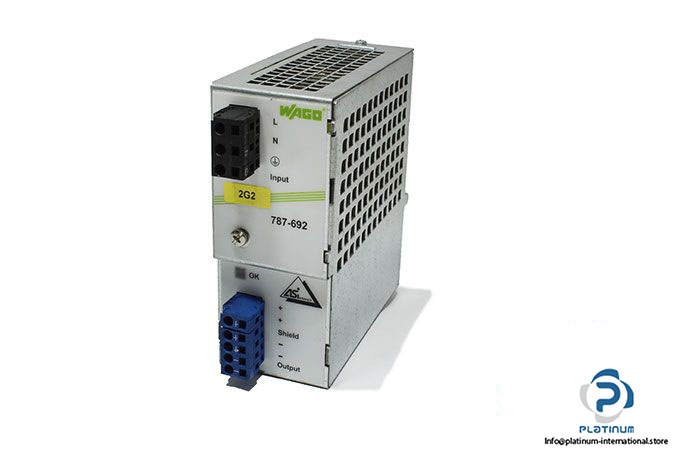

Wago 787-692 Switched-Mode Power Supply

Manufacturer: WAGO

Type: Switched-Mode Power Supply

Model: 787-692

Input:

Nominal Input Voltage: 100 … 240 VAC;  140 … 300 VDC

Input Voltage Range: 85 … 264 VAC; DC 120 … 300 VAC

Nominal Mains Frequency Range: 50 … 60 Hz

Input Current: ≤ 0.8 A (230 VAC); ≤ 1.4 A (115 VAC)

Discharge Current: ≤ 0.6 mA

Inrush Current: ≤ 50 A

Output:

Nominal Output Voltage: 30.5 VDC

Output Voltage Range: 26 … 33 VDC

Factory Preset: 30.5 VDC

Nominal Output Current: 3 A (30.5 VDC)

Pollution Degree: 2

Operating Temperature: -10 … 70 °C

Protection Class: IP20

Dimensions: 51 X 115 X 120 mm

Weight: 0.8 kg
