Wenglor HK12PD8 Reflex Sensor
مستعمل
متوفر3 وحداتجاهز للشحن
Reflex Sensor
The Wenglor HK12PD8 reflex sensor offers precise object detection with background suppression. Operating at 10“30 V DC with a sensing range of 120 mm, it is ideal for automation systems requiring high-frequency switching and IP67 protection.1203-pinAutomationBackgroundDetectionIndustrialIP67LightM8mmOutputPNPRangeRedReflexSensingSensorsuppression
جديد
متوفر
هذا المنتج متوفر أيضًا بحالة جديدة
عرض النسخة الجديدة ←
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة

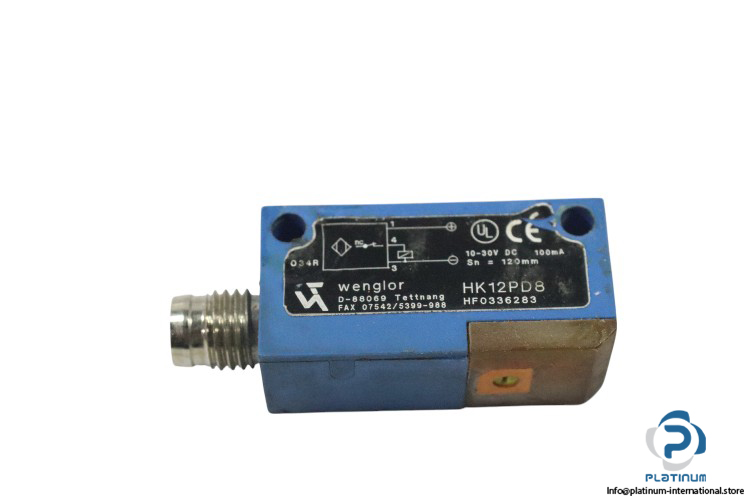

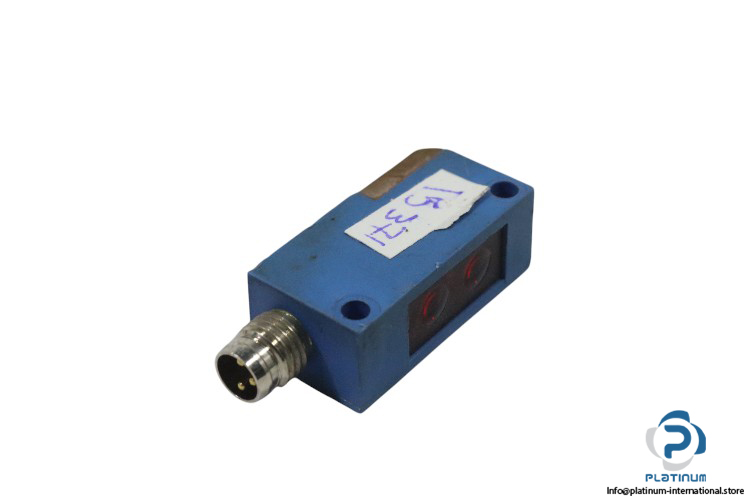

Wenglor HK12PD8 Reflex Sensor with Background Suppression
The Wenglor HK12PD8 is a high-performance reflex sensor with background suppression, engineered for accurate object detection and reliable switching in automated systems. Featuring red light technology and a compact, IP67-rated plastic housing, it provides consistent operation even in demanding industrial environments.
Manufacturer: Wenglor
Type: Reflex Sensor with Background Suppression
Model: HK12PD8
Technical Data:
- Supply Voltage: 10 / 30 V DC
- Rated Voltage: 10 / 30 V DC
- Current Consumption: 25 mA
- Switching Output Voltage Drop: 2.5 V
- PNP Switching Output / Switching Current: 100 mA
- Switching Frequency: 1,300 Hz
- Power: 6 W
- Sensing Range: 120 mm
- Setting Range: 18 / 120 mm
- Light Source: Red Light
- Connection: M8, 3-pin
- Degree of Protection: IP67
- Housing Material: Plastic
- Temperature Range: -25 / 60 °C
