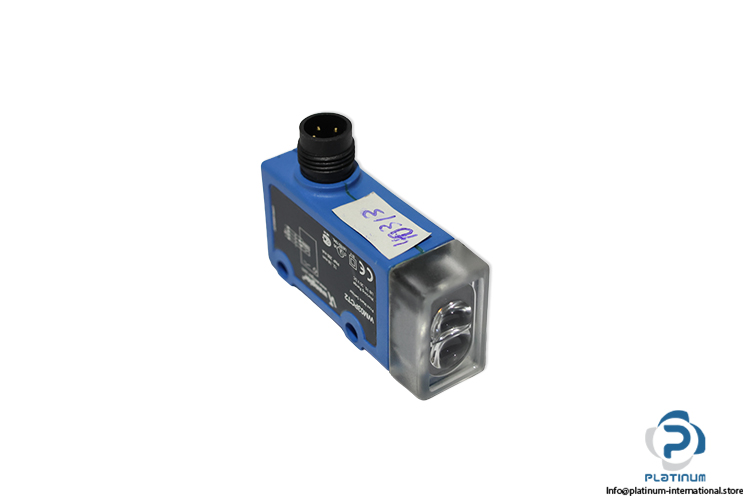

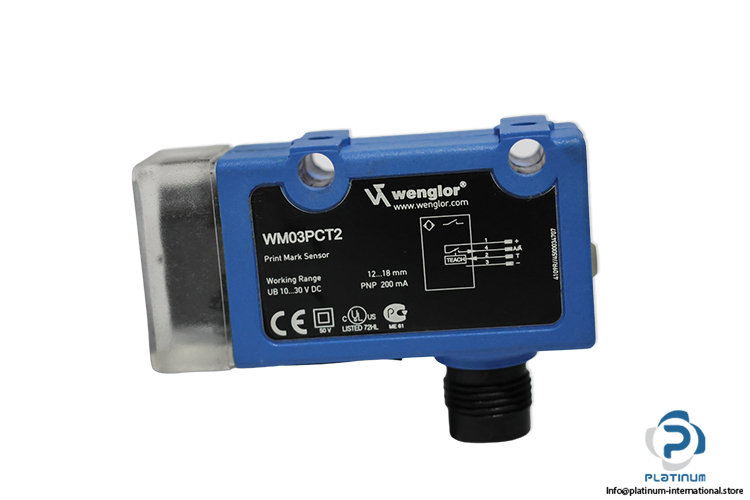

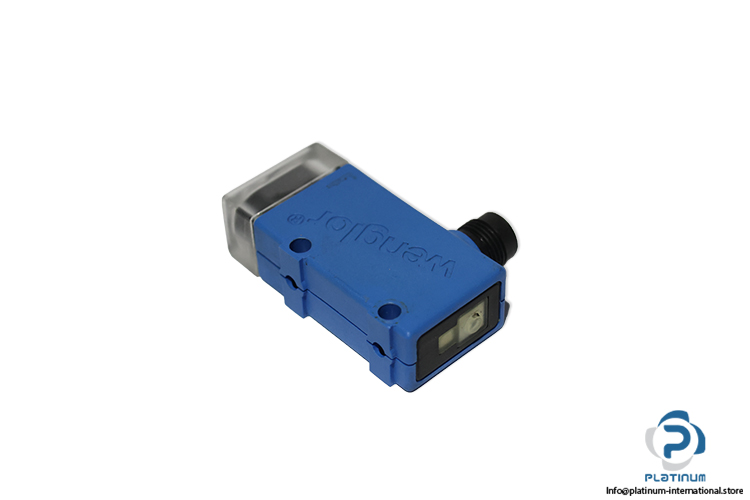

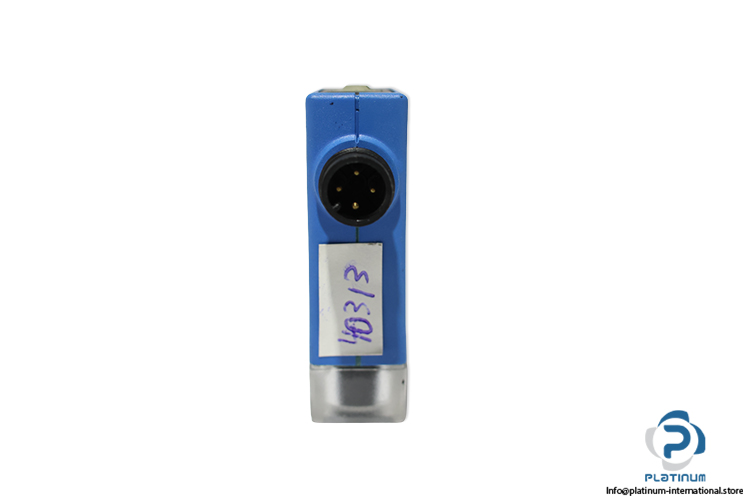

Wenglor WM03PCT2 Print Mark Reader
جديد
متوفر1 وحدةجاهز للشحن
129,99$
Print Mark Reader The WENGLOR WM03PCT2 is a compact print mark reader with white LED, 15 mm sensing distance, switchable PNP output, and IP67 protection for industrial automation.
مخزون ضخم
شحن عالمي
دعم من خبراء
جودة مضمونة
| Sensing Distance | 15 mm |
| Resolution (Gray Scale) | 20 |
| Light Source | LED, White |
| Wavelength | 400 … 700 nm |
| Supply Voltage | 10 … 30 V DC |
| Output | PNP Normally Open (NO) / Normally Closed (NC) Switchable |
| Light Spot Diameter | 1.5 x 2.5 mm |
| Connection | M12 Connector, 4-Pin |
| Protection Class | IP67 |
| Material | Plastic, PBT |
| Dimensions | 54.5 x 21.2 x 16 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1104004 |
| Weight | 0,03 |
