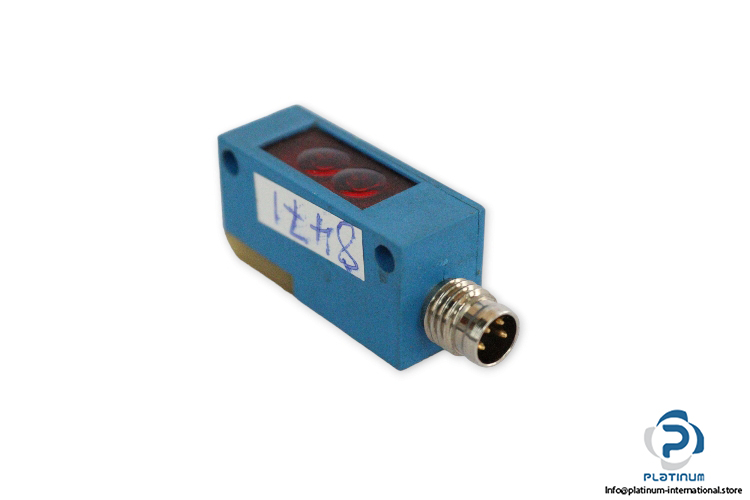

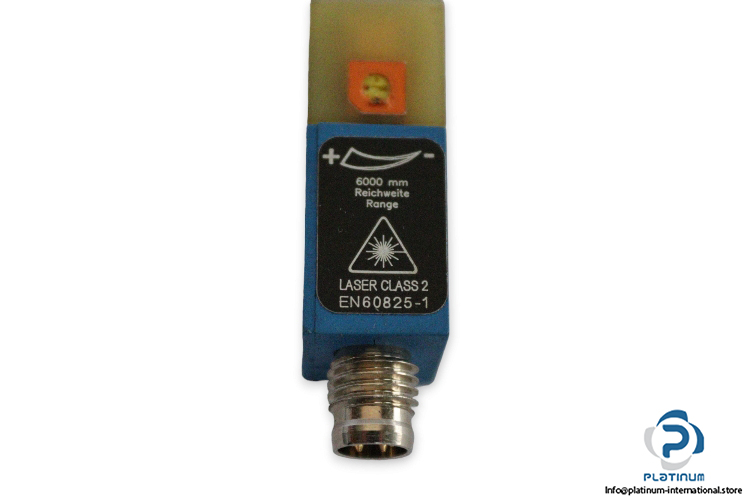

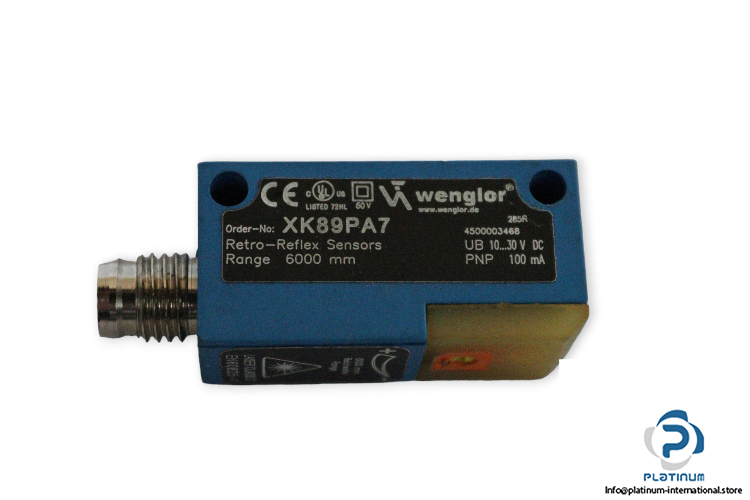

Wenglor XK89PA7 Retro-Reflex Sensor

Manufacturer: WENGLOR
Type: Retro-Reflex Sensor
Model: XK89PA7
Part No.: 4500003468

Range: 6,000 mm
Supply voltage: 10 … 30 V DC
Switching output: PNP
Output current max.: 100 mA
Reference Reflector/Reflector Foil: RQ100BA
Smallest Recognizable Part: 100 µm
Switching Hysteresis: 15 %
Light Source: Laser (red)
Wave length: 655 nm
Laser Class (EN 60825-1): 2
Max. Ambient Light: 10,000 Lux
Opening Angle: 2 °
Light Spot Diameter: 1 mm
Focus Distance: 150 … 300 mm
Outpot: NC Normally closed + NO Normally open
Connection: 4-pin
Dimensions: 32 x 16 x 12 mm
