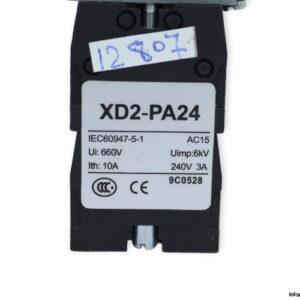

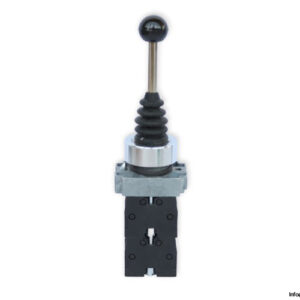

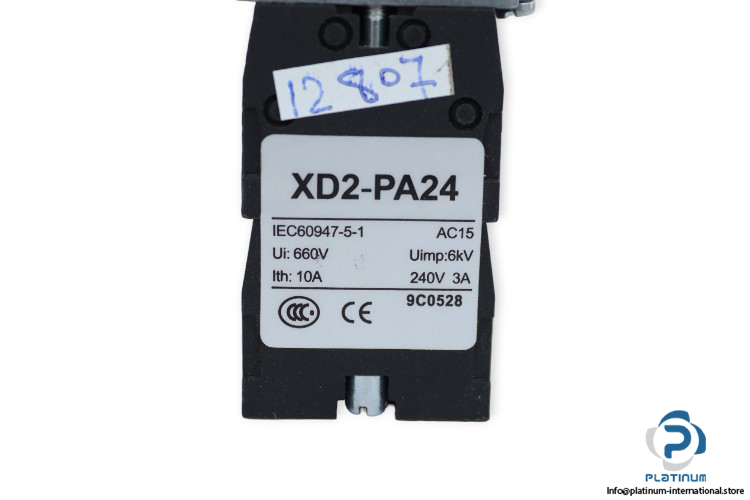

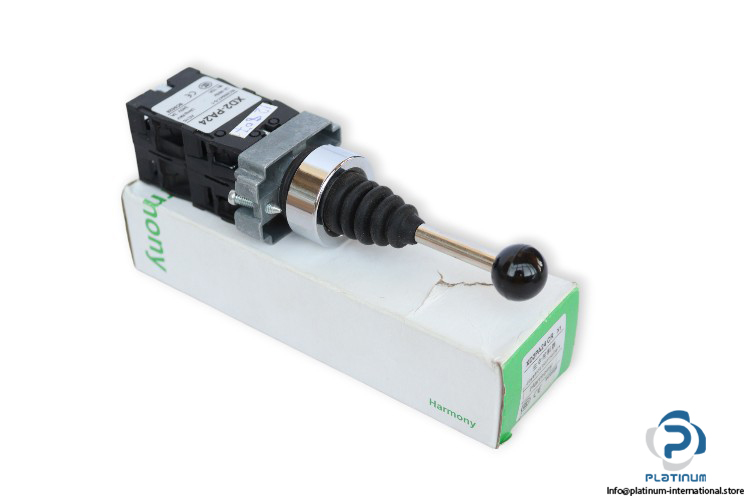

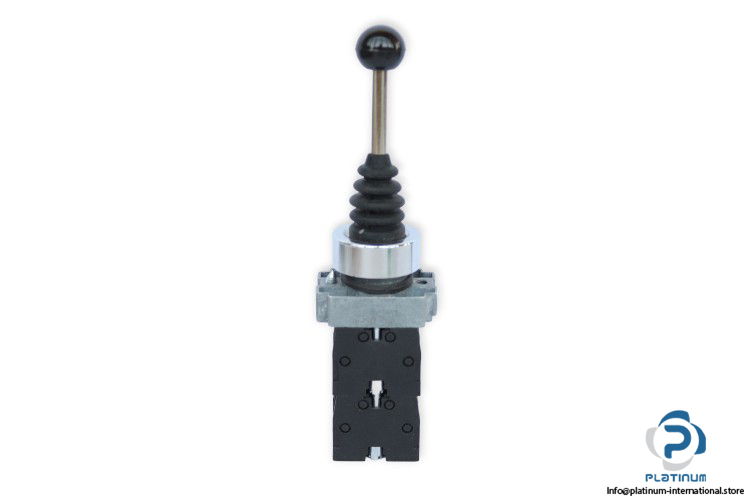

XD2-PA24 Joystick Controller

Type: Joystick Controller
Model: XD2PA24

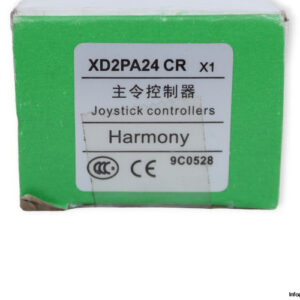

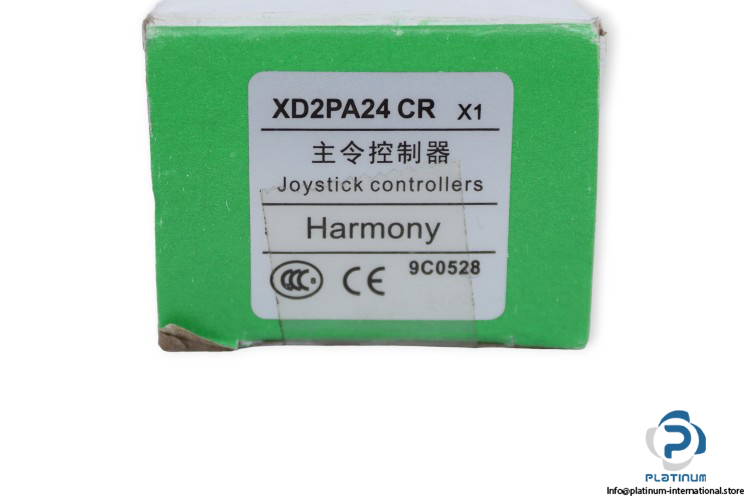

Part No.: XD2PA24 CR

Range of product: Harmony XD2
Device short name: XD2
Insulation voltage Ui: 660 V
Rated impulse with stand voltage Uimp: 6 kV
Thermal current Ith: 10 A
Switching rating AC-15: 240 V AC,3 A
Contacts type and composition: 1 NO for time delayed
Standard: IEC60947-5-1
Mounting diameter: 22 mm
Operator position information: All positions
Notch per direction: 1
Operator direction information: 4 directions
Short-circuit protection: 10 A
Bezel material: Chromium plated metal
Ambient air temperature for operation: -25 … 70 °C
Degree of protection: IP66
Height: 146 mm
Depth: 40 mm
