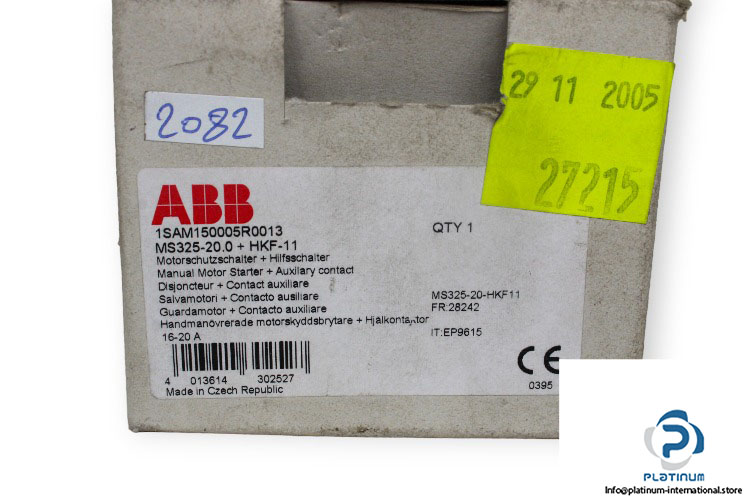

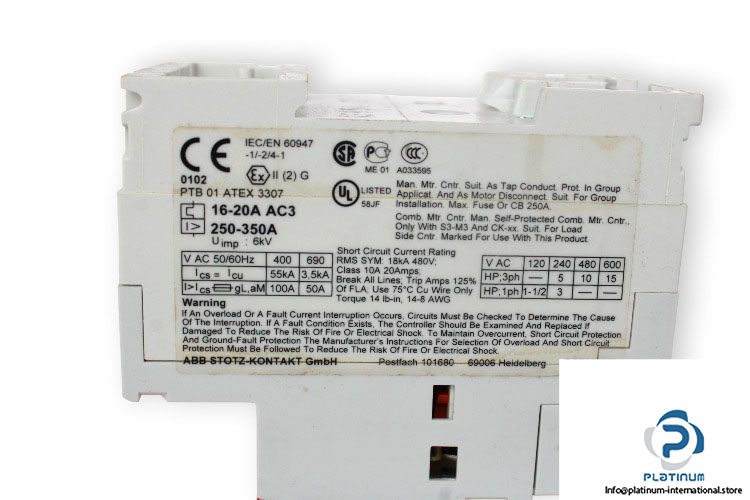

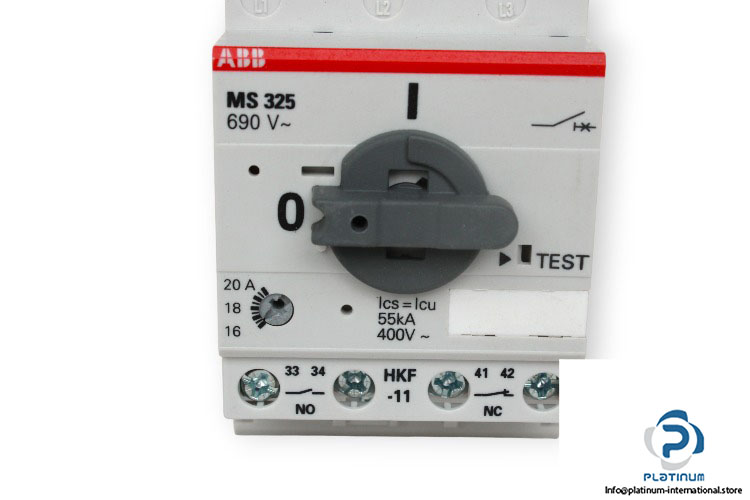

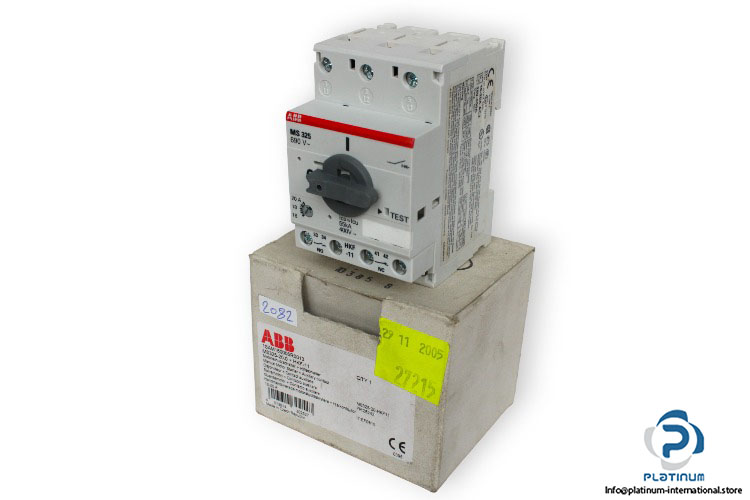

ABB MS 325 Motor Starter

Manufacturer: Abb

Type: Motor Starter

Model: MS 325 / MS325-20.0+HKF-11

Part No: 1SAM150005R0013

Rated Operational Voltage: Main Circuit 690 V AC, Main Circuit 440 V DC

Rated Operational Current (Ie): 20 A

Setting Range: 16 … 20 A

Rated Impulse Withstand Voltage (U_imp): Main Circuit 6 kV

Rated Insulation Voltage (Ui): 690 V

Conventional Free-air Thermal Current (Ith): Main Circuit 20 A

Power Loss: at Rated Operating Conditions per Pole 1.0 … 1.6 W

Number of Poles: 3

Mounted Auxiliary Contacts: 1 Normally open, 1 Normally closed

Terminal Type: Screw Terminals

Tightening Torque: Main Circuit 1.4 N·m

Actuator Type: Rotary Handle

Operating Temperature: -25 … +50 °C

Degree of protection: IP20

Dimensions: 54 x 87.5 x 75.5 mm
