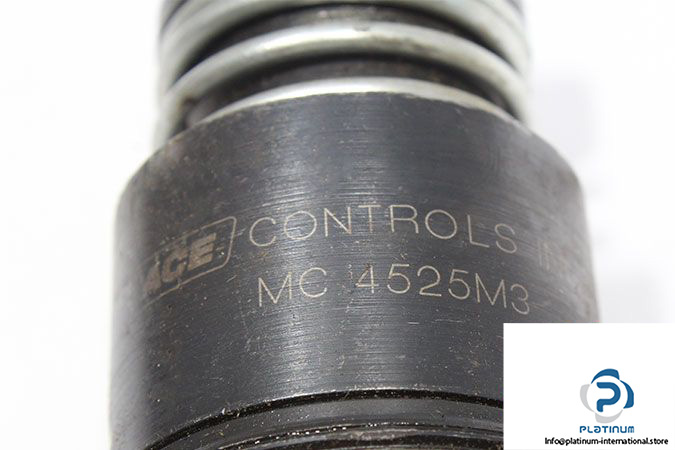

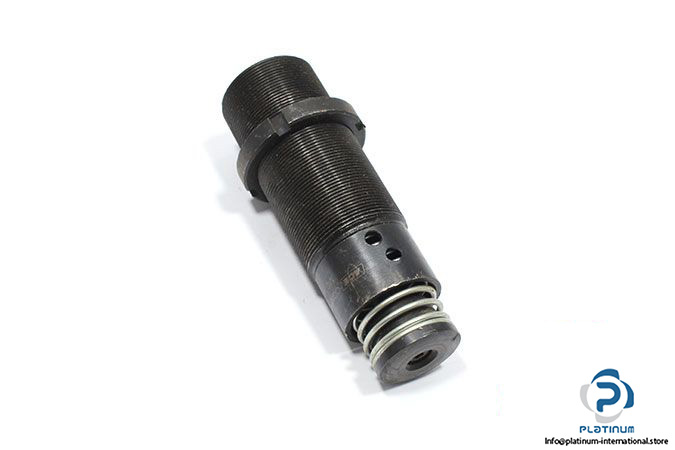

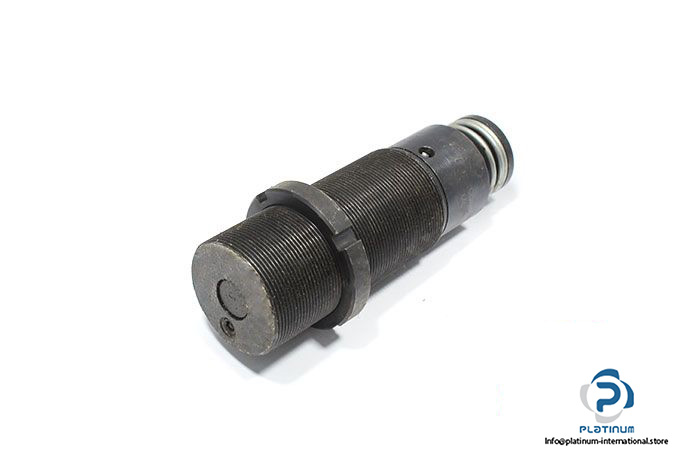

ACE Controls MC 4525M3 Shock Absorber

Manufacturer: ACE CONTROLS

Type: Shock Absorber

Model: MC 4525M3

Type: Self-compensating

Shock Absorber Size: Medium

Return Method: Spring

Type of installation: Threaded With Lock Nuts

Maximum Effective Weight: 2300 lbs

Energy Capacity: 3000 lbs/Cycle

Housing Material: Steel

Stroke Length: 0.91 in

Piston Diameter: 35 mm

Total length: 145 mm

Diameter and Step for Threaded Surface: M45 x 1.5

Temperature Range: -10 ….. 80 ^°C
