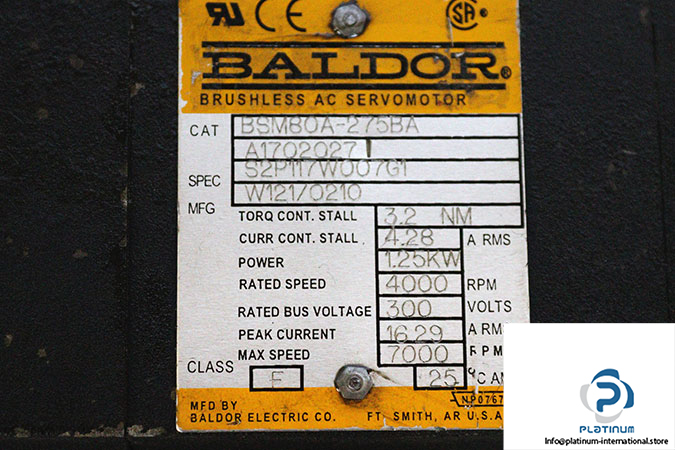

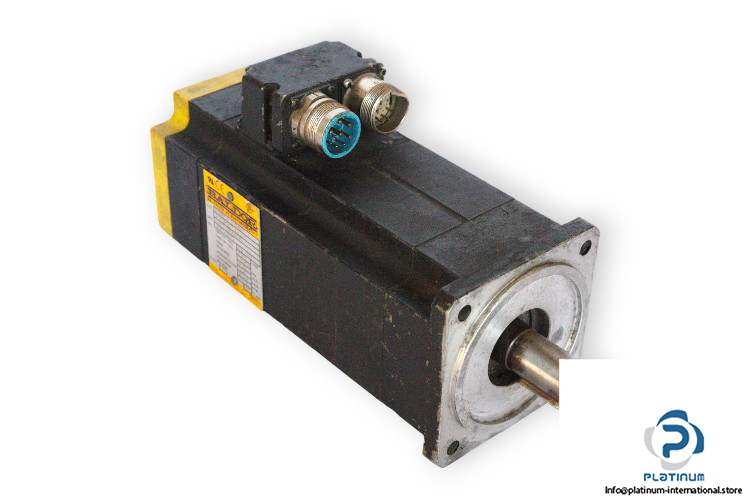

Baldor BSM80A-275BA Servo Motor

Manufacturer: Baldor
Type: Servo Motor
Model: BSM80A-275BA
S/No: S2P117W007G1
ID/NO: A17020271

Frame: 8 N
Motor Size: 2
Rated Bus Voltage: 300 V
Current Continuous Stall: 4.28 A
Torque Continuous Stall: 3.2 Nm
Power: 1.25 Kw
Rated Speed: 4000 Rpm
Peak Current: 1629 A
Max Speed: 7000 Rpm
Rated Temperature: 25 °C
Protection Class: Class F
Brake Holding Torque: 4.5 Nm
Brake voltage: 24 V
Brake Power: 17 W
Brake current: 0.71 A
Brake inertia: 0.125 Kg-cm²
