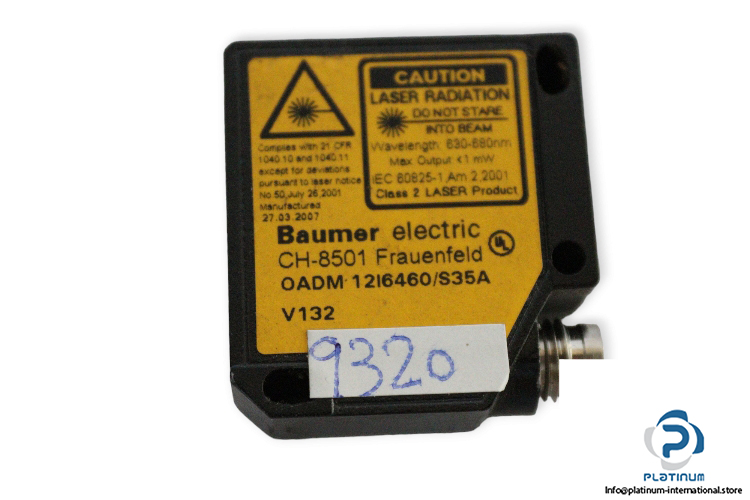

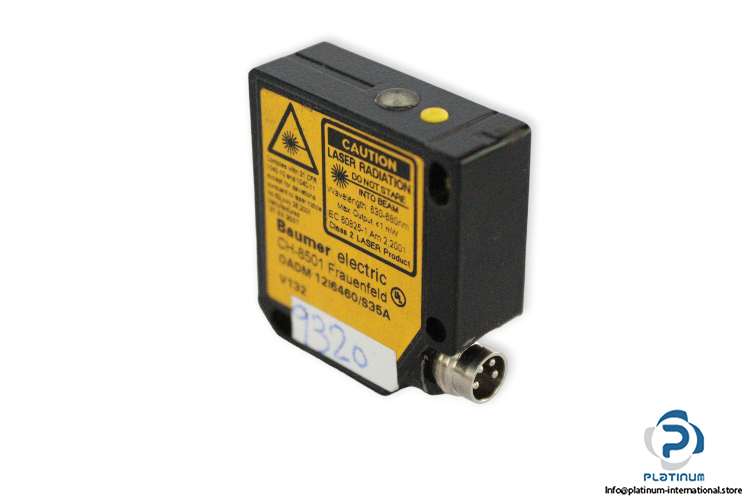

Baumer Oadm 12I6460/S35A Distance Sensor
Manufacturer: BAUMER
Type: Distance Sensor
Model: OADM 12I6460/S35A
Sensing Range: 6 … 120 mm
Beam Diameter: 0.9 … 0.5 mm
Laser Class: 2
Resolution: 2 … 120 µm
Beam Type: Point
Operating Voltage: 12 … 28 V DC
Output Circuit: Analog
Output Signal: 40 … 20 mA
Connector Type: M8 4-pin
Dimensions: 12.4 x 37 x 34.5 mm
Housing Material: Die-cast zinc
Operating Temperature: 0 … +50°C
Enclosure Rating: IP67
