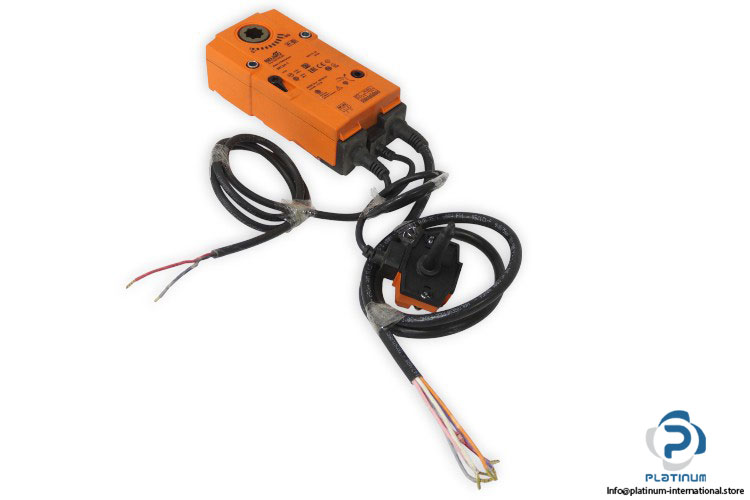

Belimo BFL24-T 1534026 Fire Damper Actuator
Gebraucht
Auf Lager10 EinheitenVersandbereit
Fire Damper Actuator
The Belimo BFL24-T actuator ensures reliable and fast control of fire and smoke dampers with 24 V AC/DC operation, IP54 protection, and mechanical position indication.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

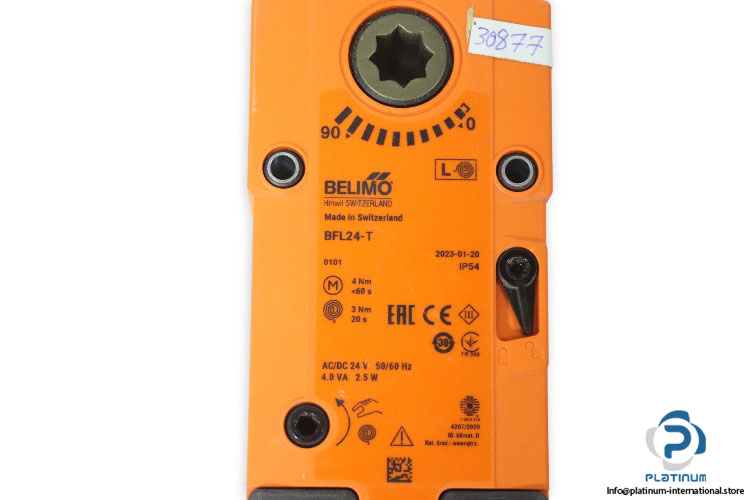

Belimo BFL24-T Fire Damper Actuator
The Belimo BFL24T Fire Damper Actuator is a high-performance actuator designed for reliable control of fire and smoke dampers in HVAC systems. It ensures safety, precision, and long service life, providing fast closing and consistent torque output for ventilation control.
Manufacturer: Belimo
Type: Fire Damper Actuator
Model: BFL24-T
Part No.: 1534026

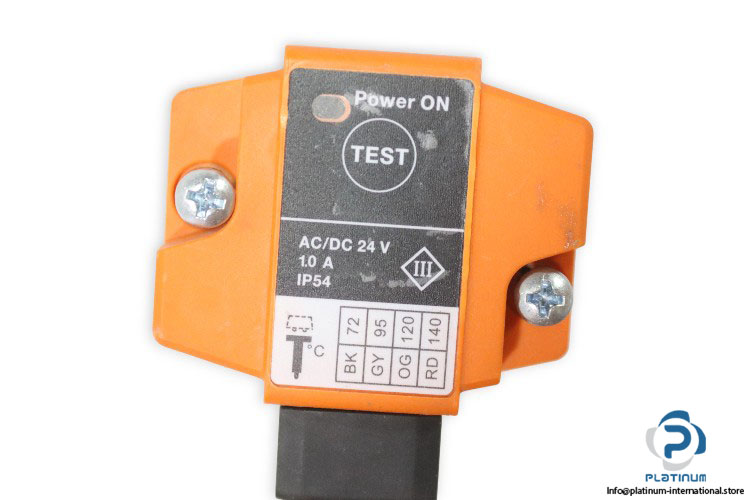

Temperature Monitoring Unit Dimensions:
| Rated Nominal Voltage | 24 V AC / DC |
| Power Consumption In Operation | 2.5 W |
| Power Consumption For Wire Sizing | 4 VA |
| Frequency | 50 / 60 Hz |
| Auxiliary Contact Switch | 2 SPDT 2 Changeover (CO) |
| Switching Capacity Auxiliary Switch | 250 V AC, 3 (0.5) A |
| Switching Points Auxiliary Switch | 5° / 80° |
| Running Time Motor | Open 90 s, Close 15 s |
| Angle of Rotation Max. | 90° |
| Position Indication | Mechanical, Pluggable |
| Protection Class | IP54 |
| Ambient Temperature | -30 / 55 °C |
| Dimensions | 160 x 80 x 48 mm |
| Diameter | 58 mm |
| Probe Length | 65 mm |
| Total Length | 94 mm |
