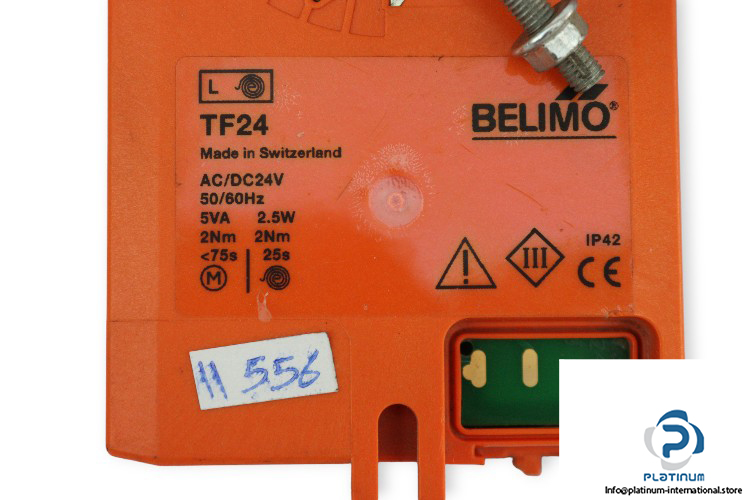

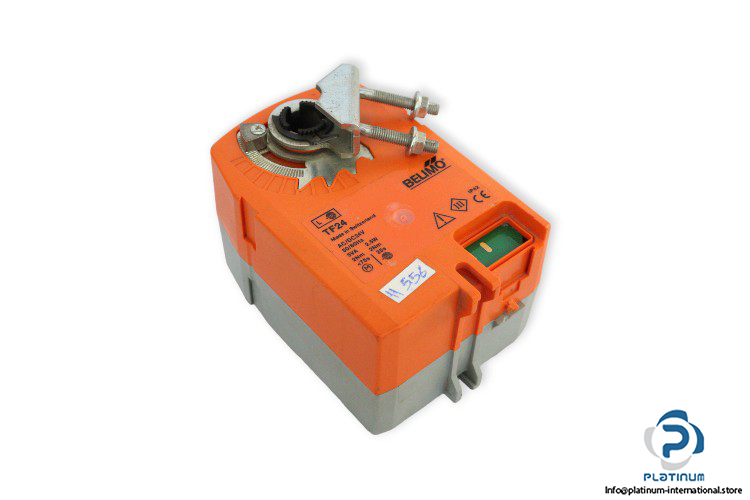

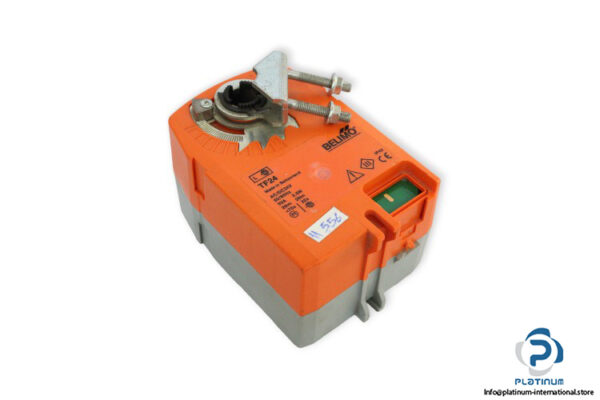

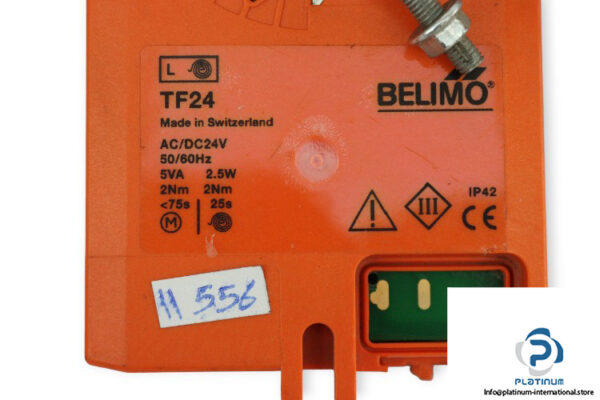

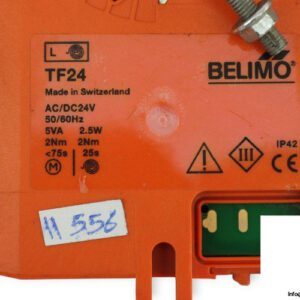

Belimo TF24 Rotary Actuator

Manufacturer: BELIMO
Type: Rotary Actuator
Model: TF24

Rated Voltage: 24 V AC / DC
Power Consumption (Running): 2.5 W
Power Consumption (Holding): 1.5 W
Power Consumption for Wire Sizing: 5 VA
Torque: 2.5 Nm
Frequency: 50 … 60 Hz
Direction of Motion (Motor, Fail-Safe): Selectable By Mounting L / R
Angle of Rotation: 95°
Control Type: Open / Close
Running Time (Motor): 75 s / 90°
Running Time (Fail-Safe): 25 s / 90°
Connection Type: Cable 1 m, 2x 0.75 mm²
Protection Class: IP42
Ambient Temperature: -30 … 50 °C
Dimensions: 104 x 77 x 61 mm
