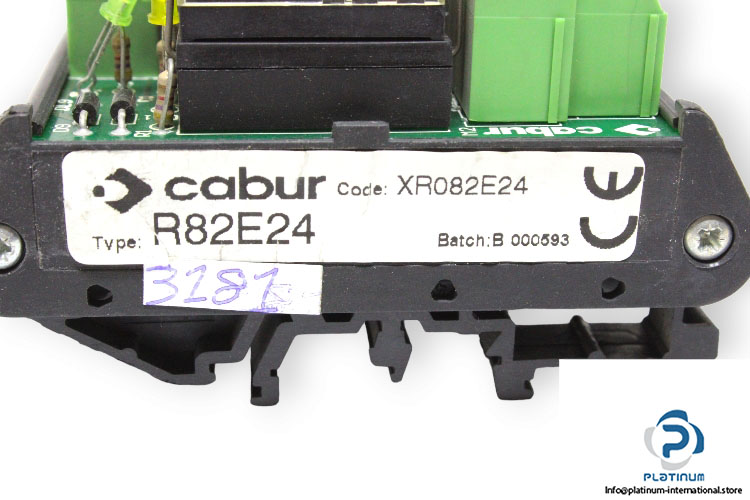

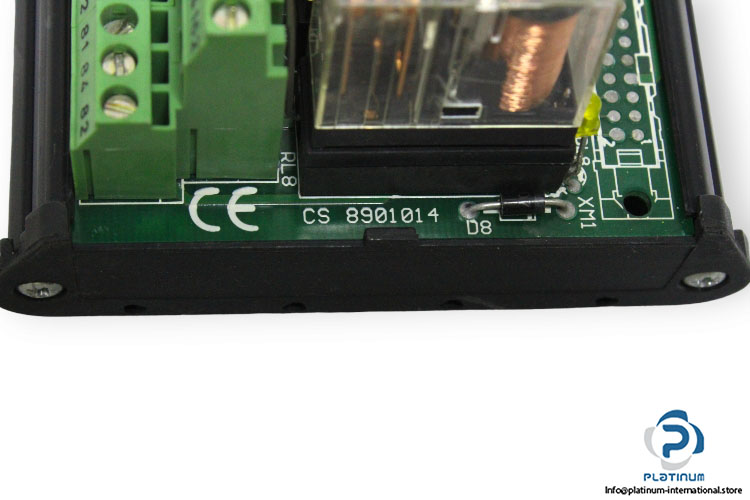

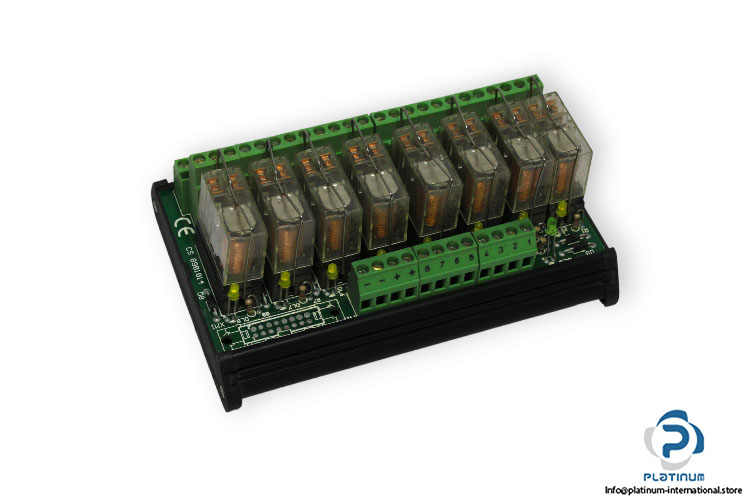

Cabur R82E24 Relay Module

Manufacture: Cabur
Type: Relay Module
Model: R82E24
Code No.: XR082E24

Input rated Voltage: 24 Vdc ±10%
Current consumption: 22 mA ±10%
Turn ON time: 10 ms
Turn OFF time: 5 ms
Connection type: 2.5 mm² screw type and 16 poles connector
No. of Input channels: 8 pluggable
Output:
Contact type: DPDT, 2 form C, AgSnO2
Nominal current: 10 A (250 V AC)
Operating temperature range: -20 … +70°C
Protection degree: IP 00
Housing material: UL94V-0 plastic material
Dimensions: 137 x 93 x 75 mm
