Cabur TE.10/O Terminal Block
Neu
Auf Lager22 EinheitenVersandbereit
Erdungsklemmenblock CABUR TE.10/O für sichere Erdungsanschlüsse, unterstützt Drähte von 0,5 bis 16 mm² mit explosionsgeschütztem Design für industrielle elektrische Schaltschränke und Steuerungssysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

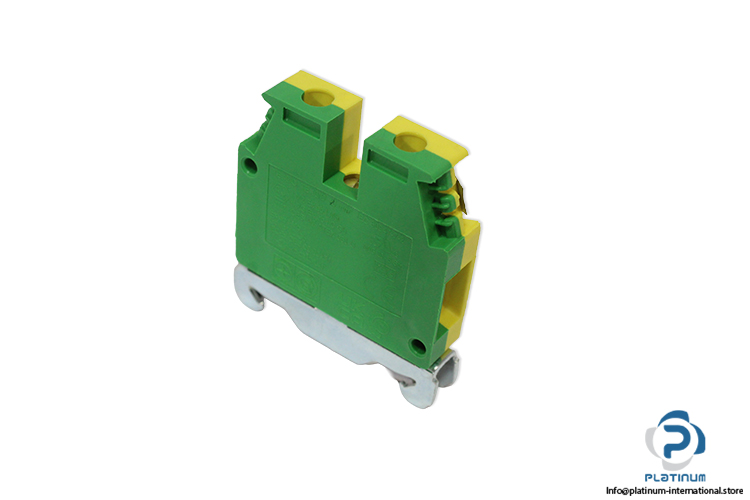

CABUR TE.10/O Earth Terminal Block
The CABUR TE.10/O earth terminal block is designed for secure grounding connections in electrical panels and industrial control systems. It provides reliable conductor clamping, stable electrical contact, and durable performance for grounding applications in automation and power distribution installations.
Manufacturer: CABUR
Type: Earth Terminal Block
Model: TE.10/O
| Rated Cross-Section | 10 mm² |
| Connecting Capacity Flexible Wire | 0,5 ÷ 16 mm² |
| Connecting Capacity Rigid Wire | 0,5 ÷ 16 mm² |
| Wire With Ferrule “ Ferrule Type | 10 “ WP100/21 |
| Tightening Torque Value (UL) | 1,2 / 1,9 Nm |
| Dimensions | 56 / 44 / 10 mm |
| Rated Impulse Withstand Voltage / Pollution Degree | 8 kV / 3 |
| Insulation Stripping Length | 13 mm |
| Protection | Explosion Proof |
