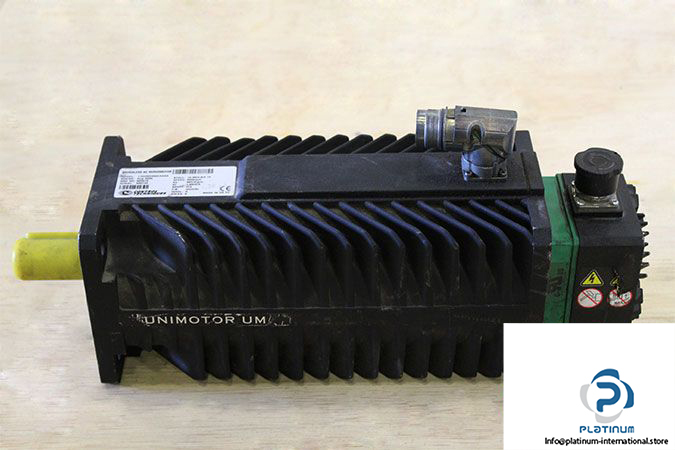

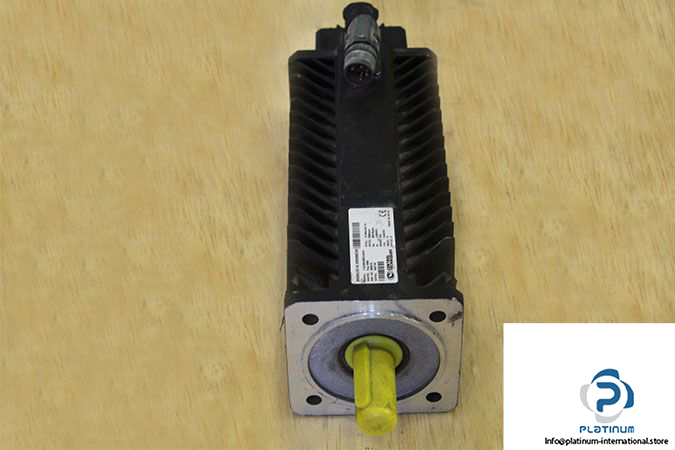

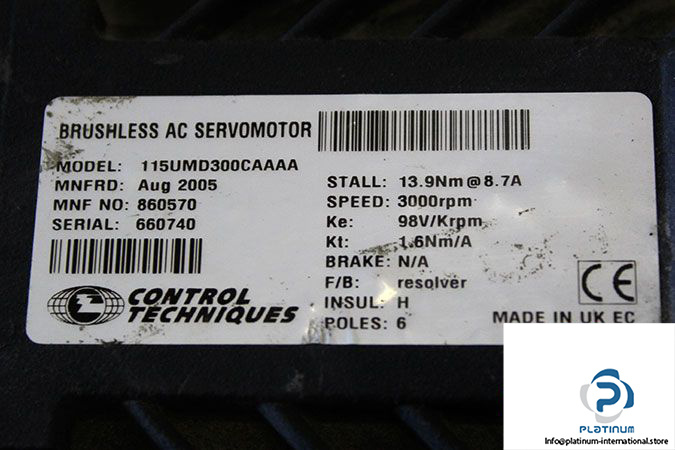

Control Techniques 115UMD300CAAAA Brushless AC Servo Motor

Manufacturer: CONTROL TECHNIQUES / EMERSON

Type: BRUSHLESS AC SERVO MOTOR

Model: 115UMD300CAAAA

MRN: 860570

Frame Size: 115

Motor Type: For Unidrive

Stall Current: 8.7 Arms

Voltage Constant: 98 V/Krpm

Rated Speed: 3000 Revolution Per Minute (rpm)

Stall Torque: 13.9 Nm

Constant Torque: 1.6 Nm/A

Brake: Not Fitted (Std) (N/A)

Poles: 6

Resolver: F/B

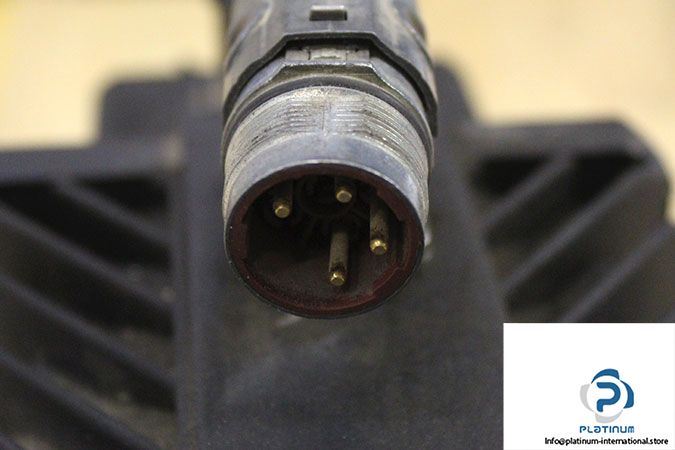

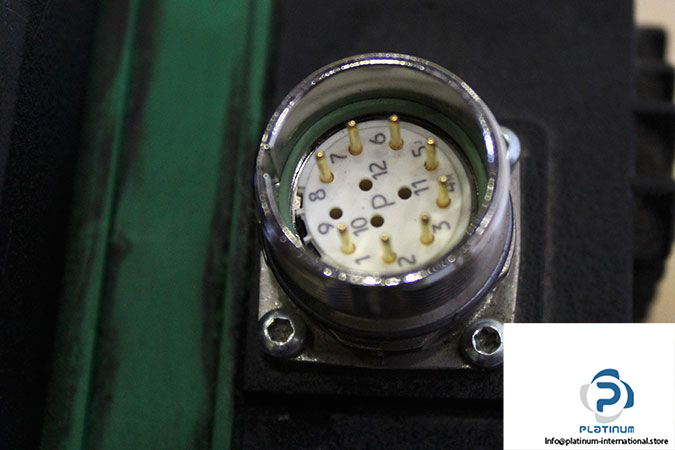

Connection Type: Connector (Std)

Weight: 11.30 kg
