Data Logic DPS9000-14D Decoder With Serial Interface Module
Gebraucht
Auf Lager1 EinheitVersandbereit
DECODER WITH SERIAL INTERFACE MODULE
DATA LOGIC DPS9000-14D from the DATAPLUS 9000 family supports optic pens, badge readers, handheld CCD and laser scanners with primary RS232/RS422/RS485 and auxiliary TTL“RS232 interfaces, 110“19,200 baud, and a 2×16 LCD display.1“10100192002x1659000ANDBadgeBaudBeeperCTSDataDataplusDecoderDisplayDLS2000DPS9000-14DDTRF30HandheInterfaceLCDLEDLogicmAModuleOpticP10P51PenReaderRS232RS422RS485SerialtoTTLVDCWithXoffXON
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

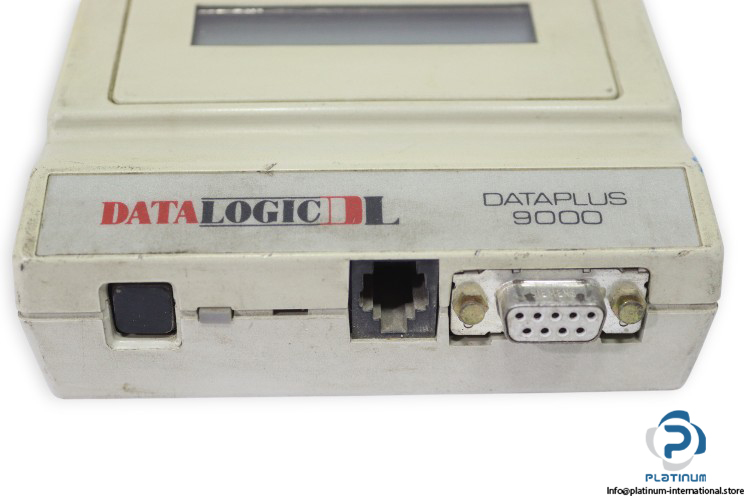

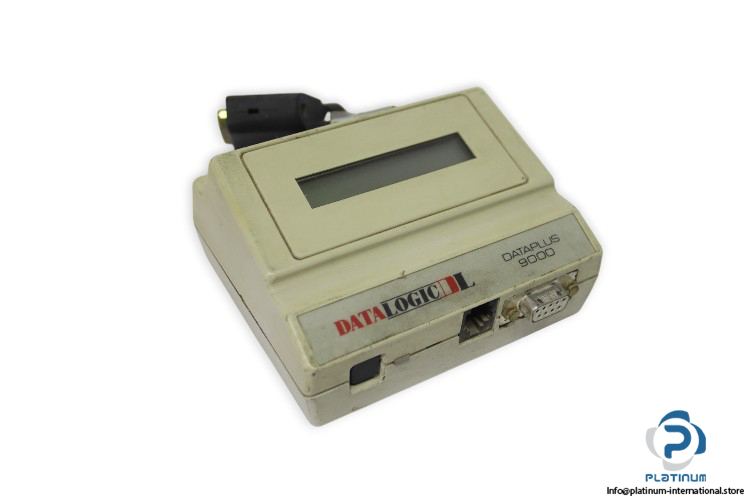

DATA LOGIC DPS9000-14D DECODER WITH SERIAL INTERFACE MODULE
The DATA LOGIC DATAPLUS 9000 DPS9000-14D is a versatile decoder module designed to connect a wide range of readers”optic pens, badge readers, handheld CCD and laser scanners”via robust serial interfaces for dependable data capture in industrial and logistics environments.

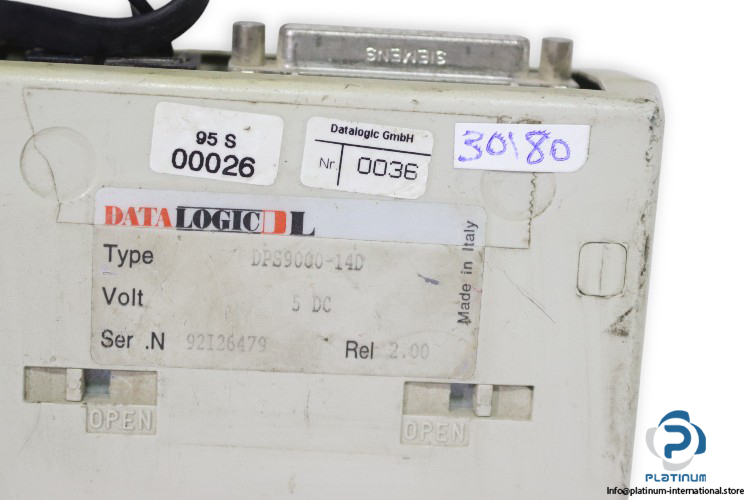

Manufacturer: DATA LOGIC
Type: Decoder with serial interface module
Family: DATAPLUS 9000
MRN: DPS9000-14D
MANUFACTURER NO; 0036 / 00026
SN: 92126479
| Power Supply | +5 Vdc |
| Power Consumption | 100 mA (without readers) |
| Supported Readers | Optic Pens P10, P51; Badge readers F30, DLS2000; Hand held œCCD readers: DL65/DL80, DLC60XX-M, DLC7070-M; Hand held laser scanners: DL910, DL910LR, DLL501X-M, DLL601X-M; Readers with pen emulation output; Magnetic readers (standard track 1/2/3 ISO 3554 75 bpi) |
| Interfaces | Primary EIA RS232 / EIA RS422 / EIA RS485; Auxiliary TTL “ EIA RS232 |
| Baud Rate | 110 to 19,200 bauds |
| Transmission Protocol | Hardware (CTS/DTR); Software (XON/XOFF) |
| Indicators | LED and beeper with variable tone and volume |
| Display | 2 lines by 16 characters LCD (DPS9000-14D) |
