Sensors & Measurement Sensors

Data Logic DPS9000-14D Decoder With Serial Interface Module

data-logic-dps9000-14d-decoder-with-serial-interface-module(used)
data-logic-dps9000-14d-decoder-with-serial-interface-module(used)-1
data-logic-dps9000-14d-decoder-with-serial-interface-module(used)-3
Usado
Em estoque1 unidadePronto para envio

DECODER WITH SERIAL INTERFACE MODULE

DATA LOGIC DPS9000-14D from the DATAPLUS 9000 family supports optic pens, badge readers, handheld CCD and laser scanners with primary RS232/RS422/RS485 and auxiliary TTL“RS232 interfaces, 110“19,200 baud, and a 2×16 LCD display.

Fabricante
DATA LOGIC
SKU
1074708
Categoria
Sensors
Condição
Usado
1“10100192002x1659000ANDBadgeBaudBeeperCTSDataDataplusDecoderDisplayDLS2000DPS9000-14DDTRF30HandheInterfaceLCDLEDLogicmAModuleOpticP10P51PenReaderRS232RS422RS485SerialtoTTLVDCWithXoffXON
Compartilhar
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

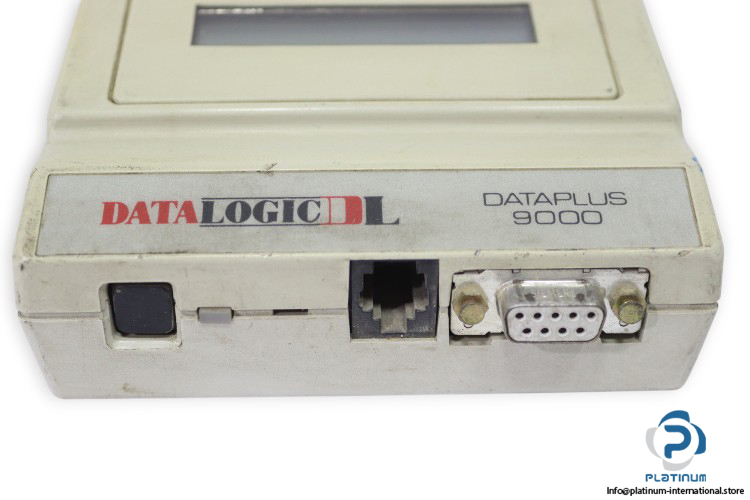

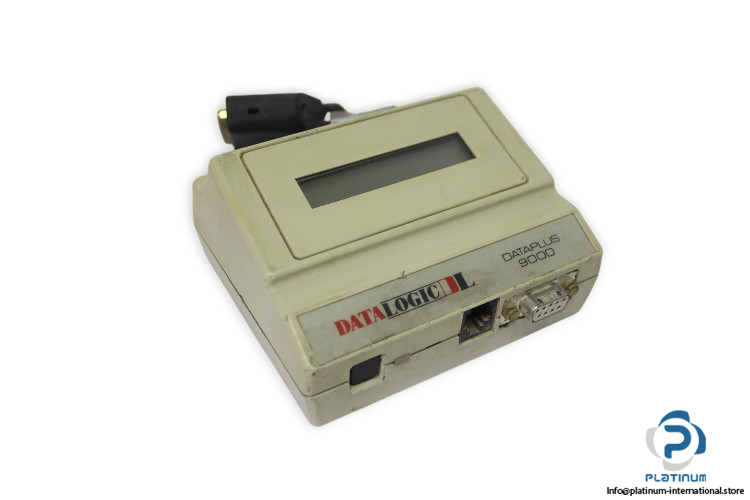

DATA LOGIC DPS9000-14D DECODER WITH SERIAL INTERFACE MODULE

The DATA LOGIC DATAPLUS 9000 DPS9000-14D is a versatile decoder module designed to connect a wide range of readers”optic pens, badge readers, handheld CCD and laser scanners”via robust serial interfaces for dependable data capture in industrial and logistics environments.

Manufacturer: DATA LOGIC

Type: Decoder with serial interface module

Family: DATAPLUS 9000

MRN: DPS9000-14D

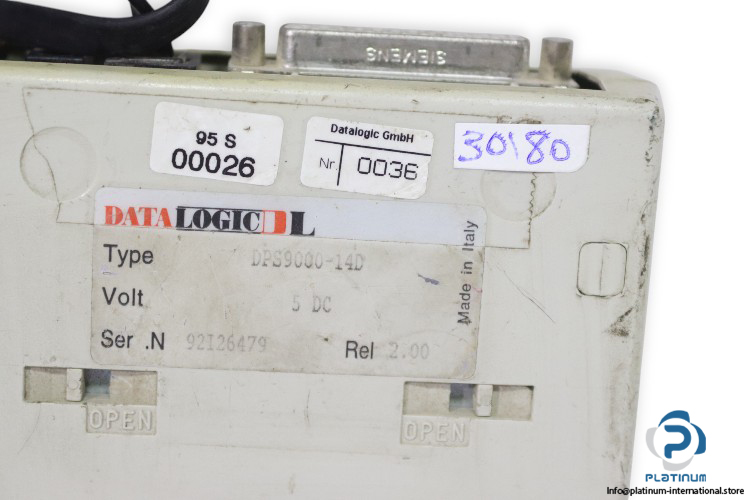

MANUFACTURER NO; 0036 / 00026

SN: 92126479

Power Supply+5 Vdc
Power Consumption100 mA (without readers)
Supported ReadersOptic Pens P10, P51; Badge readers F30, DLS2000; Hand held œCCD readers: DL65/DL80, DLC60XX-M, DLC7070-M; Hand held laser scanners: DL910, DL910LR, DLL501X-M, DLL601X-M; Readers with pen emulation output; Magnetic readers (standard track 1/2/3 ISO 3554 75 bpi)
InterfacesPrimary EIA RS232 / EIA RS422 / EIA RS485; Auxiliary TTL “ EIA RS232
Baud Rate110 to 19,200 bauds
Transmission ProtocolHardware (CTS/DTR); Software (XON/XOFF)
IndicatorsLED and beeper with variable tone and volume
Display2 lines by 16 characters LCD (DPS9000-14D)

Mais de DATA LOGIC

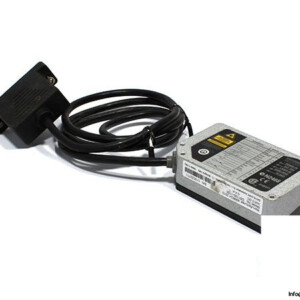

Datalogic DS1100-1100 Laser BAR Code Scanner
Novo

DATA LOGIC

Datalogic DS1100-1100 Laser BAR Code Scanner

SKU: 995843

Qtd: 1

333,33$
Adicionar ao Carrinho
Data Logic DS45A Barcode Scanner
Usado

DATA LOGIC

Data Logic DS45A Barcode Scanner

SKU: 1033399

Qtd: 1

150,00$
Adicionar ao Carrinho
Datalogic S50-PH-5-G00-XG Through-Beam Photoelectric Sensor - Emitter
Usado

DATA LOGIC

Datalogic S50-PH-5-G00-XG Through-Beam Photoelectric Sensor - Emitter

SKU: 995272

Qtd: 9

33,33$
Adicionar ao Carrinho
Datalogic DS1100-1100 Laser BAR Code Scanner
UsadoDisponível sob consulta

DATA LOGIC

Datalogic DS1100-1100 Laser BAR Code Scanner

SKU: 995295

Disponível sob consulta

266,66$
Data Logic RC 06 S Proximity Sensor
Usado

DATA LOGIC

Data Logic RC 06 S Proximity Sensor

SKU: 1074660

Qtd: 1

Disponível mediante cotação

Produtos Relacionados

NEC NL6448AC33-15 TFT Color LCD Module
NovoDisponível sob consulta

NEC NL6448AC33-15 TFT Color LCD Module

SKU: 978264

Disponível sob consulta

75,00$
Allen-Bradley 1756-OB32 Control Logix DC Output Module
Novo

ALLEN-BRADLEY

Allen-Bradley 1756-OB32 Control Logix DC Output Module

SKU: 968289

Qtd: 1

177,77$
Adicionar ao Carrinho
Phoenix Contact Mini MCR-SL-PT100-UI-NC Temperature Signal Conditioner
Novo

PHOENIX CONTACT

Phoenix Contact Mini MCR-SL-PT100-UI-NC Temperature Signal Conditioner

SKU: 980468

Qtd: 1

Disponível mediante cotação
Pilz C-P8-ZT Timer Module
Usado

Pilz C-P8-ZT Timer Module

SKU: 984131

Qtd: 1

Disponível mediante cotação
Allen-Bradley 2705-K11C1 Operator Interface
Usado

Allen-Bradley 2705-K11C1 Operator Interface

SKU: 989344

Qtd: 1

Disponível mediante cotação
Platinum International
Excedente, Novos & Usados - Sempre Confiáveis
DATA LOGIC SKU: 1074708
Data Logic DPS9000-14D Decoder With Serial Interface Module
Data Logic DPS9000-14D Decoder With Serial Interface Module
PreçoMediante Solicitação
Estoque1 Em estoque
FabricanteDATA LOGIC
CategoriaSensors
CondiçãoUsado
SKU1074708

DECODER WITH SERIAL INTERFACE MODULE

DATA LOGIC DPS9000-14D from the DATAPLUS 9000 family supports optic pens, badge readers, handheld CCD and laser scanners with primary RS232/RS422/RS485 and auxiliary TTL“RS232 interfaces, 110“19,200 baud, and a 2×16 LCD display.

Descrição

Power Supply+5 Vdc
Power Consumption100 mA (without readers)
Supported ReadersOptic Pens P10, P51; Badge readers F30, DLS2000; Hand held œCCD readers: DL65/DL80, DLC60XX-M, DLC7070-M; Hand held laser scanners: DL910, DL910LR, DLL501X-M, DLL601X-M; Readers with pen emulation output; Magnetic readers (standard track 1/2/3 ISO 3554 75 bpi)
InterfacesPrimary EIA RS232 / EIA RS422 / EIA RS485; Auxiliary TTL “ EIA RS232
Baud Rate110 to 19,200 bauds
Transmission ProtocolHardware (CTS/DTR); Software (XON/XOFF)
IndicatorsLED and beeper with variable tone and volume
Display2 lines by 16 characters LCD (DPS9000-14D)

Especificações Técnicas

Weight0,42 kg
ConditionUsed
ManufacturerDATA LOGIC
Shelf No.250803
Type of ProductDecoder with serial interface module
MNRDPS9000-14D
