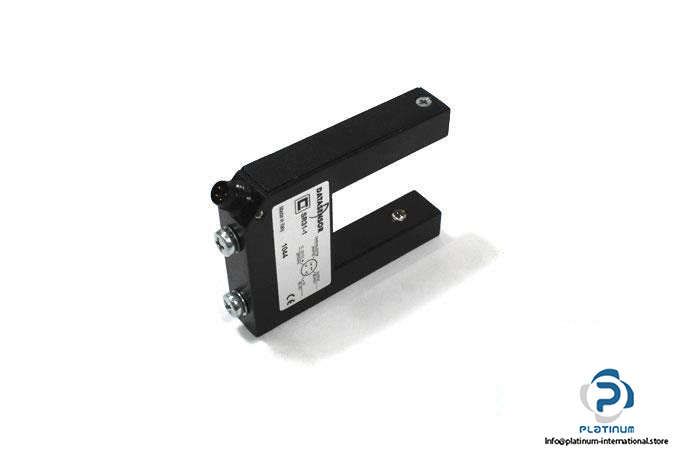

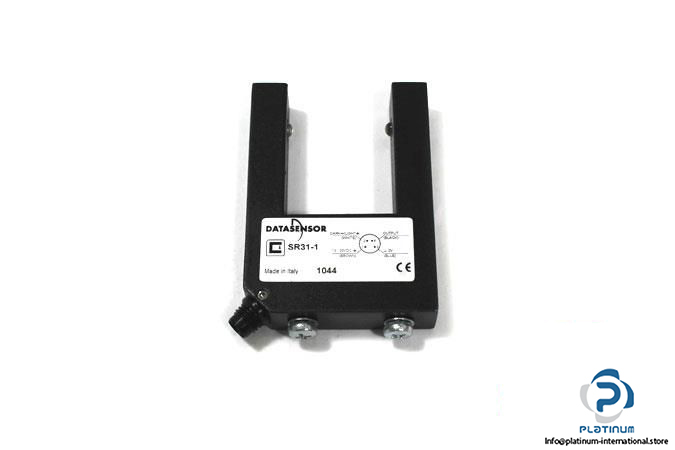

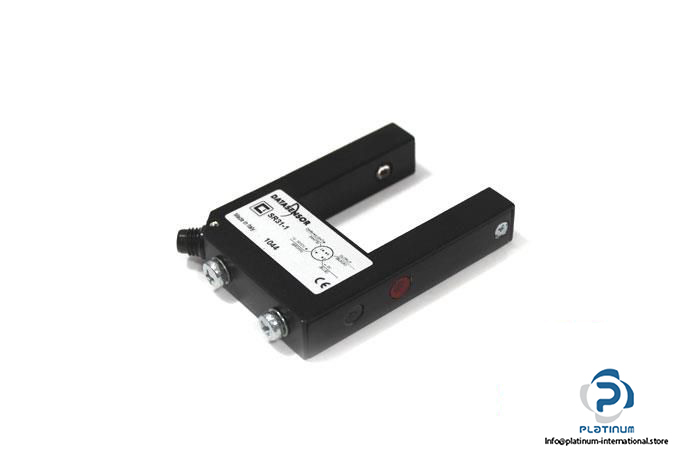

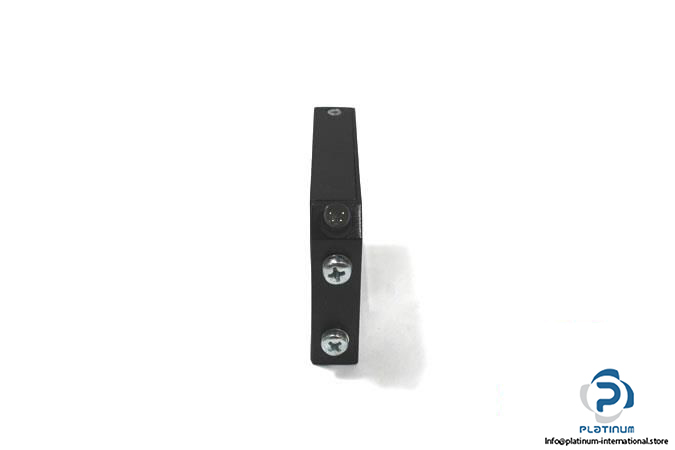

Datasensor SR31-1 Photoelectric Fork Sensor

Manufacturer: DATASENSOR DATALOGIC

Type:  PHOTOELECTRIC FORK SENSOR

Model: SR31-1

Slot width: 30 mm

Material width: 25 mm max.

Material width: 2 mm min.

Response time: 50 µs

Switching frequency: 10 kHz

Operating Voltage: 10 … 30 V DC

Ripple: 2V_pp

Load current max.: 200 mA

Electrical design: PNP

Switching output: Light /Dark switching

Type of light: Infrared LED 880nm

Adjustment: multi-turn sensitivity trimmer

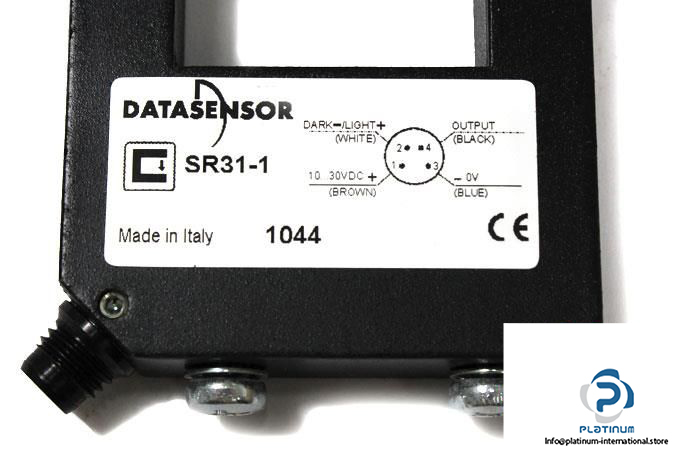

Connector type: M8 Connector, 4-pin

Enclosure rating: IP60

Ambient Operating temperature: -10 … 60°C

Dimensions: 70 x 50 x 13.5 mm

Weight: Approx. 100 g

Housing: Rectangular

Housing material: ZAMA

Lens material: Glass

Condition: New
