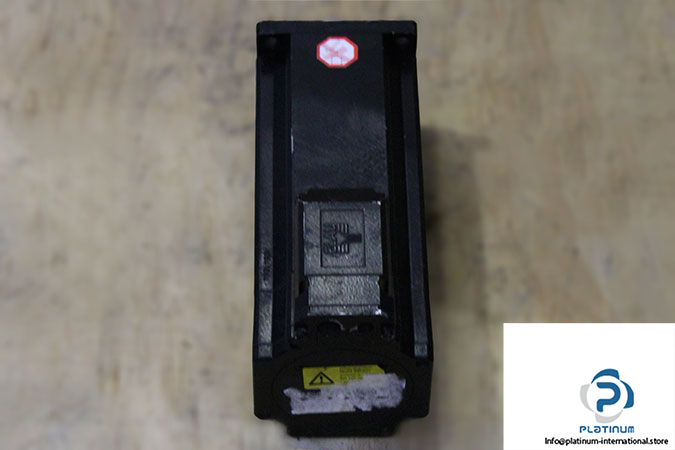

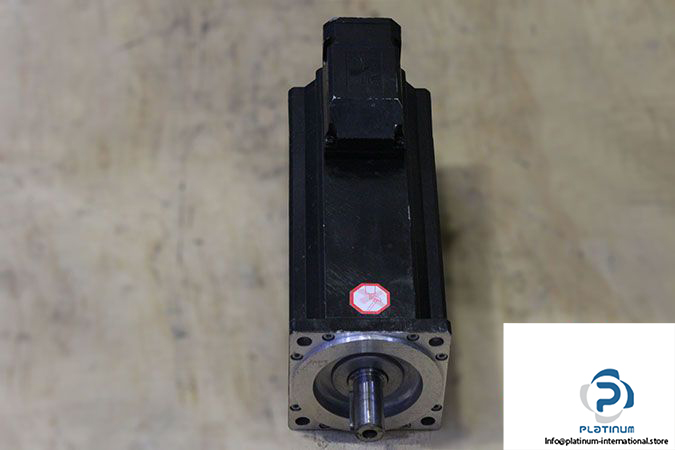

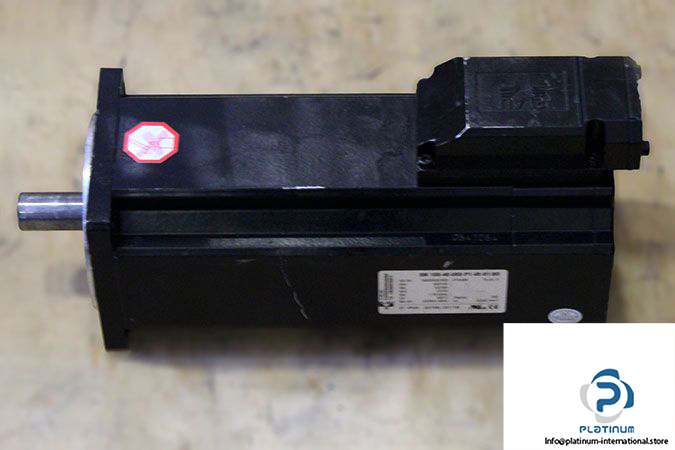

Elau SM 100-40-050-P1-45-S1-B0 Servo Motor

Manufacturer: ELAU AG / SCHNEIDER ELECTRIC

Type: SERVO MOTOR

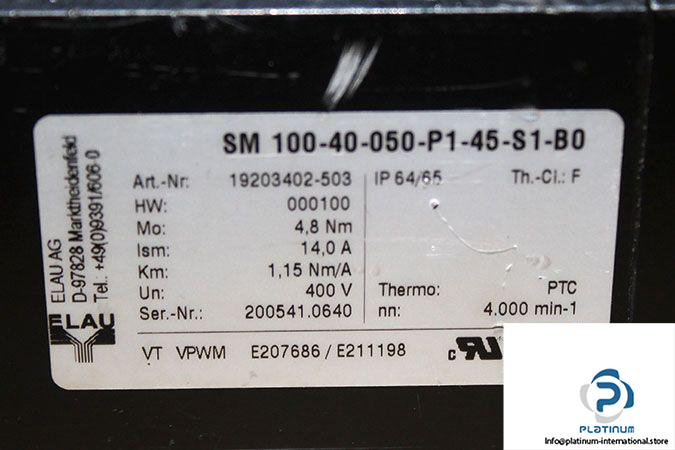

Model: SM 100-40-050-P1-45-S1-B0

Art. No: 19203402-503

Hardware Code: 000100

Rated Voltage: 400 V

Peak Motor Current (ISM): 14.0 A

Rated Speed: 4000 Revolution Per Minute (rpm)

Torque Constant of The Motor (KM): 1.15 Nm/A

Nominal Torque: 4.8 Nm

Flange Size: 100 mm

Insulation Class: F

Protection Class: IP 64/65

Weight: 7.3 kg
