Embraco EMT2117GK Compressor
Neu
Auf Anfrage verfügbar
Einphasiger Embraco EMT2117GK Kompressor für R-404A Systeme, entwickelt für effiziente Kühlung mit kompakter 1/4 PS Bauweise, 220-240 V Bewertung und robuster thermischer Leistung.
1/4220VCompactcompressorCoolingEmbracoEMT2117GKHPISO22lubricantmotorR-404ARefrigerationSingle-PhaseUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

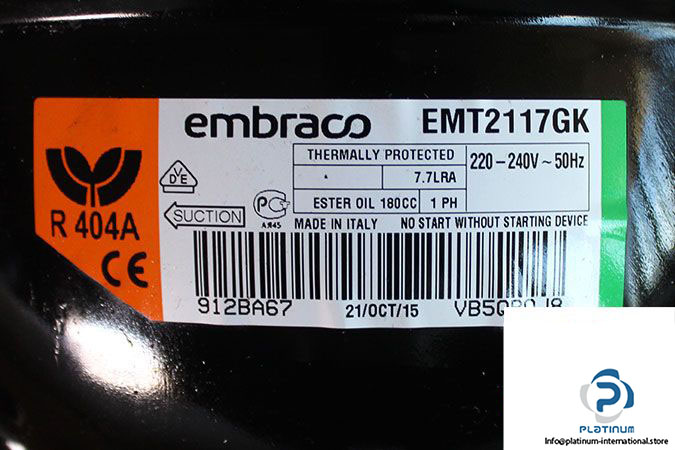

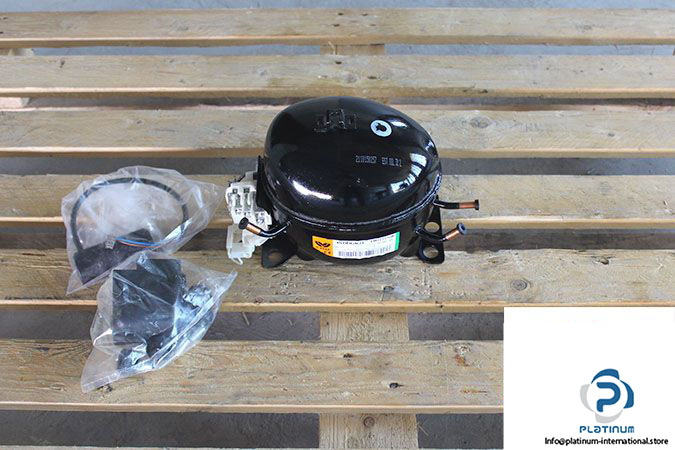

EMBRACO EMT2117GK COMPRESSOR
The Embraco EMT2117GK is a highly efficient single-phase compressor designed for use with R-404A refrigerant. Built to deliver optimal cooling performance, it features a compact design, quiet operation, and reliable engineering for commercial and industrial refrigeration systems.
Manufacturer: Embraco
Type: Compressor
Model: EMT2117GK
Engineering Nr.: 912BA67
Phase: 1~ Single Phase
| Horsepower [Hp] | 1/4 |
| Rated Voltage [V] | 220 to 240 |
| Displacement [cm³] | 4.5 |
| Bore [mm] | 21.0 |
| Stroke [mm] | 6.5 |
| Nitrogen Charge [kgf/cm²] | 0.2 to 0.3 |
| Max Condensing Pressure Operating [kgf/cm²] | 25.7 |
| Max Condensing Pressure Peak [kgf/cm²] | 28.7 |
| Evaporating Temperature Range [°C] | -40 to 10 |
| Maximum Winding Temperature [°C] | 130 |
| Frequency [Hz] | 50 |
| LRA | 7.7 A |
| Refrigerant | R-404A |
| Lubricant Charge [ml] | 180 |
| Lubricant Type/Viscosity | ESTER / ISO22 |
