Euchner NM11RBA-MC2069 Safety Switch

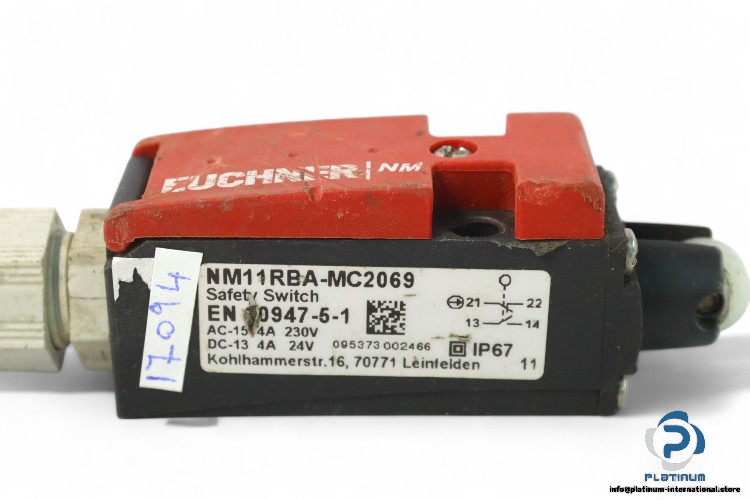

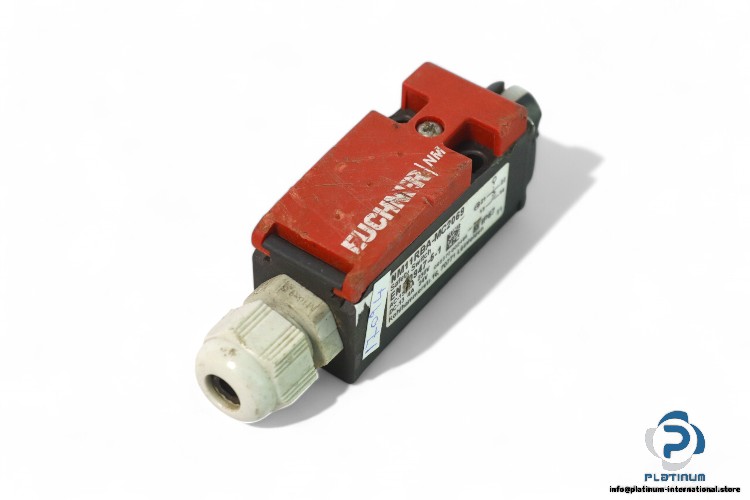

EUCHNER NM11RBA-MC2069 Safety Switch

The EUCHNER NM11RBA-MC2069 Safety Switch is a reliable safety device designed to ensure secure machine operations and prevent unauthorized access. With robust construction and precise switching technology, it is ideal for industrial safety applications.

• Category: Safety Devices
• Manufacturer: EUCHNER
• Type: SAFETY SWITCH
• Model: NM11RBA-MC2069
• Order No.: 095373
• Rated Insulation Voltage: 250 V
• Switching Voltage: min. at 10 mA, 12 V
• Switching Current: min. at 24 V, 1 mA
• Rated Impulse Withstand Voltage: 2.5 kV
• Short Circuit Protection: 4A Gg (IEC 60269-1)
• Utilization Category: AC-15: 4A 230V, DC-13: 4A 24V
• Connection Cross-Section: 0.34 … 1.5 mm²
• Contact: 1NO+1NC
• Rated Thermal Current (Ith): 4 A
• Approach Speed Max.: 60 m/min
• Connection: 1 x M16 x 1.5
• Actuating Force: 15 N
• Switching Principle: Slow-action switching contact
• Degree of Protection: IP67
• Housing Material: Reinforced thermoplastic
• Ambient Temperature: -20 … +80 °C

Engineered for precision and durability, the EUCHNER NM11RBA-MC2069 Safety Switch guarantees safe and consistent performance in demanding industrial environments.
