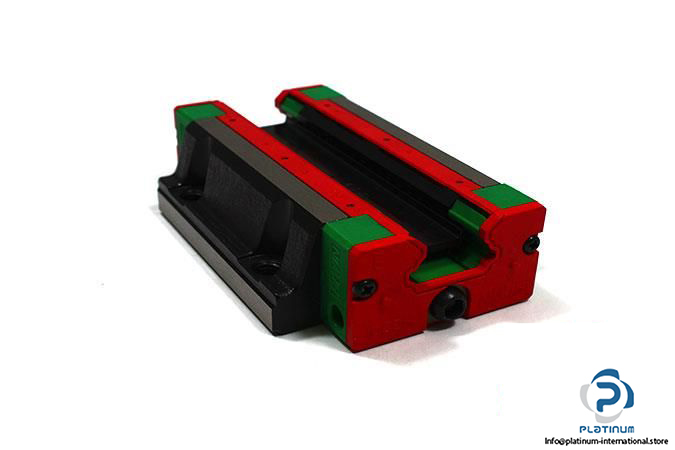

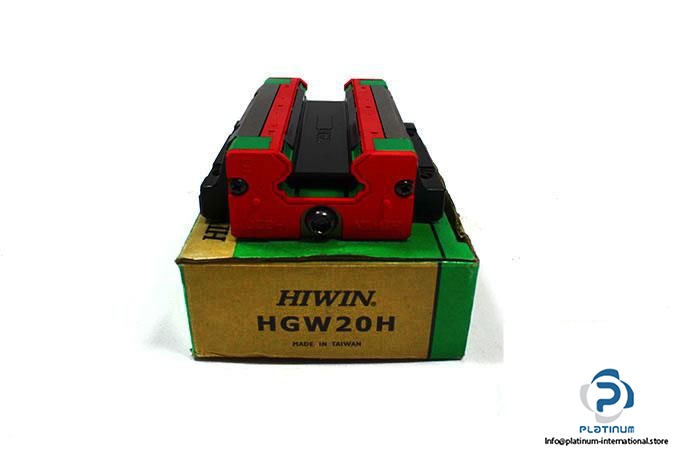

Hiwin HGW20HC Linear Guideway Block
Neu
Auf Lager50 EinheitenVersandbereit
74,29$
LINEAR GUIDEWAY BLOCK Hiwin HGW20HCC Linearführungsblock, 20 mm Größe, Flanschtyp, unterstützt Super-Schwerlasten mit hoher Genauigkeit und steifer Montageflexibilität oben oder unten.
20bearingBlockCNCFlangeGuideGuidewayHeavyHGW20HCCHiwinIndustrialLinearLoadM5mmMotionPrecisionrailSuper
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

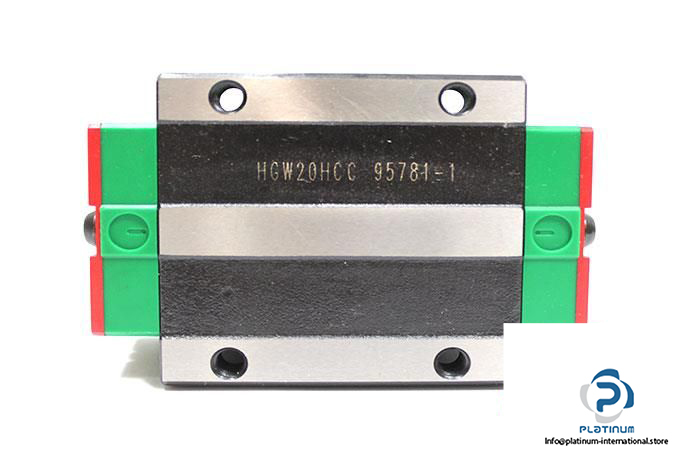

HIWIN HGW20HCC LINEAR GUIDEWAY BLOCK
The Hiwin HGW20HCC linear guideway block is engineered for precision motion systems demanding high load capacity and stable linear guidance. Designed for super heavy load applications, this flange-type block provides outstanding rigidity and smooth travel under both top and bottom mounting configurations.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGW20HCC

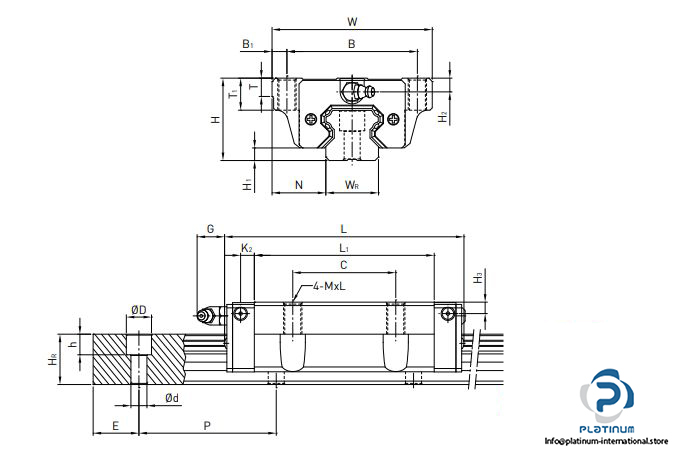

| Size | 20 mm |
| Block Height | 25.4 mm |
| System Height | 30 mm |
| Block Width (W) | 63 mm |
| Block Length (L) | 92.2 mm |
| Thread Size | M5 x 16 |
| Hole Distances (B, C) | 53 mm, 40 mm |
| Rail Width | 20 mm |
| Rail Height | 17.5 mm |
| Block Type | Flange |
| Load Type | Super Heavy Load |
| Block Mounting Type | Top or Bottom |
| Precision Code | C |
| Basic Dynamic Load Rating | 32.7 kN |
| Basic Static Load Rating | 47.96 kN |
