Hubner Berlin POG 10 DN 512 I Incremental Encoder
Inkrementalgeber Heavy-Duty HUBNER BERLIN Inkrementalgeber mit optischer Erfassung, HTL-Ausgang, 512 Impulsen pro Umdrehung und IP66-Schutz, geliefert mit FSL Zentrifugalschalter für industrielle Rückmeldeanwendungen.

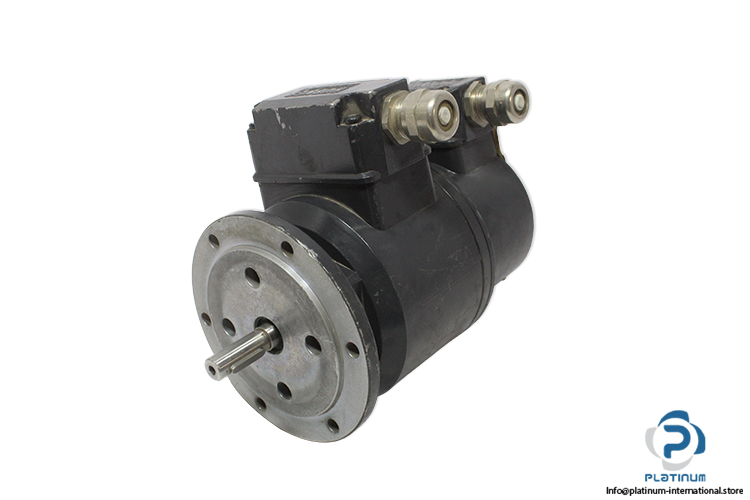

HUBNER BERLIN POG 10 DN 512 I Incremental Encoder
The HUBNER BERLIN POG 10 DN 512 I incremental encoder is a heavy-duty industrial feedback device designed for precise speed and position monitoring. Built with robust materials and optical sensing technology, it ensures accurate signal output and reliable performance in harsh industrial environments.
Manufacturer: HUBNER BERLIN
Type: Incremental Encoder

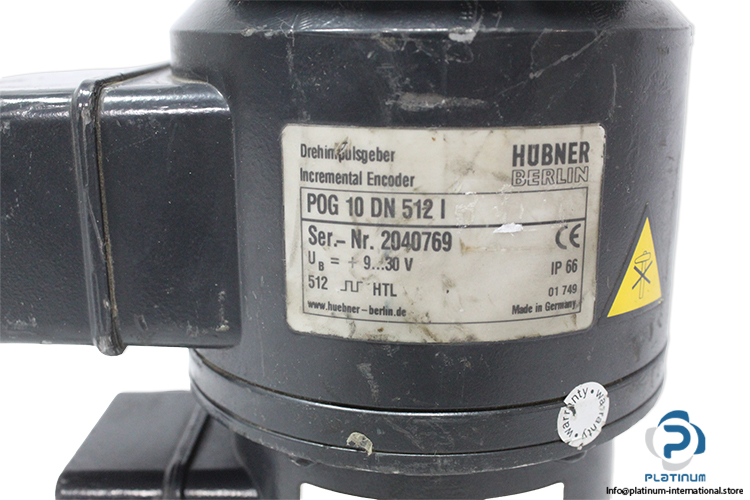

Model: POG 10 DN 512 I
Serial No.: 2040769
Series: POG 10
Attachment

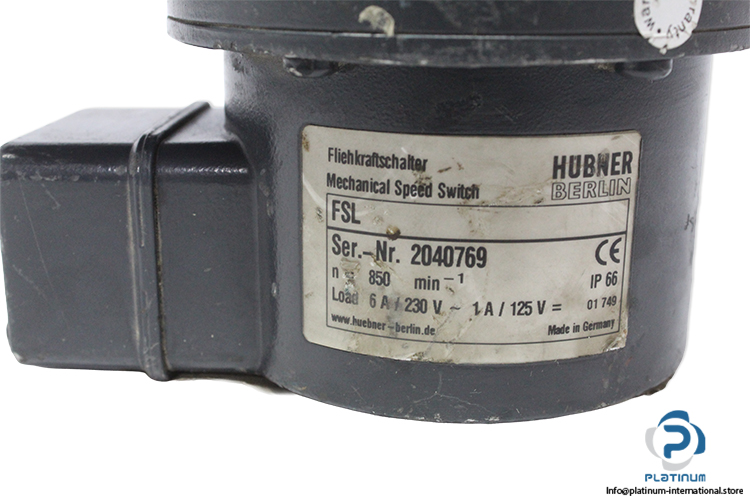

HUBNER FSL Centrifugal Switch
| Power Supply | 9 / 30 V DC |
| Consumption Current | 100 mA |
| Principle of Operation | Incremental |
| Shaft Type | Solid Shaft |
| Flange | EURO Flange B10 |
| Sensing Method | Optical |
| Output Stage | HTL |
| Output Frequency | ‰¤ 120 kHz |
| Pulses Per Revolution | 512 |
| Operating Speed | 850 min»¹ |
| Shaft Diameter | 11 mm |
| Flange Diameter | 115 mm |
| Protection Class | IP66 |
| Material | Housing: Aluminum Die-Cast, Shaft: Stainless Steel |
| Connection | Terminal Box |
| Operating Temperature | -40 / 100 °C |
| Serial No. | 2040769 |
| Load | 6 A / 230 VAC, 1 A / 125 V DC |
| Speed | 850 min»¹ |
| Protection Class | IP66 |
