IFM OP0016 Diffuse Reflection Sensor

Auf Lager1 EinheitVersandbereit

Diffuse Reflexionssensor Der IFM OP0016 Diffuse Reflexionssensor bietet eine Erkennungsreichweite von 3000 mm, infrarotes Licht, PNP-Ausgang und IP65-Schutz, ideal für industrielle Automatisierungsanwendungen.

Hersteller
IFM
SKU
1055479
Kategorie
Sensors
Zustand
Gebraucht
Teilen
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

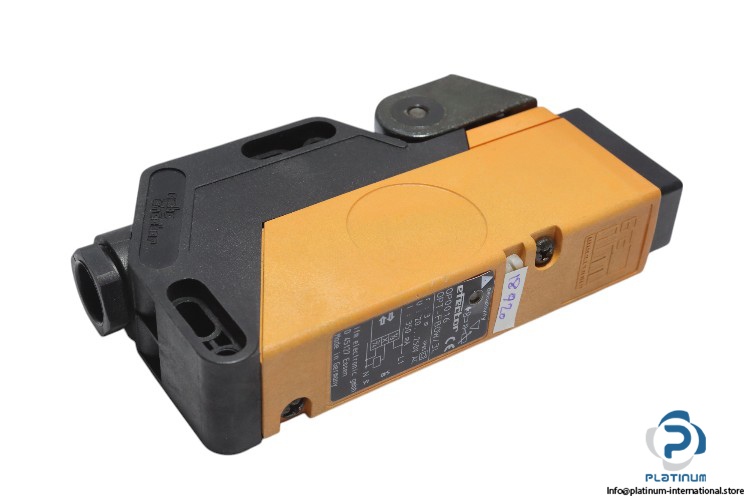

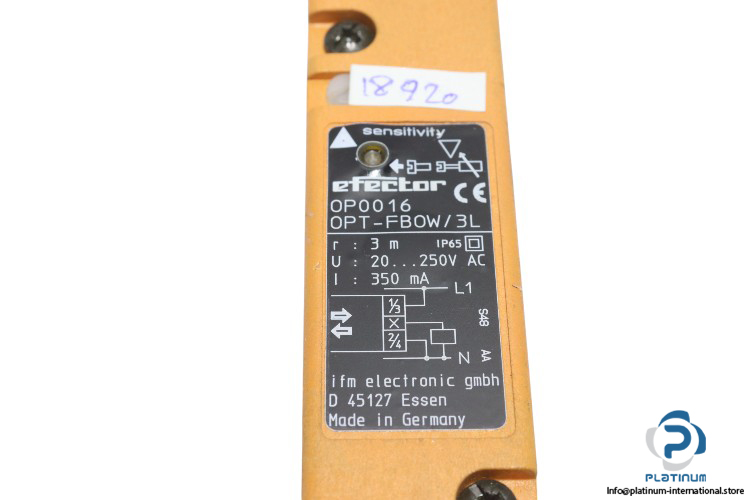

IFM OP0016 Diffuse Reflection Sensor

The **IFM OP0016 Diffuse Reflection Sensor** is designed for high-precision object detection in industrial environments. With an **operating voltage range** from **20 to 250 V AC**, it delivers reliable performance across a variety of systems. The sensor offers a **detection zone range** of up to **3000 mm**, making it suitable for long-distance sensing applications. It operates in **light-on/dark-on mode** with a **maximum voltage drop of 4 V AC** on the switching output. The **infrared light** source with a **wavelength of 880 nm** ensures accurate detection, even in challenging conditions. Featuring a **PPO modified housing** and **glass lens**, the sensor is built to last and withstand harsh environments. With **IP65 protection**, it is resistant to dust and water, ensuring optimal performance in industrial settings. It is equipped with a **terminal connection** for easy integration. The sensor is designed to operate within an **ambient temperature range of -20 to 80°C**, making it suitable for a wide variety of environments.

Manufacturer: IFM

Type: Diffuse Reflection Sensor

Model: OP0016

The **IFM OP0016 Diffuse Reflection Sensor** offers reliable, long-distance object detection in a compact and durable design, ideal for industrial automation and challenging environments.

Operating Voltage20 to 250 V AC
Frequency47 to 63 Hz
Current Consumption14 mA at 24 V
Detection Zone Range3000 mm
Output FunctionLight-on/dark-on mode
Max. Voltage Drop Switching Output4 V AC
Permanent Current Rating of Switching Output AC350 mA
Type of LightInfrared light
Wavelength880 nm
Housing DesignRectangular
Housing MaterialPPO modified
Lens MaterialGlass
ConnectionTerminal
Ambient Temperature-20 to 80°C
Protection DegreeIP65
Dimensions86 x 28 x 142 mm
