IFM OP0016 Diffuse Reflection Sensor

En stock1 unitéPrêt à être expédié

Capteur à réflexion diffuse Le capteur à réflexion diffuse IFM OP0016 offre une portée de détection de 3000 mm, une lumière infrarouge, une sortie PNP et une protection IP65, idéal pour les applications d'automatisation industrielle.

Fabricant
IFM
SKU
1055479
Catégorie
Sensors
Condition
Utilisé
Partager
Stock massif
Expédition mondiale
Support Expert
Qualité garantie

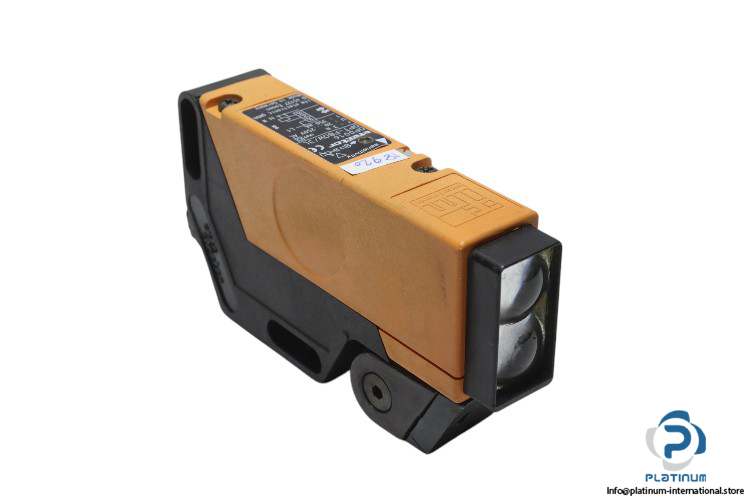

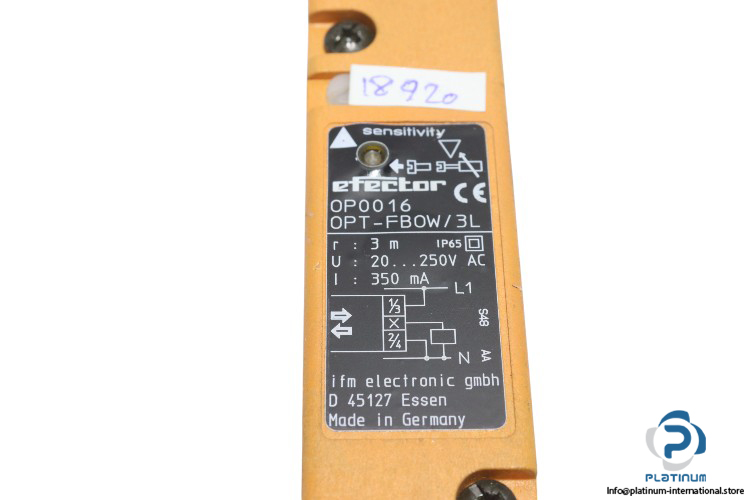

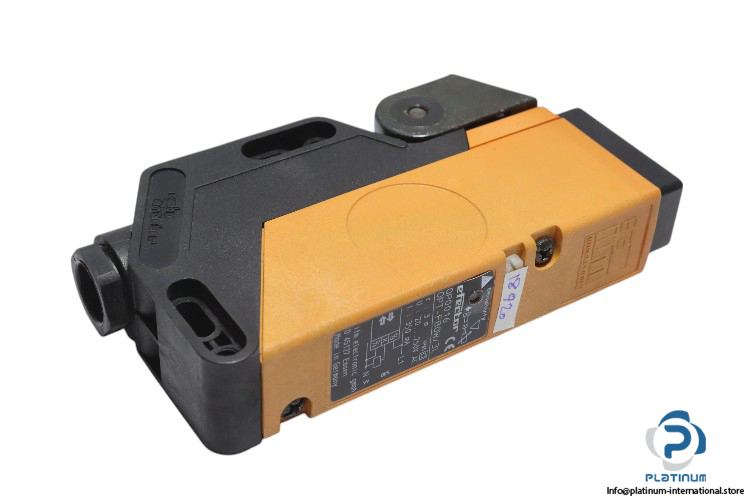

IFM OP0016 Diffuse Reflection Sensor

The **IFM OP0016 Diffuse Reflection Sensor** is designed for high-precision object detection in industrial environments. With an **operating voltage range** from **20 to 250 V AC**, it delivers reliable performance across a variety of systems. The sensor offers a **detection zone range** of up to **3000 mm**, making it suitable for long-distance sensing applications. It operates in **light-on/dark-on mode** with a **maximum voltage drop of 4 V AC** on the switching output. The **infrared light** source with a **wavelength of 880 nm** ensures accurate detection, even in challenging conditions. Featuring a **PPO modified housing** and **glass lens**, the sensor is built to last and withstand harsh environments. With **IP65 protection**, it is resistant to dust and water, ensuring optimal performance in industrial settings. It is equipped with a **terminal connection** for easy integration. The sensor is designed to operate within an **ambient temperature range of -20 to 80°C**, making it suitable for a wide variety of environments.

Manufacturer: IFM

Type: Diffuse Reflection Sensor

Model: OP0016

The **IFM OP0016 Diffuse Reflection Sensor** offers reliable, long-distance object detection in a compact and durable design, ideal for industrial automation and challenging environments.

Operating Voltage20 to 250 V AC
Frequency47 to 63 Hz
Current Consumption14 mA at 24 V
Detection Zone Range3000 mm
Output FunctionLight-on/dark-on mode
Max. Voltage Drop Switching Output4 V AC
Permanent Current Rating of Switching Output AC350 mA
Type of LightInfrared light
Wavelength880 nm
Housing DesignRectangular
Housing MaterialPPO modified
Lens MaterialGlass
ConnectionTerminal
Ambient Temperature-20 to 80°C
Protection DegreeIP65
Dimensions86 x 28 x 142 mm
