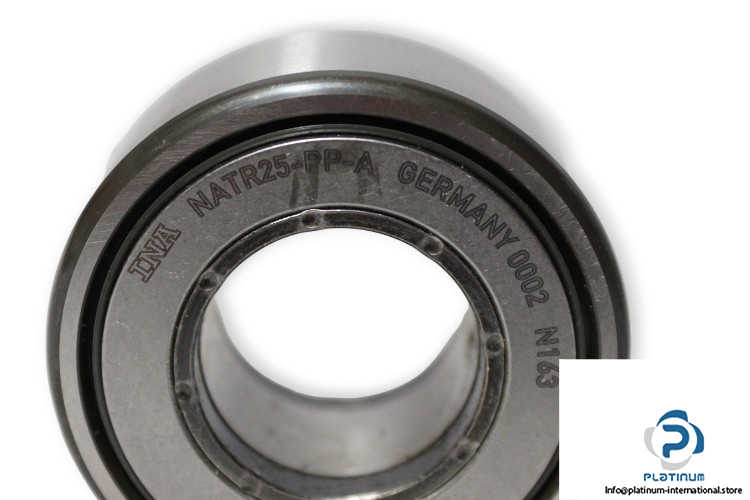

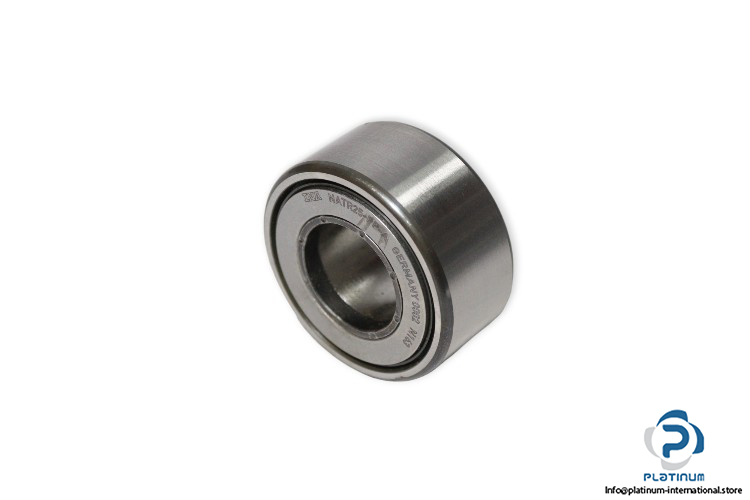

INA NATR25-PP-A Yoke Type Track Roller

Manufacturer: INA
Type: Yoke-type track rollers
Model: NATR 25-PP-A

Dimensions
Bore Diameter d: 25 mm
Outer diameter D: 52 mm
Width, inner ring B: 25 mm
Basic dynamic load rating, radial: 15200 N
Basic static load rating, radial: 27000 N
Fatigue load limit, radial: 3600 N
Speed on permanent grease lubrication: 1800 rpm
Permissible static load, radial: 27000 N
Permissible dynamic load outer ring, radial: 27000 N
Sealing: Three-stage sealing by plastic axial plain washer on both sides
