KEB 07.DR.B08-4951 Input Choke
Neu
Auf Lager1 EinheitVersandbereit
3-Phasen-Leitungsreaktor KEB DDUR1626 Eingangs-Drossel mit Nennstrom 6.0 A, 500 V, Induktivität 4.88 mH, Frequenz 50 Hz. Entwickelt zum Antriebsschutz und zur Harmonischen Reduktion in Industriesystemen.
34.88mH500V61558-2-206AChokeDDUR1626DriveENIndustrialInputKEBLineListedPhasePowerProtectionReactorULVDE
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

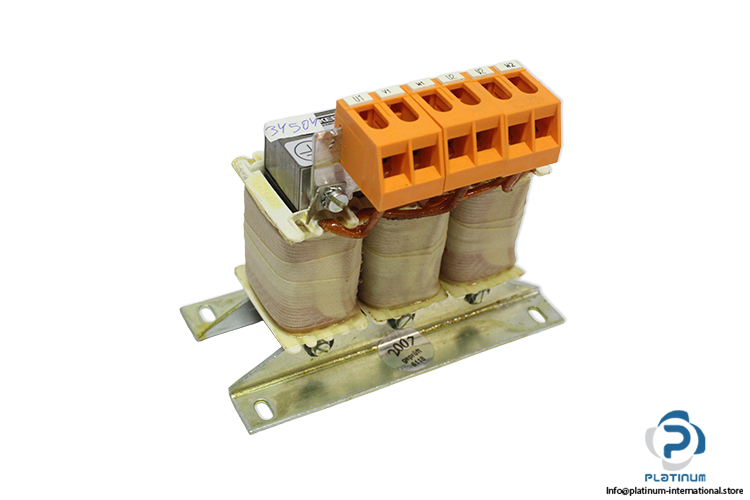

KEB DDUR1626 3-Phase Line Reactor / Input Choke
The KEB DDUR1626 is a three-phase line reactor (input choke) designed to reduce harmonic distortion, limit inrush current, and protect drive systems and power electronics. It is engineered for stable operation in industrial power supply and motor control applications.

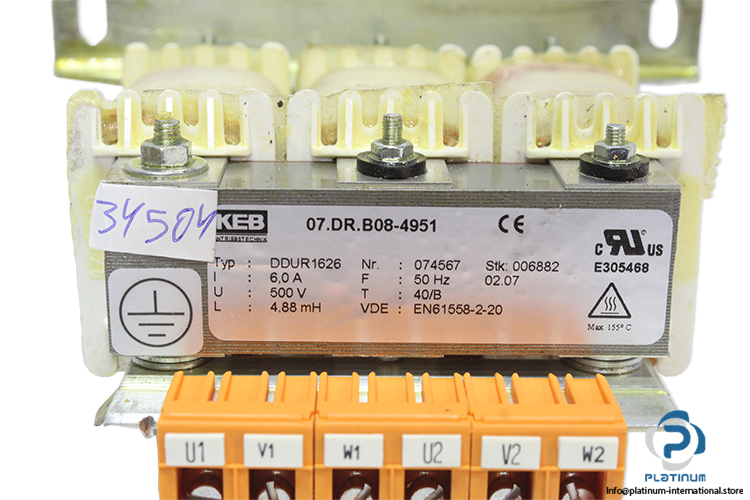

Manufacturer: KEB
Type: 3-Phase Line Reactor / Input Choke
Model: DDUR1626
Part No.: 07.DR.B08-4951
ID No.: 074567
Code: 006882
| Rated Current (I) | 6.0 A |
| Rated Voltage (U) | 500 V |
| Inductance (L) | 4.88 mH |
| Frequency (f) | 50 Hz |
| Temperature Class | 40/B |
| Standard | VDE EN 61558-2-20 |
| Max Temperature | 155°C |
| UL Listed | E305468 |
