KEB 53.SM.200-34B0 Synchronous Servo Motor
Neu
Auf Lager1 EinheitVersandbereit
1 090,99$
SYNCHRONOUS SERVO MOTOR
KEB 53.SM.200-34B0 servo motor offers 10.7 Nm rated torque and 330 V operation, featuring 2-pole resolver feedback and IP64 protection”ideal for precise, dynamic automation systems.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

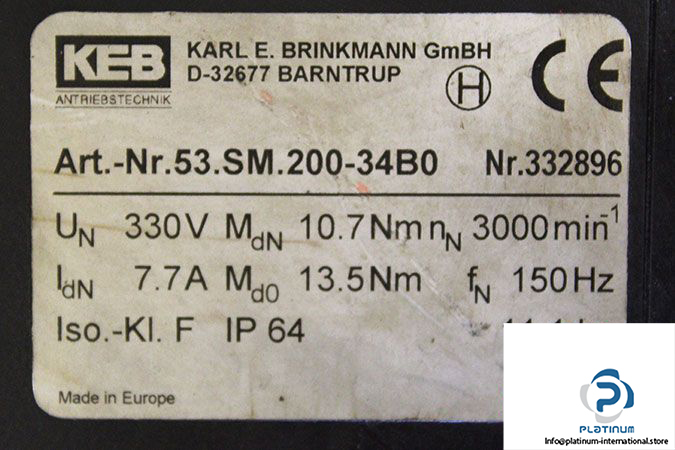

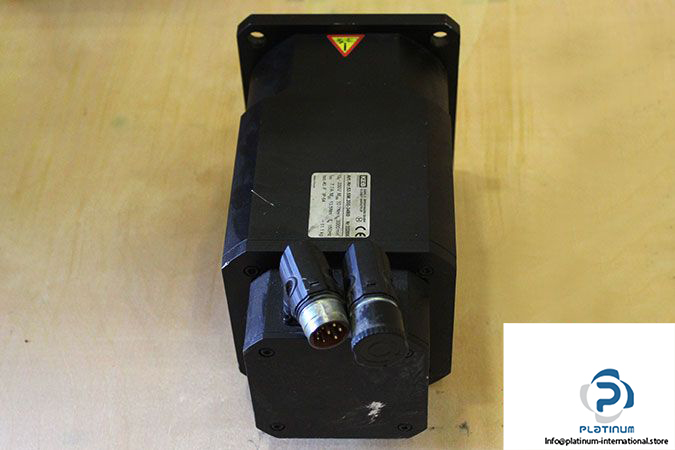

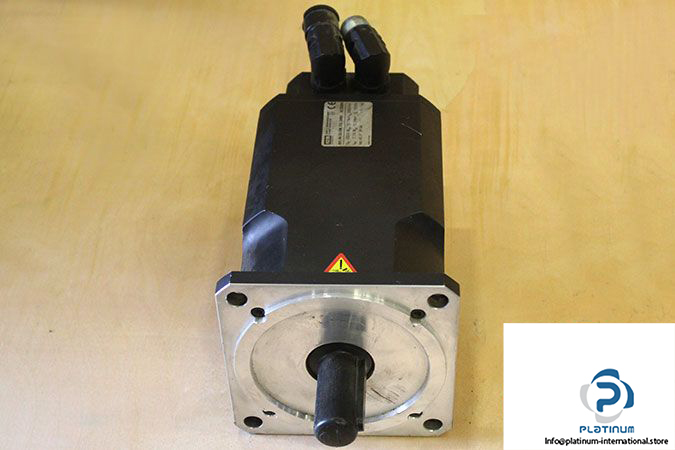

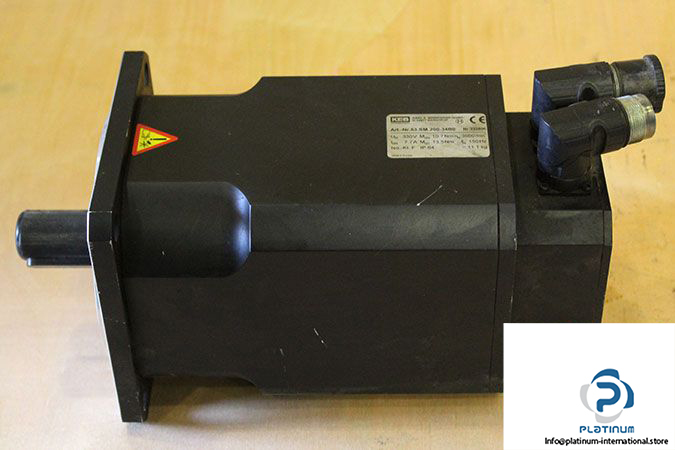

KEB 53.SM.200-34B0 SYNCHRONOUS SERVO MOTOR
The KEB 53.SM.200-34B0 is a high-efficiency synchronous servo motor engineered for demanding automation systems. Delivering precise control and high torque output, it is an excellent choice for applications requiring dynamic performance, reliability, and compact design.
Manufacturer: KEB
Type: Synchronous Servo Motor
Art. No: 53.SM.200-34B0
Part No.: 332896
| Rated Voltage | 330 V |
| Rated Current | 7.7 A |
| Max. Current | 45.7 A |
| Stall Current | 9.2 A |
| Rated Speed | 3000 min-1 |
| Rated Power | 3.36 W |
| Rated Frequency | 150 Hz |
| Rated Torque | 10.7 Nm |
| Max. Torque | 40.5 Nm |
| Stall Torque | 13.5 Nm |
| Brake | Without |
| Cooling | Self-Cooling with Flange B5 IFT5 Compatible |
| Encoder | 2-Pole Resolver |
| Protection Class | IP 64 |
| Insulation Class | F |
