Krohne Optimass 1400C S15 Mass Flow Sensor
1 499,99$
Sensor for Mass Flow with Heating Jacket
The KROHNE OPTIMASS 1400C S15 provides accurate mass flow measurement with HART communication, stainless-steel construction, IP66/IP67 protection, and optional heating jacket for operation up to 130 °C.KROHNE OPTIMASS 1400C S15 Sensor for Mass Flow with Heating Jacket

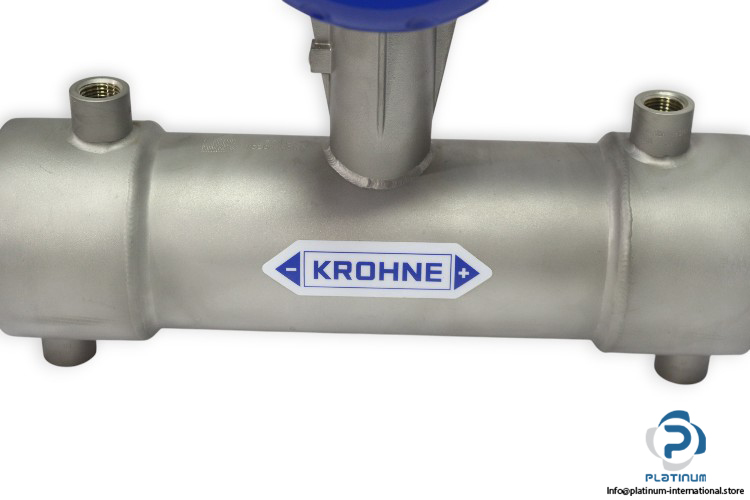

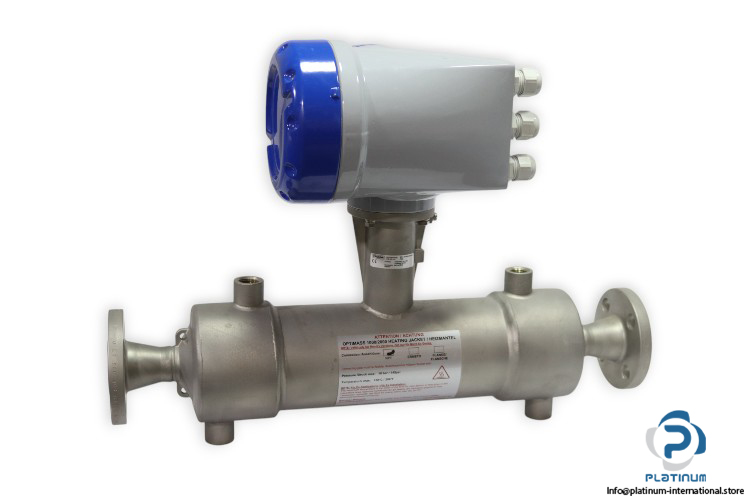

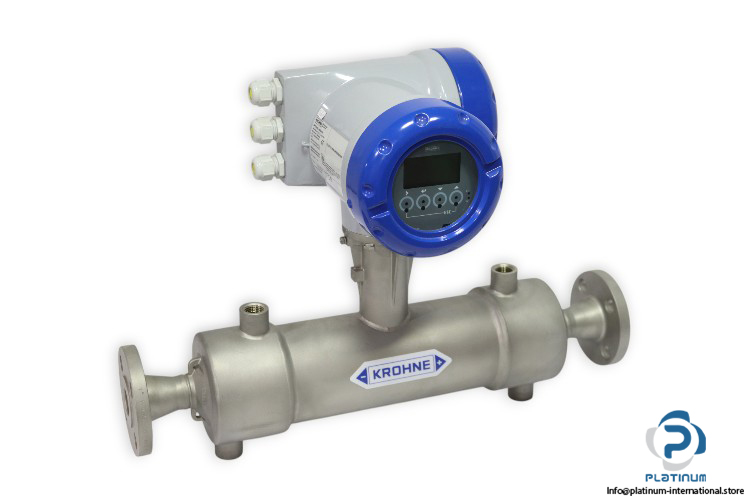

The KROHNE OPTIMASS 1400C S15 is a high-precision mass flow sensor equipped with an integrated heating jacket for stable operation under varying process conditions. Designed with durable stainless-steel materials, it provides accurate flow measurement of liquids such as water across a wide temperature and pressure range. This model combines reliability, precision, and robust construction for demanding industrial environments.
Manufacturer: KROHNE
Type: Sensor for Mass Flow with Heating Jacket
Model: OPTIMASS 1400C S15

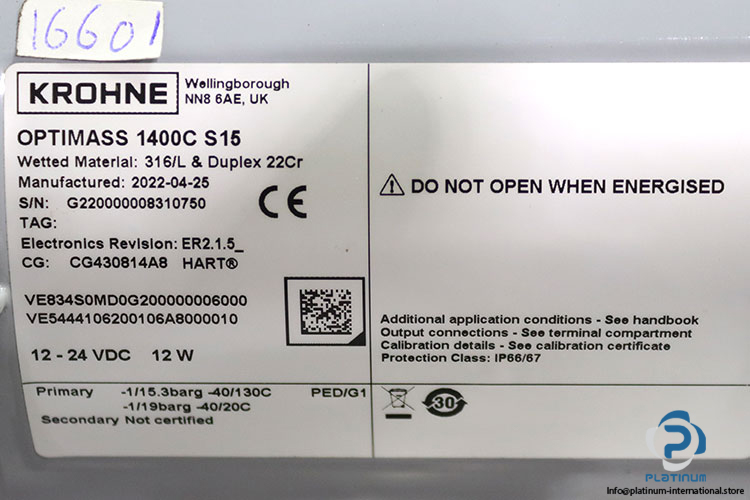

Serial Number: G220000008310750

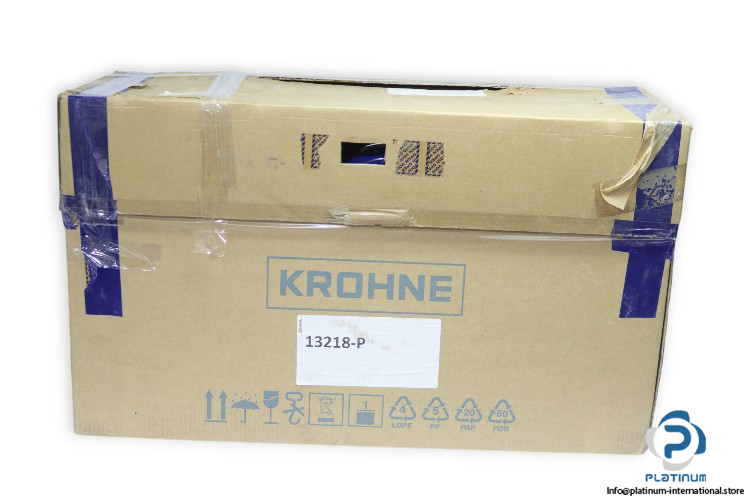

Code: 13218-P, CG430814A8, VE5444106200106A8000010, VE834S0MD0G200000006000
Electronics Revision: ER2.1.5_

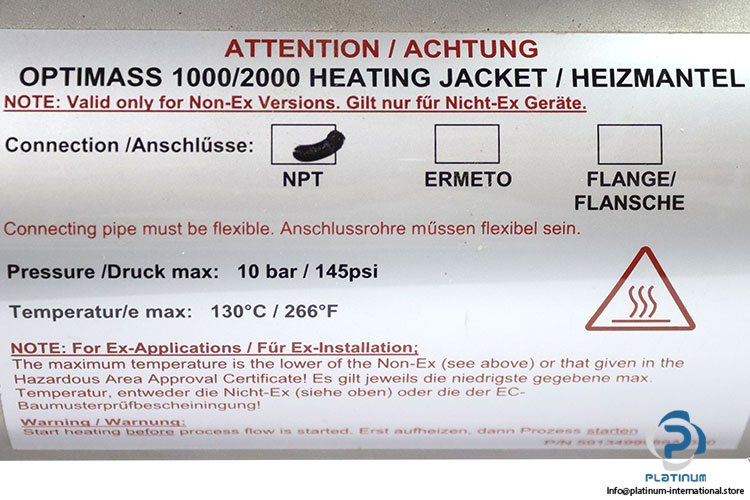

Heating Jacket (Accessory)
| Calibration Fluid | Water |
| Maximum Temperature Difference | 80 °C |
| Communication Protocol | HART |
| Power Supply | 12 to 24 VDC |
| Power Consumption | 12 W |
| Wetted Materials | 316L Stainless Steel and Duplex 22Cr |
| Protection Class | IP66 / IP67 |
| Connection | NPT |

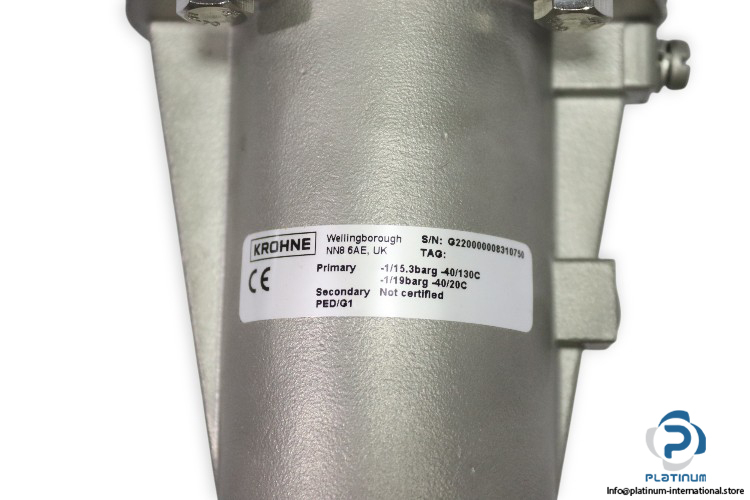

| Primary Pressure Rating | “1 to 15.3 barg (“40 to 130 °C) |
| Alternate Pressure Rating | “1 to 19 barg (“40 to 20 °C) |
| Operating Temperature Range (Primary) | “40 °C to +130 °C |
| Calibration Temperature | +20 °C |
| Calibration Pressure | 1 to 6 barg |
| Flanged Connection Temperature Range | “40 °C to +130 °C |
| Hygienic Connection Temperature Range | “40 °C to +130 °C |
| Nominal Pressure at 20 °C | “1 to 100 barg (FM / PED) |
| Compliance | CRN / ASME B31.3: “1 to 100 barg |
| Connection Options | NPT |
| Maximum Pressure | 10 bar |
| Maximum Temperature | 130 °C |
