Lapp AB-C3-M8MS-2,0PUR Sensor/Actuator Cable
Neu
Auf Lager5 EinheitenVersandbereit
Sensor/Aktor Kabel LAPP AB-C3-M8MS-2,0PUR M8 Sensor/Aktor Kabel mit 3-poligem Stecker, 2 m PUR Kabel, IP65/IP67/IP68 Schutz und 4 A Nennstrom für industrielle Automatisierungsanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
LAPP AB-C3-M8MS-2,0PUR Sensor/Actuator Cable

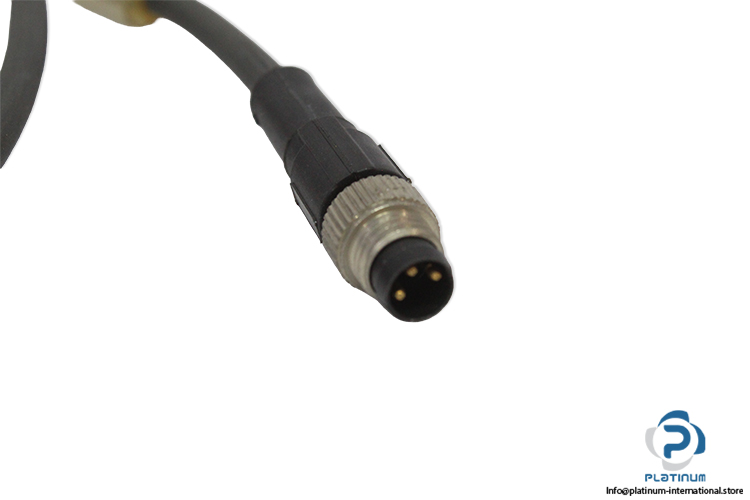

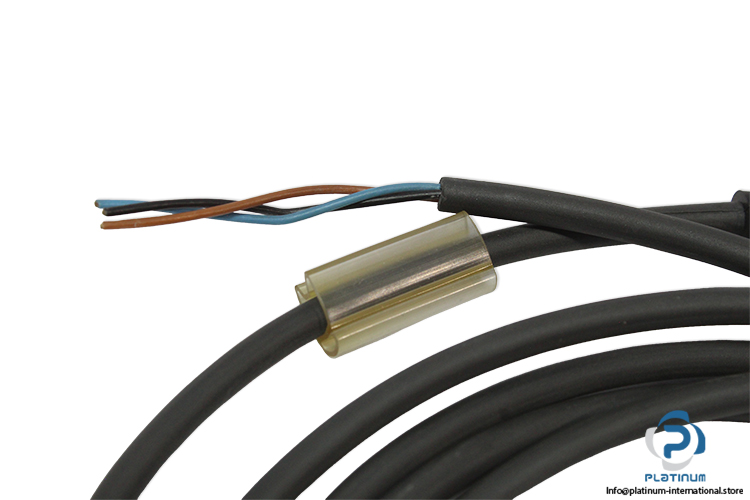

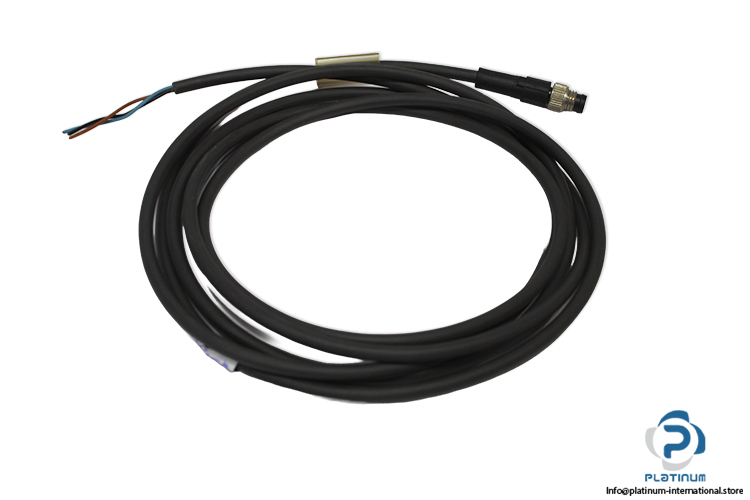

The LAPP AB-C3-M8MS-2,0PUR is a high-quality sensor/actuator cable designed for reliable signal transmission in industrial automation environments. It features M8 male connectivity, robust PUR cable construction, and high protection ratings suitable for demanding applications.
Manufacturer: LAPP
Type: Sensor/Actuator Cable

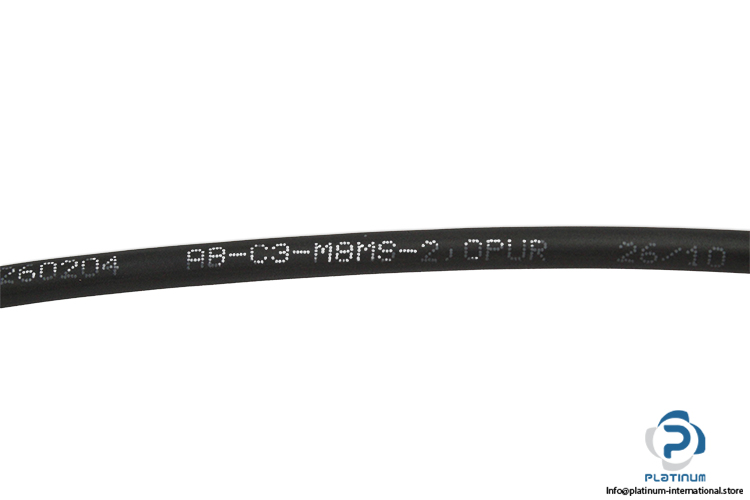

Model: AB-C3-M8MS-2,0PUR
Part No.: 22260204
Materials:
| Cable Length | 2 m |
| Connector 1 | 3 Pins | Male |
| Connector 2 | 3 Wires / Male |
| Number Of Contacts | 3 |
| Coding | A |
| Protection Degree | IP65 / IP67 / IP68 |
| Rated Voltage | 60 V |
| Rated Current | 4 A |

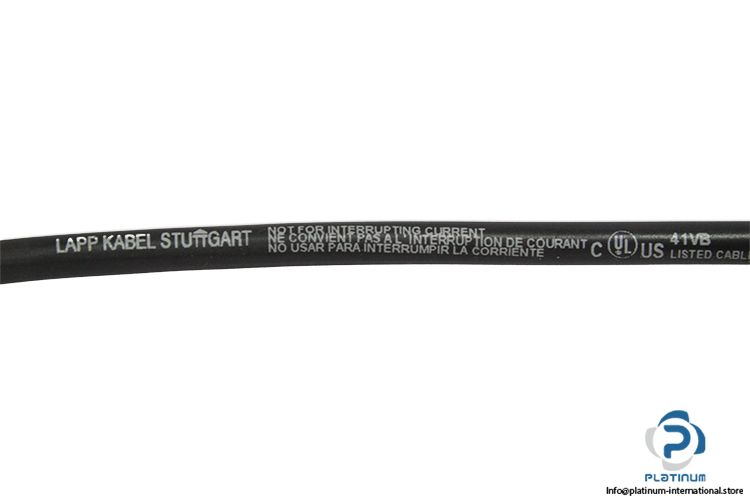

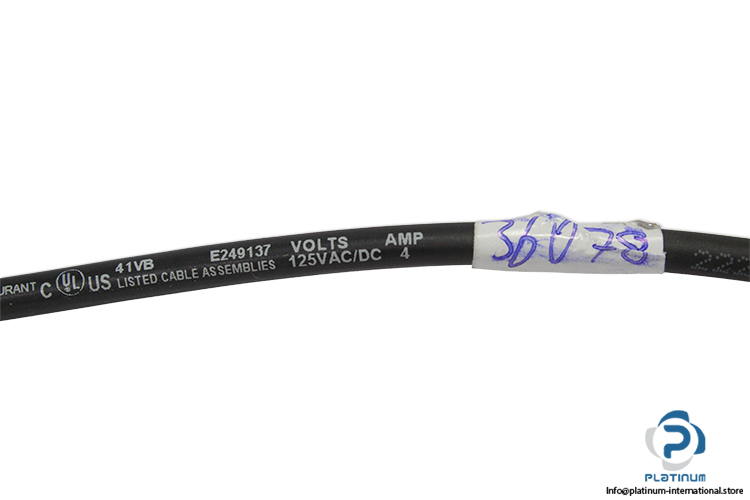

| Cable Information | E249137, 41VB, 4A, 125 VAC/DC |
| Insulation Resistance | 100 M„¦ |
| Contact Resistance | ‰¤ 5 m„¦ |
| Overvoltage Category | II |
| Pollution Degree | 3 |
| Tightening Torque | 0.2 Nm |
| Mating Cycles | 100 |
| Ambient Temperature | -25 °C to +90 °C |
| Ambient Temperature (Fixed Installation) | -40 °C to +80 °C |
| Contact Carrier | TPU GF |
| Contact Carrier Inflammability Class (UL 94) | HB |
| Contacts Material | CuSn |
| Contact Surface | Ni/Au |
| Signal Line Construction | 32 x 0.10 mm |
| Signal Line AWG | 24 |
| Conductor Material | Stranded Bare Copper Wire |
| Conductor Cross-Section | 0.25 mm² |
| Product Standard (M8 Connector) | IEC 61076-2-104 |
| UL Listed | E-File E249137 |
