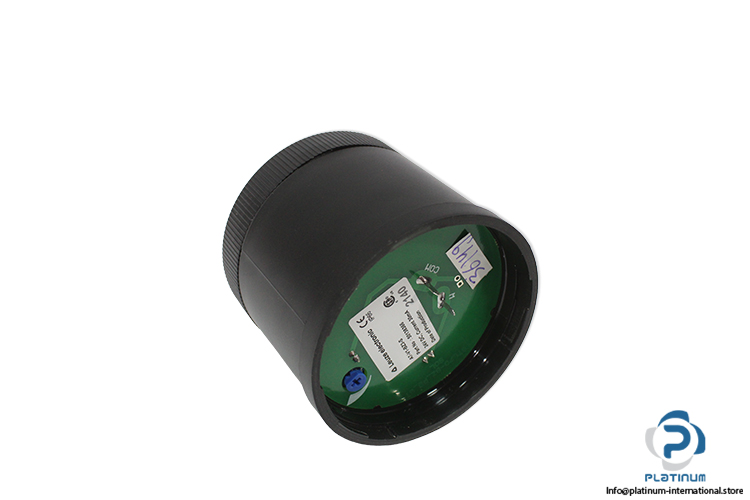

Leuze A7-V1-BZ3-S Signal Tower Element
Signal-Turmelement Leuze A7-V1-BZ3-S akustisches Signal-Turmelement mit Pulston, 24 V DC Versorgung, 105 dB Schalldruck, IP66 Schutz und einstellbarer Lautstärkeregelung.
Leuze A7-V1-BZ3-S Signal Tower Element
The Leuze A7-V1-BZ3-S is an acoustical signal tower element designed for advanced industrial signaling applications. Engineered for reliable performance, it delivers clear pulse tone output with adjustable volume control and robust environmental protection.
Manufacturer: Leuze
Type: Signal Tower Element
Model: A7-V1-BZ3-S
Article Number: 50138366
Code: 2140 / STL70-BZ-PS-ST
Series: A7
Suitable For: A7 Series “ Advanced Series Signal Tower Elements
Notes:
The individual colors are controlled via VCC (PNP).
Reverse polarity protected. The colors are controlled via PINs, allowing the dome position to be freely selected (see operating instructions).
| Type Of Signaling | Acoustically |
| Key | Pulse Tone |
| Sound Pressure | 105 dB |
| Supply Voltage (UB) | 24 V DC (±10%) |
| Maximum Power Consumption | 30 mA |
| Design | Cylindrical |
| Dimensions (Ø x L) | 70 mm x 50 mm |
| Housing Material | Plastic |
| Type Of Fastening | Bayonet System |
| Controls | 225° Potentiometer |
| Function Of Control Element | Volume Control |
| Ambient Temperature (Operation) | -10 ... 60 °C |
| Protection Class | IP 66 |
| Approvals | CE, CSA |
