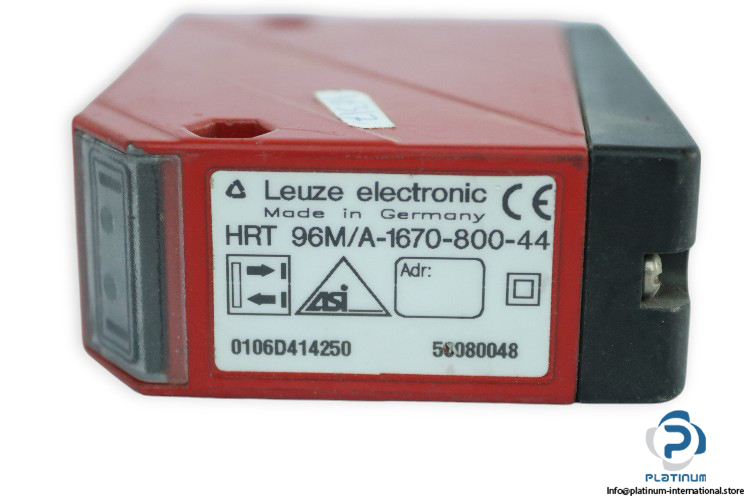

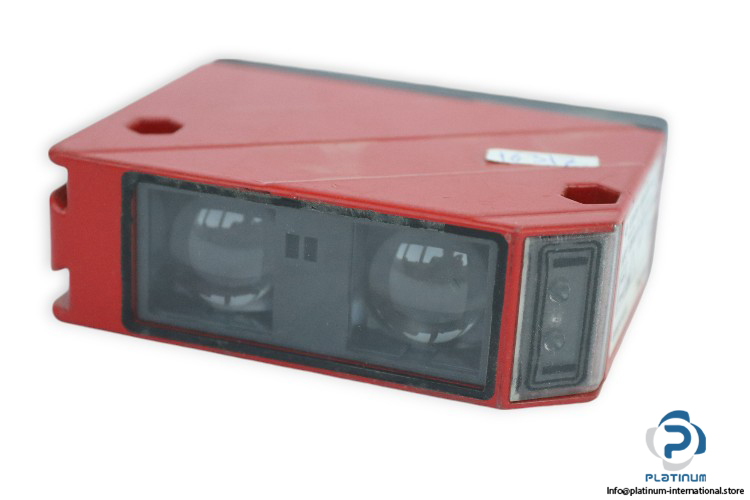

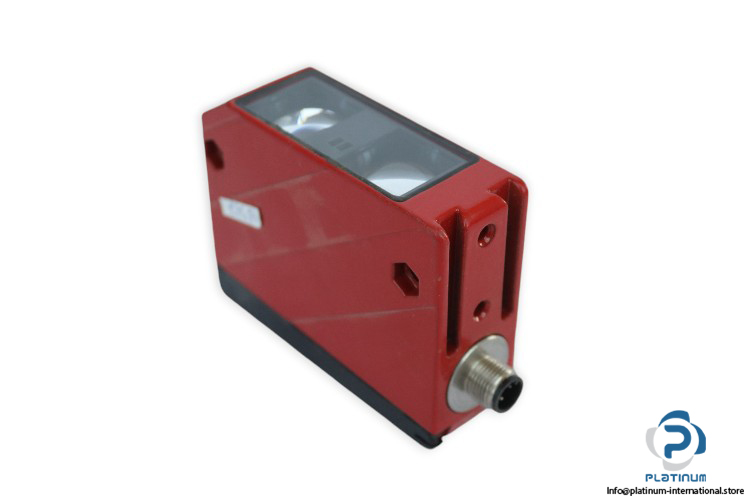

Leuze HRT 96M/A-1670-800-44 Diffuse Reflection Sensor With Background Suppression

Manufacturer: LEUZE
Type: Diffuse Reflection Sensor with Background Suppression
Model: HRT96MA167080044
Part No.: 50080048

Series: 96
Sensing Range: 100 … 1800 mm
Light Source: LED, Red
Wave Length: 880 nm
Operating Voltage: 26.5 … 31.6 V DC
Switching Frequency: 300 Hz
Interface: AS-Interface IO
Material: Diecast Zinc

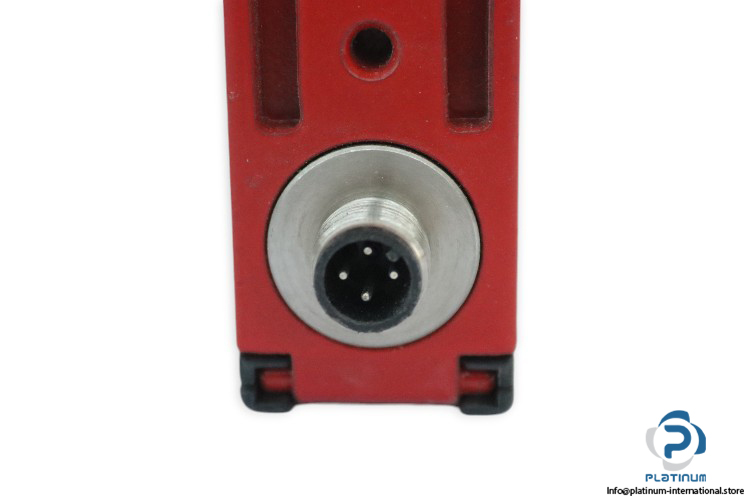

Electrical Connection: Female Connector, M12, 4-Pin, A-Coded
Protection Class: IP67
Temperature: -20 … 60 °C
Dimension: 90 x 30 x 70 mm
