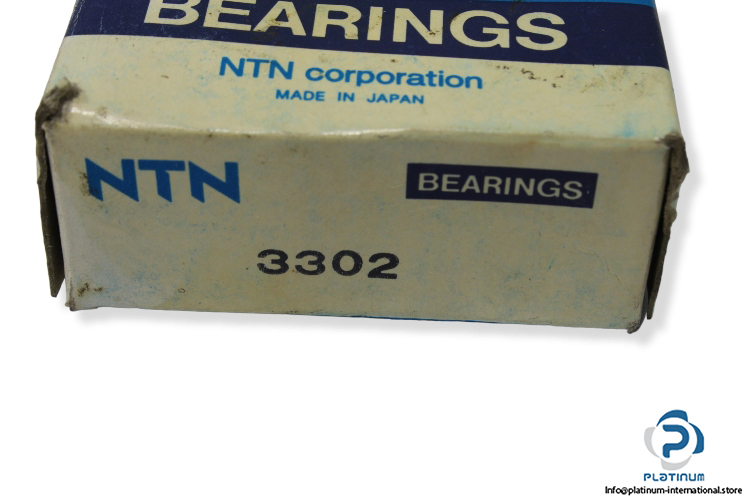

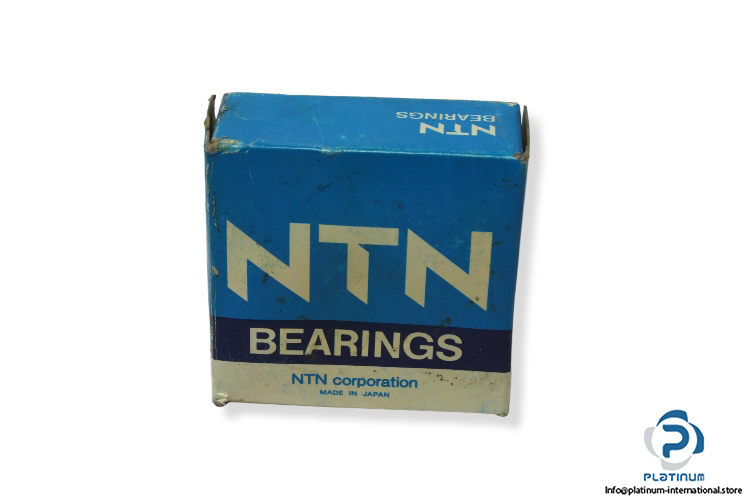

NTN 3302 Double ROW Angular Contact Ball Bearing
Manufacturer: NTN
Type: Double Row Angular Contact Ball Bearing
Model: 3302

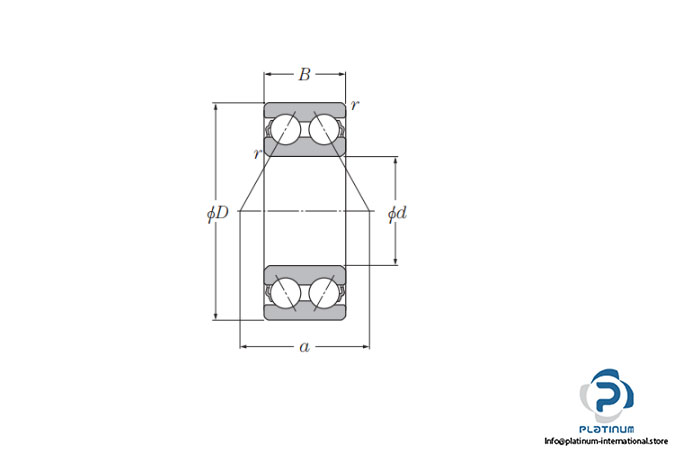

Dimensions
Bore Diameter d: 15 mm
Outer diameter D: 42 mm
Width B: 19 mm
Contact angle: 32 °
Basic load ratings, radial:
Dynamic Cr: 13900 N
Static C0r: 11600 N
Material: High Carbon Chrome Steel
Operating temperature: -40 … +120 °C
