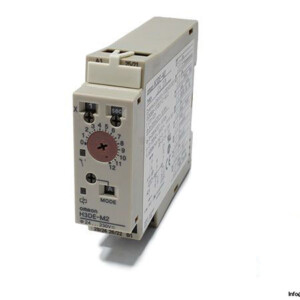

Omron H3DE-M2 Multifunction Timer
Omron H3DEM2 Multifunktions-Timer der H3DE Serie, hochpräziser Multifunktions-Timer mit DPDT-Relaisausgang, unterstützt 24-230V AC/DC. Mit DIN-Schienenmontage und großem Zeitbereich von 0,1 s bis 120 Std.

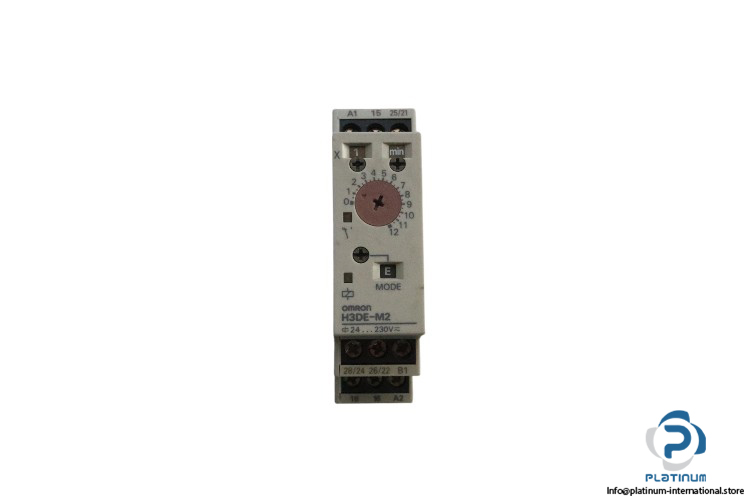

Omron H3DEM2 Multifunction Timer “ H3DE Series
The Omron H3DEM2 is a high-performance multifunction timer from the H3DE series, designed for precise time control in industrial automation and electrical applications. With its wide supply voltage range and reliable DPDT relay output, this timer ensures stable operation and easy DIN track mounting for seamless integration.
Key Details:
Manufacturer: Omron
Type: Multifunction Timer
Model: H3DEM2
Series: H3DE

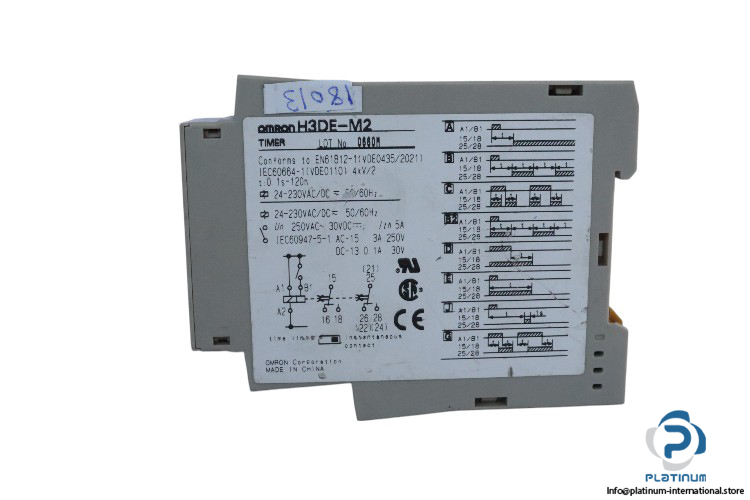

Lot No.: 0560M
Power:
Perfect for industrial automation, this multifunction timer offers precise timing control and versatile installation, ensuring reliable performance in electrical and control applications.
| Rated Supply Voltage | 24 to 230 V AC/DC |
| Frequency | 50/60 Hz |
| AC | Approx. 4.8 VA (2.4 W) at 230 VAC |
| DC | Approx. 1.0 W at 24 V |
| Terminal Screw Tightening Torque | 0.98 N.m max. |
| Terminal Block | Clamps two 2.5 mm² max. bar terminals without sleeves |
| Output Type (Relay) | 2 changeover contact (DPDT) |
| Contact Rating | 250 V AC, 3 A / 30 V DC, 0.1 A |
| Standard | IEC50947-5-1 |
| Mounting Method | DIN track mounting |
| Time Range | 0.1 s to 120 hrs |
| Enclosure Rating / Terminal Block | IP30 / IP20 |
| Ambient Temperature (Operating) | -10 to 55°C |
| Dimensions | 22.5 x 100 x 77 mm |
