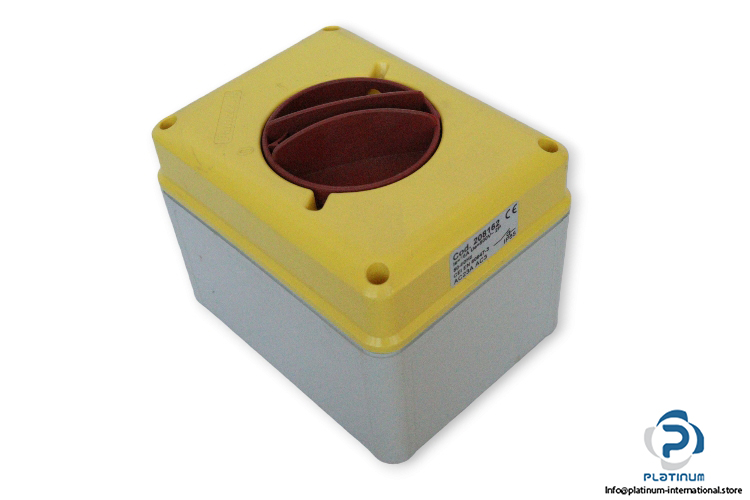

Palazzoli 208162 Emergency Isolator Switch
Neu
Manufacture: Palazzoli
Type: Emergency Isolator Switch
Model: CAM-ST
Part No.: 208162
Supply Voltage: 690 V AC,50/60Hz
Rated insulation voltage: 690 V
Rated voltage Ue: 500 V AC
Rated current Ie: 16 A
Thermal current: 16 A
Rated short-circuit current: 10 kA
Terminals type: Screw – indirect clamping
No. of poles: 2
Terminal tightening torque: 2 Nm
Execution: Wall mounting
Protection degree: IP65
Working Environment Temperature: -25 … +60°C
Dimensions: 121 x 158 x 126 mm
