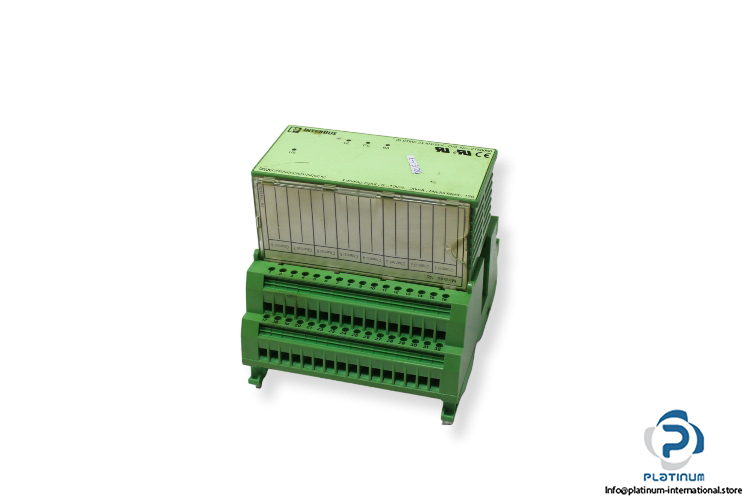

Phoenix Contact IB Stme 24 AI4/SF4 Replacement Electronics Module
Gebraucht
Auf Lager1 EinheitVersandbereit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacturer: Phoenix Contact
Type: Replacement Electronics Module

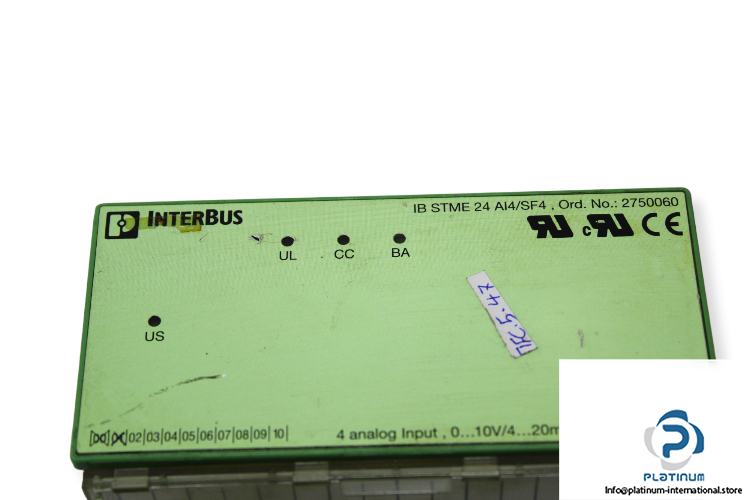

Model: IB STME 24 AI4/SF4
IB ST 24 AI 4/SF4

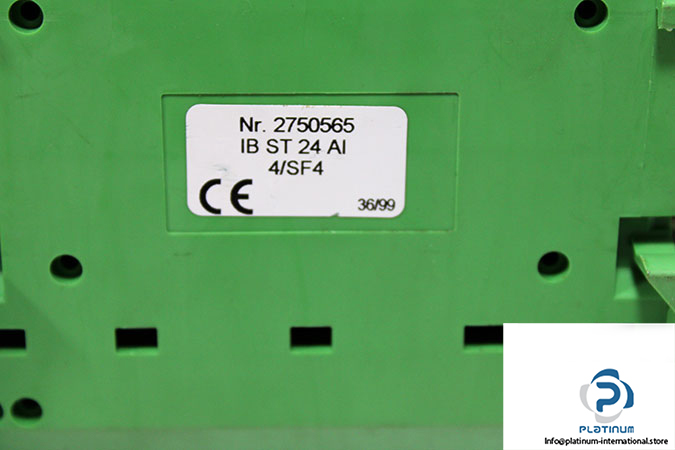

Order No.: 2750060 / 2750565
I/O voltage: ± 24 V DC 5 % (ripple)
Max. current consumption: 125 mA (without passive sensors)
Typical current consumption: 65 mA (without passive sensors)
Number of inputs: 4 Inputs
Input voltage & current: 0 … 10 V / 4 … 20 mA
Number of channels: 4 Channels
Connection method: Spring-cage connection
Degree of Protection: IP20
Mounting type: DIN rail mounting
Dimensions: 118 x 117 x 116 mm
