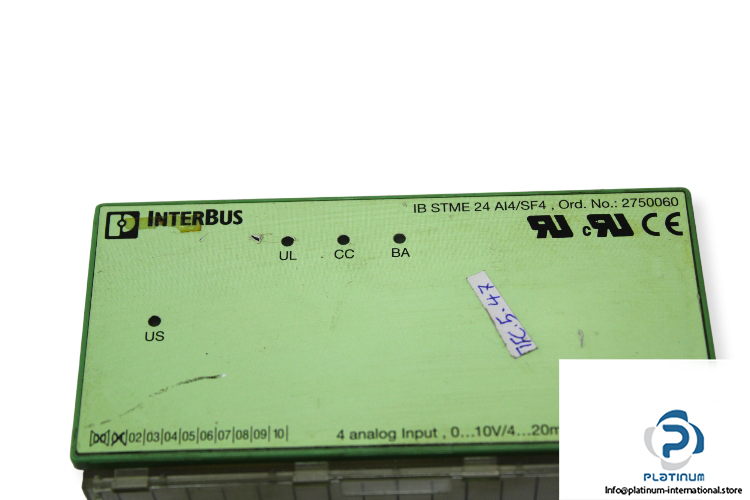

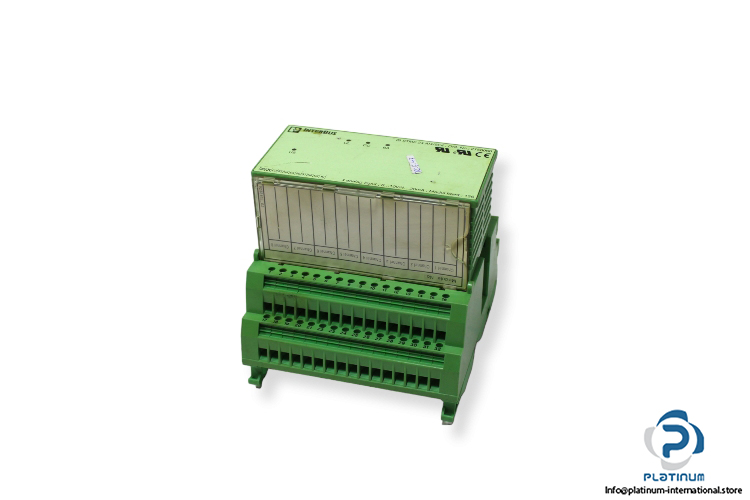

Phoenix Contact IB Stme 24 AI4/SF4 Replacement Electronics Module

Manufacturer: Phoenix Contact

Type: Replacement Electronics Module

Model: IB STME 24 AI4/SF4

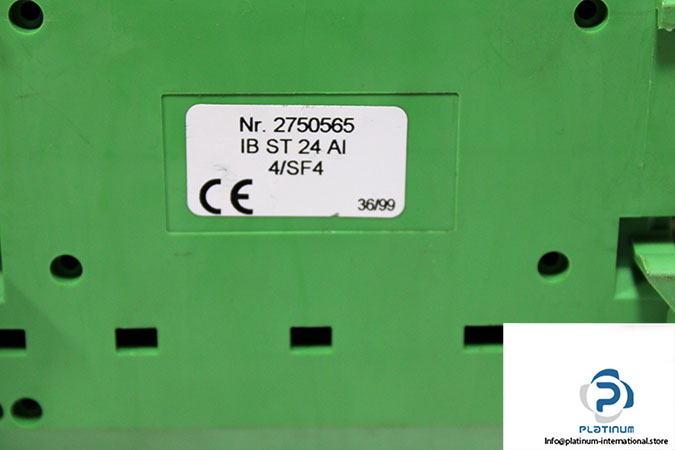

IB ST 24 AI 4/SF4

Order No.: 2750060 / 2750565

I/O voltage: ± 24 V DC 5 % (ripple)

Max. current consumption: 125 mA (without passive sensors)

Typical current consumption: 65 mA (without passive sensors)

Number of inputs: 4 Inputs

Input voltage & current: 0 … 10 V / 4 … 20 mA

Number of channels: 4 Channels

Connection method: Spring-cage connection

Degree of Protection: IP20

Mounting type: DIN rail mounting

Dimensions: 118 x 117 x 116 mm
