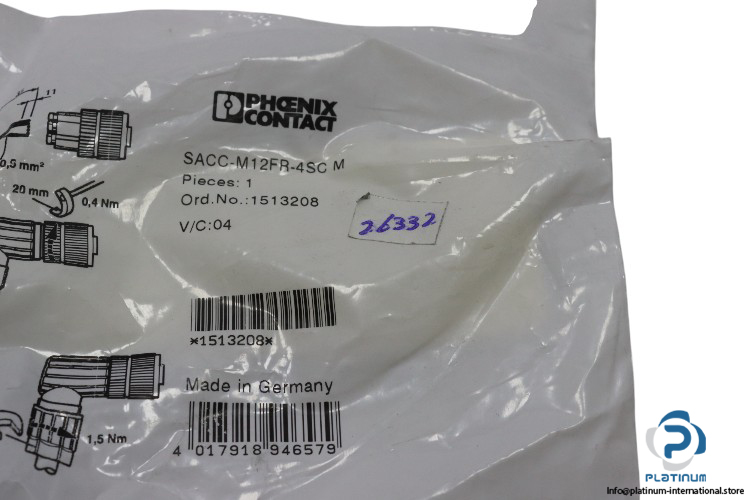

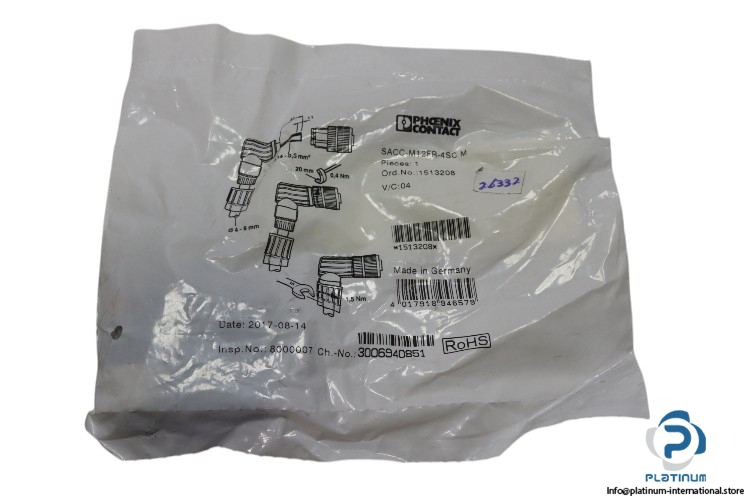

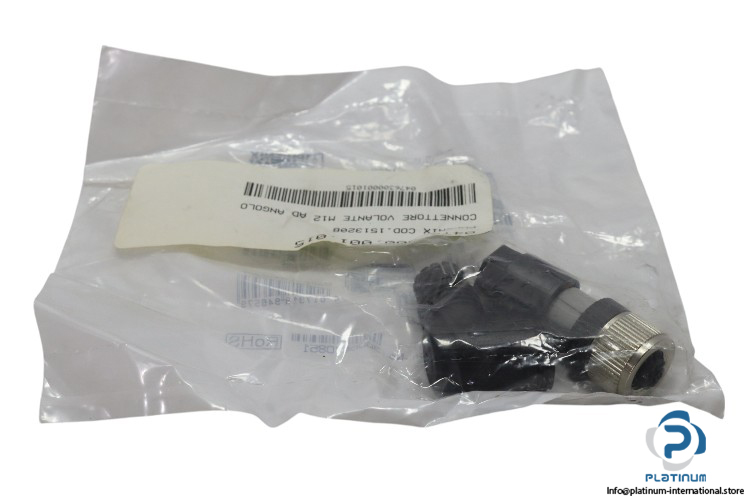

Phoenix Contact SACC-M12FR-4SC M Connector
Neu
Auf Lager11 EinheitenVersandbereit
Circular Connector
The Phoenix Contact SACC-M12FR-4SC M circular connector features 4 positions, an angled cable outlet, and a reliable spring-cage connection method. Designed for industrial applications, it offers IP65 protection and operates in temperatures ranging from -40 to 85 °C.4AngledCableCircularcomasConnectorContactIndustrialIP65MM12OutletPhoenixPositionSACC-M12FR-4SCSpring-Cage
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Phoenix Contact SACC-M12FR-4SC M “ Circular Connector
The Phoenix Contact SACC-M12FR-4SC M circular connector is a high-performance component designed for reliable electrical connections in industrial environments. Featuring a robust M12 thread and a spring-cage connection method, this connector ensures a secure, durable connection under varying temperature conditions.
Manufacturer: Phoenix Contact
Type: Circular Connector
Model: SACC-M12FR-4SC M
Order No.: 1513208
COMAS Part No.: 0476.300.001.015
Ref. No.: 4017918946579 / 3006940851
| Nominal Voltage (Un) | 250 V |
| Nominal Current (In) | 4 A |
| No. of Positions | 4 |
| No. of Cable Outlets | 1 |
| Cable Outlet | Angled |
| Degree of Pollution | 3 |
| Head Design | Socket |
| Head Cable Outlet | Angled |
| Head Thread Type | M12 |
| Connection Method | Spring-cage connection |
| Seal Material | Neoprene |
| Material of Grip Body | PA 6.6 |
| Contact Material | CuSn |
| Contact Carrier Material | PA 6.6 |
| Material for Screw Connection | Zinc die-cast, nickel-plated |
| Degree of Protection | IP65 |
| Ambient Temperature | -40 to 85 °C |
