PR Electronics 5331A3B Programmable Temperature Transmitter
Temperaturtransmitter PR Electronics 5331A3B 2-Draht programmierbarer Transmitter für Pt100 RTD-Sensoren, 0“200°C Bereich, 7,2“35 VDC Versorgung, galvanische Trennung 1500 VAC und Zertifizierungen für Gefahrenbereiche.

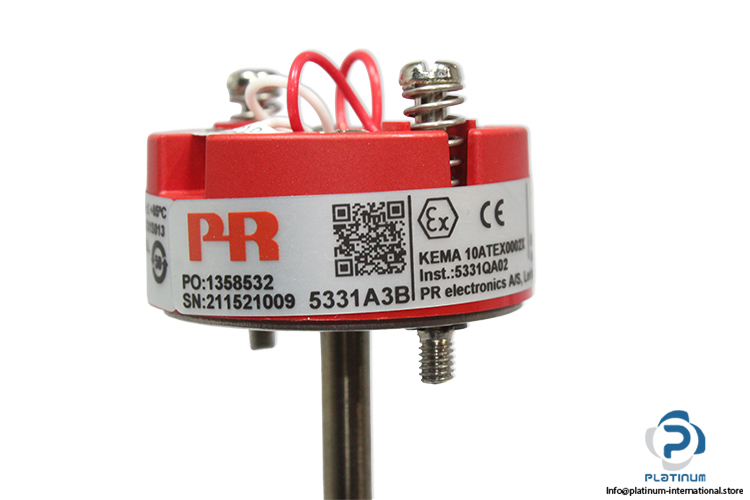

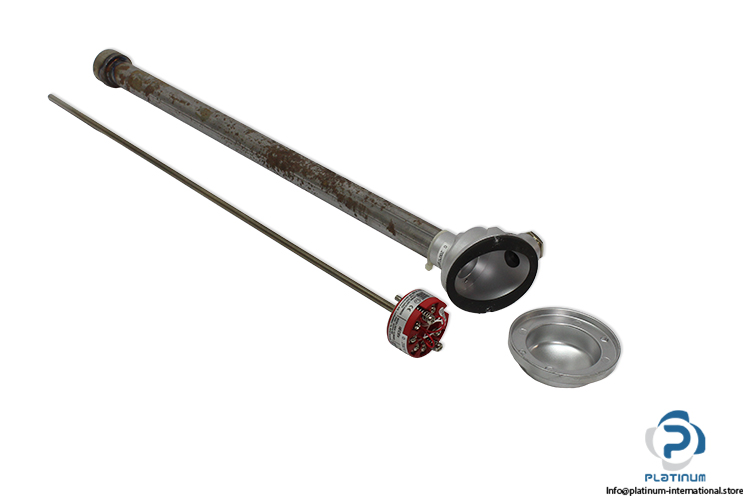

PR Electronics 5331A3B 2-Wire Programmable Transmitter
The PR Electronics 5331A3B is a 2-wire programmable temperature transmitter designed for Pt100 RTD sensor applications. Engineered for industrial process control environments, it provides stable signal transmission, high accuracy signal dynamics, and multiple international hazardous area certifications.
Manufacturer: PR electronics
Type: 2-wire programmable transmitter
Model: 5331A3B
PO No.: 1358532
Serial No.: 211521009
LB. Rev: 5331S013
Version: A

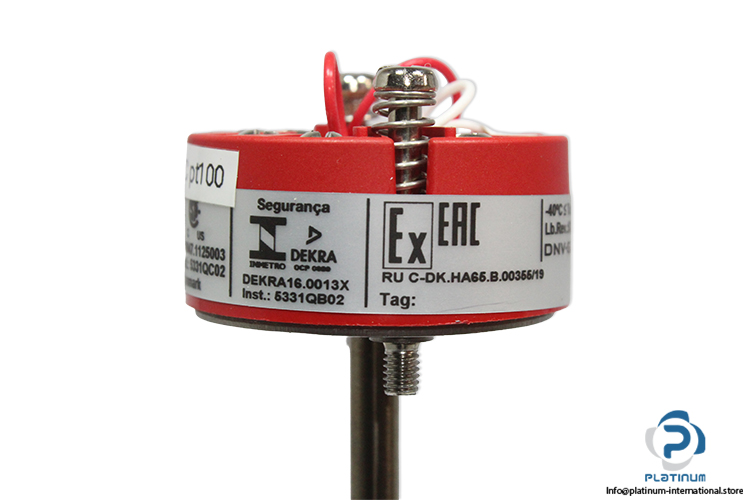

EAC Ex Approved
CSA / cUS Certified
DNV-GL Approved
| Sensor Type | Pt100 RTD |

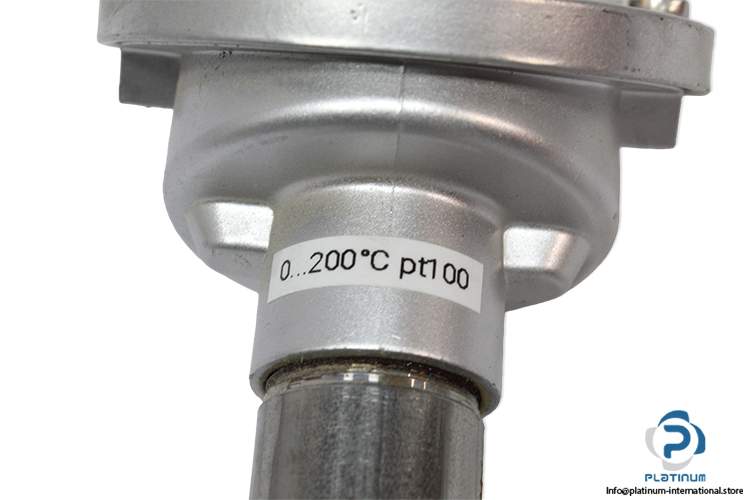

| Temperature Range | 0 / 200°C |
| Supply Voltage | 7.2...35 VDC |
| Voltage Drop | 7.2 VDC |
| Galvanic Isolation | 1500 VAC |
| Isolation Voltage (Test / Operation) | 1.5 kVAC / 50 VAC |
| Ambient Temperature | -40 to +85°C |
| Protection Degree | IP68 / IP00 |
| Dimensions | 44 x 20.2 mm |
| Warm-up Time | 5 min |
| Programming | Loop Link |
| Signal / Noise Ratio | Min. 60 dB |
| Response Time (Programmable) | 1...60 s |
| EEPROM Error Check | 3.5 s |
| Signal Dynamics (Input) | 20 bit |
| Signal Dynamics (Output) | 16 bit |
| Max. Wire Size | 1 x 1.5 mm² stranded wire |
| Screw Terminal Torque | 0.4 Nm |
| Vibration Standard | IEC 60068-2-6 |
| IECEx Certification | IECEx DEK 13.0035X |
| ATEX / Ex Marking | KEMA 10ATEX0003X |
