PR Electronics 5331A3B Programmable Temperature Transmitter
Sıcaklık Transmitteri PR Electronics 5331A3B Pt100 RTD sensörler için 2 telli programlanabilir transmitör, 0“200°C aralığı, 7,2“35 VDC besleme, galvanik izolasyon 1500 VAC ve tehlikeli alan sertifikaları.
PR Electronics 5331A3B 2-Wire Programmable Transmitter

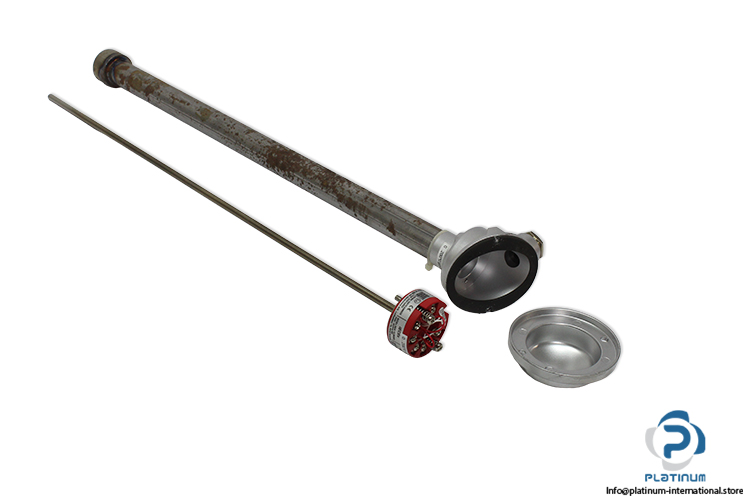

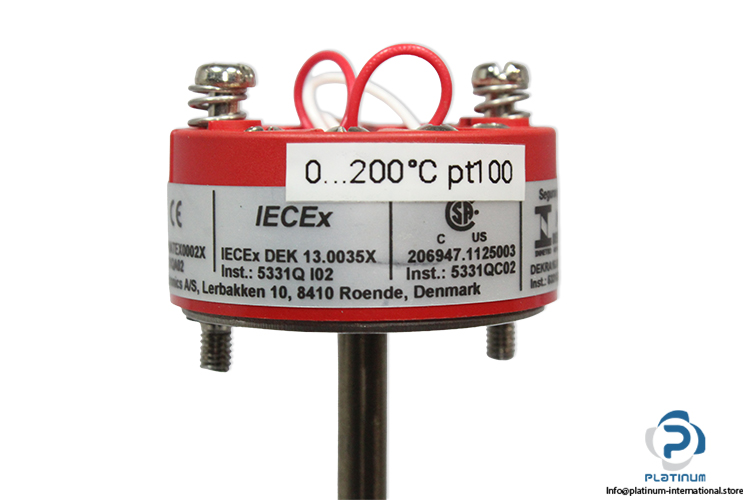

The PR Electronics 5331A3B is a 2-wire programmable temperature transmitter designed for Pt100 RTD sensor applications. Engineered for industrial process control environments, it provides stable signal transmission, high accuracy signal dynamics, and multiple international hazardous area certifications.
Manufacturer: PR electronics
Type: 2-wire programmable transmitter

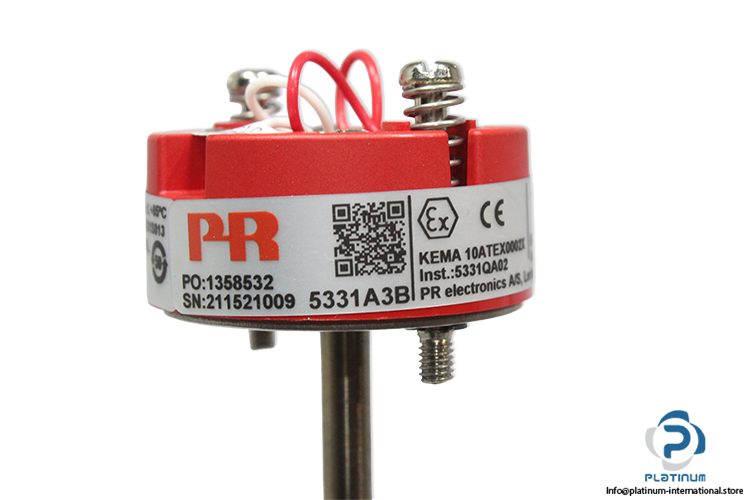

Model: 5331A3B

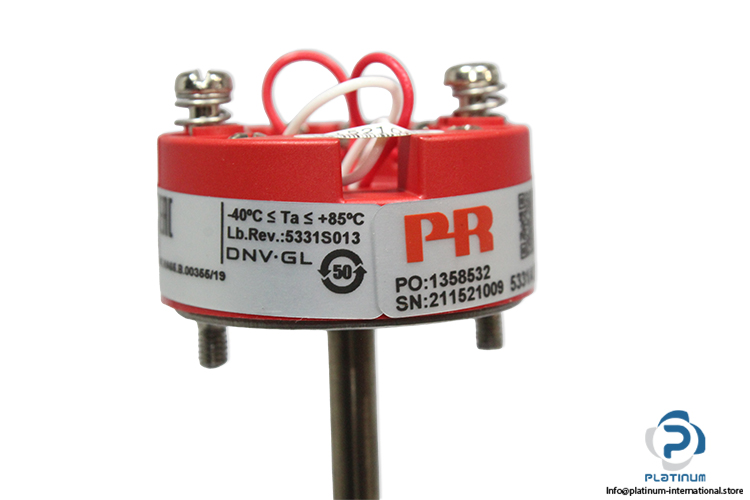

PO No.: 1358532
Serial No.: 211521009
LB. Rev: 5331S013
Version: A

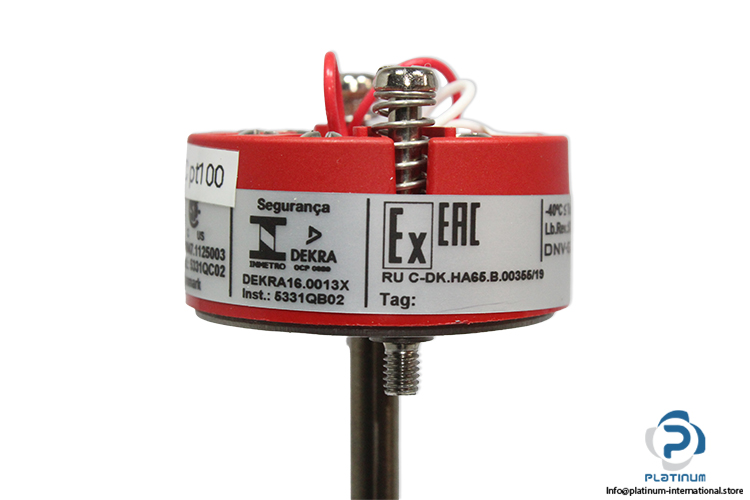

EAC Ex Approved
CSA / cUS Certified
DNV-GL Approved
| Sensor Type | Pt100 RTD |

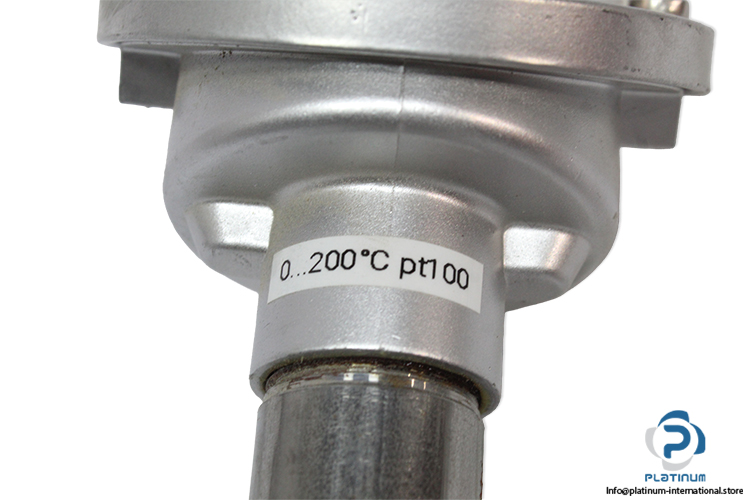

| Temperature Range | 0 / 200°C |
| Supply Voltage | 7.2...35 VDC |
| Voltage Drop | 7.2 VDC |
| Galvanic Isolation | 1500 VAC |
| Isolation Voltage (Test / Operation) | 1.5 kVAC / 50 VAC |
| Ambient Temperature | -40 to +85°C |
| Protection Degree | IP68 / IP00 |
| Dimensions | 44 x 20.2 mm |
| Warm-up Time | 5 min |
| Programming | Loop Link |
| Signal / Noise Ratio | Min. 60 dB |
| Response Time (Programmable) | 1...60 s |
| EEPROM Error Check | 3.5 s |
| Signal Dynamics (Input) | 20 bit |
| Signal Dynamics (Output) | 16 bit |
| Max. Wire Size | 1 x 1.5 mm² stranded wire |
| Screw Terminal Torque | 0.4 Nm |
| Vibration Standard | IEC 60068-2-6 |
| IECEx Certification | IECEx DEK 13.0035X |
| ATEX / Ex Marking | KEMA 10ATEX0003X |
