Rexroth R150347085 Ball Screw

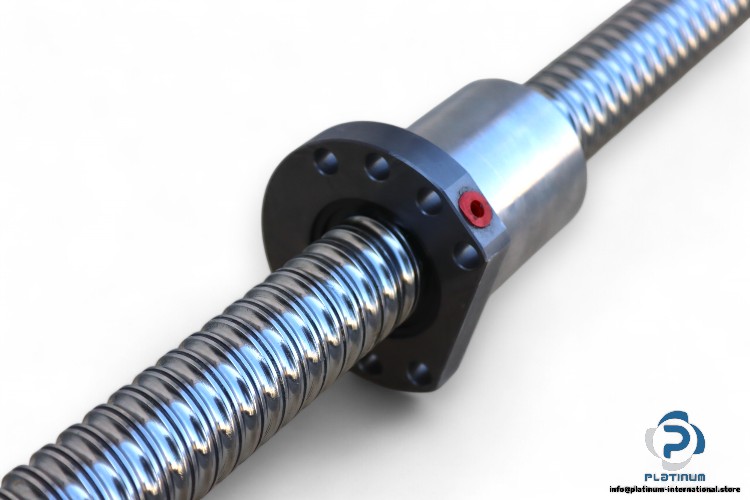

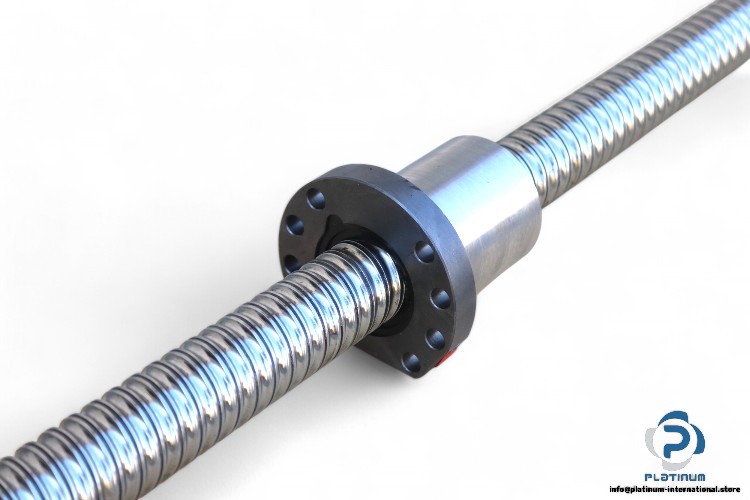

Flange Nut Ball Screw (Single Nut with Flange FEM-E-C)

Manufacturer: Rexroth

Type: Flange Nut Ball Screw (Single Nut with Flange FEM-E-C)

MNR: R150247085

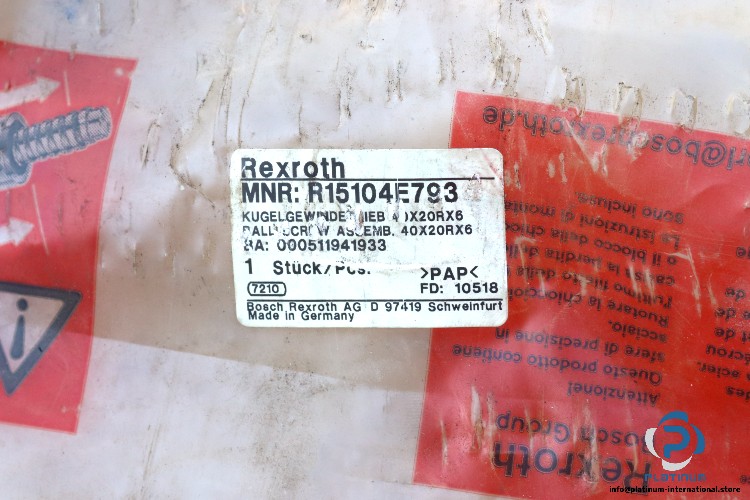

MNR Screw with bearing: R15104E783

Size: 40 x 20 R

Nominal Diameter (dN): 40 mm

Lead (P): 20 mm

• Ball Diameter: 6 mm
• Number of ball track turns: 3
• Number of starts: 2
• Direction of Lead: Right-Hand Thread
• Dimensions:
• Flange diameter: 93 mm
• Nut outer diameter: 63 mm
• Nut length: 88 mm
• Flange thickness: 15 mm
• Cutting flange width: 81.5 mm
• Threaded length: 2330 mm

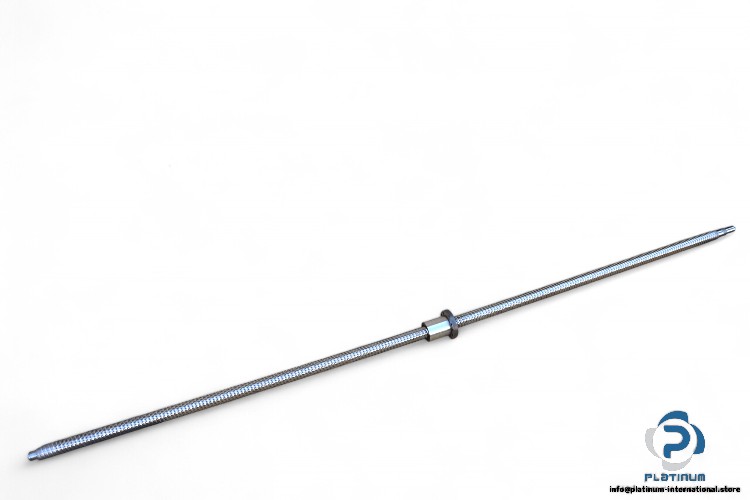

• Total screw length: 2440 mm
• Hole pattern: BB1
• Lube port machining: M8x1

Load Rating:

• Dynamic: 45500 N
• Static: 62800 N

• Linear speed: 75 m/min
• Operating temperature: -10 °C to 80 °C
