Rietschle SPH 160 (01) Vacuum Pump
Neu
Auf Anfrage verfügbar
975,00$
RIETSCHLE Vakuumpumpe Hochleistungs-RIETSCHLE SPH160(01) Vakuumpumpe mit 3,8 kW Leistung, 6200 U/min und IP54 Schutz, integriert mit ATB MF100S/6X-11 Fußflansch-Magnetmotor. Ideal für dauerhaften industriellen Einsatz.
3.8kW600346200ATBClassContinuousDutyENFFlangeFootIndustrialInsulationIP54MagnetmotorpumpRietschlerpmSPH160StandardSystemUnitvacuum
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

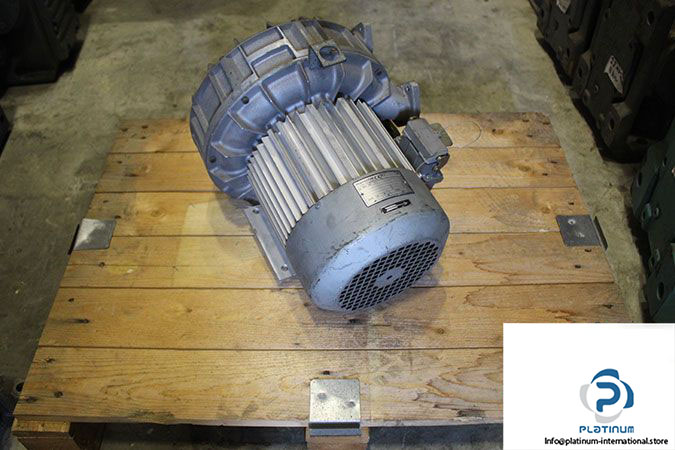

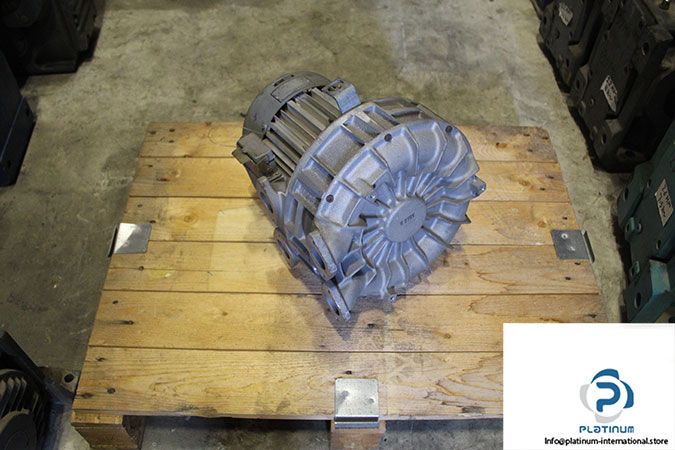

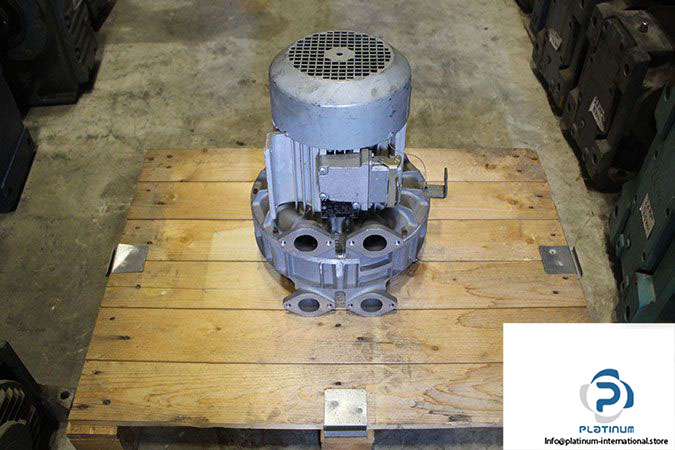

RIETSCHLE SPH160(01) VACUUM PUMP WITH ATB MAGNET MOTOR
The RIETSCHLE SPH160(01) Vacuum Pump is engineered for continuous-duty industrial vacuum systems. Integrated with a high-efficiency ATB MF100S/6X-11 Magnet Motor, it delivers reliable and powerful suction performance with superior insulation and protection standards, making it ideal for demanding industrial environments.

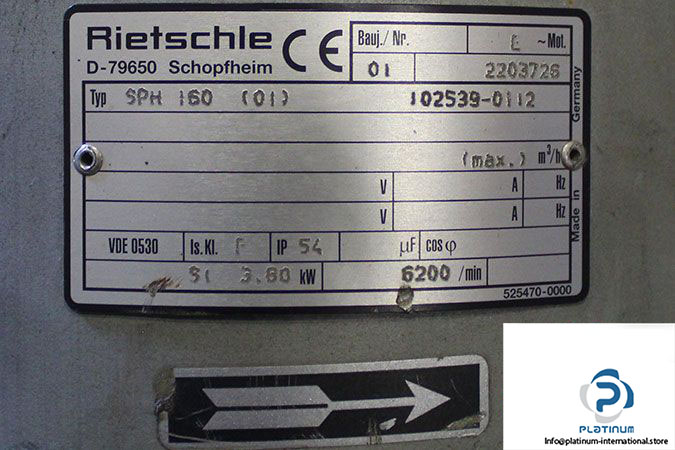

Manufacturer: RIETSCHLE
Type: Vacuum Pump
Model: SPH160(01)
Part No.: 102539-0112
Vacuum Pump Technical Information
- Motor Rating: 3.8 kW
- Rated Speed: 6200 rpm
- Protection Class: IP54
- Insulation Class: F
- Duty: S1 (Continuous)

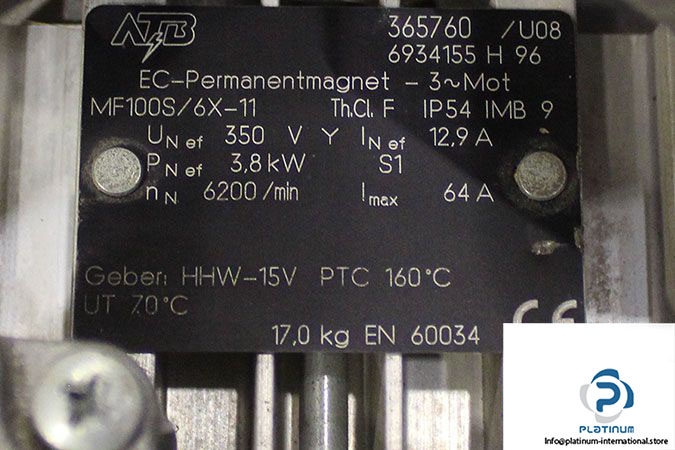

Magnet Motor (ATB MF100S/6X-11) Technical Information
- Part No.: 365760/U08 / 6934155 H 96
- Voltage Effect: 350V / Star
- Power Effect: 3.8 kW
- Speed Effect: 6200 rpm
- Current Effect: 12.9 A
- Maximum Current: 64 A
- Mounting: Foot Flange Motor
- Frame Size: 100S
- Number of Poles: 6
- Encoder Model: HHW-15V PTC 160°C
- Standard: EN 60034
