Sick DFS60B-S4EA00005 Incremental Encoder
Neu
Auf Lager1 EinheitVersandbereit
125,00$
INKREMENTALER ENCODER Sick DFS60BS4EA00005 liefert präzise Bewegungssteuerung mit Edelstahlwelle, 600 kHz Ausgangsfrequenz und HTL/Push-Pull-Schnittstelle. Entwickelt für industrielle Leistung und raue Umgebungen.
10372606-ChannelAluminumCastConnectorControlDFS60BS4EA00005DieEncoderFeedbackHTLIncrementalIndustrialIP65M23MotionPrecisionshaftSickSpeed
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

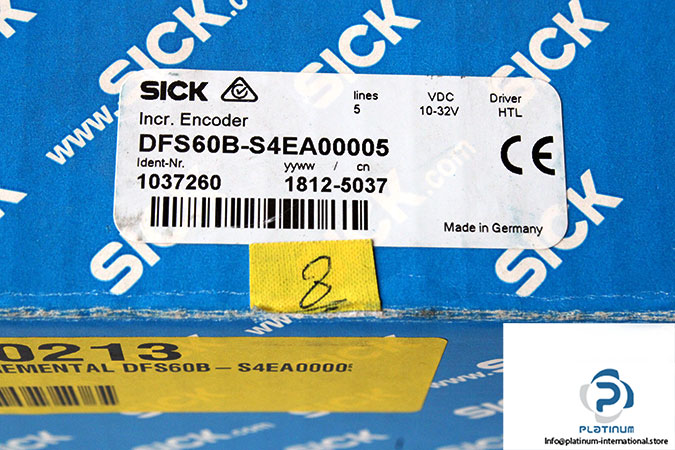

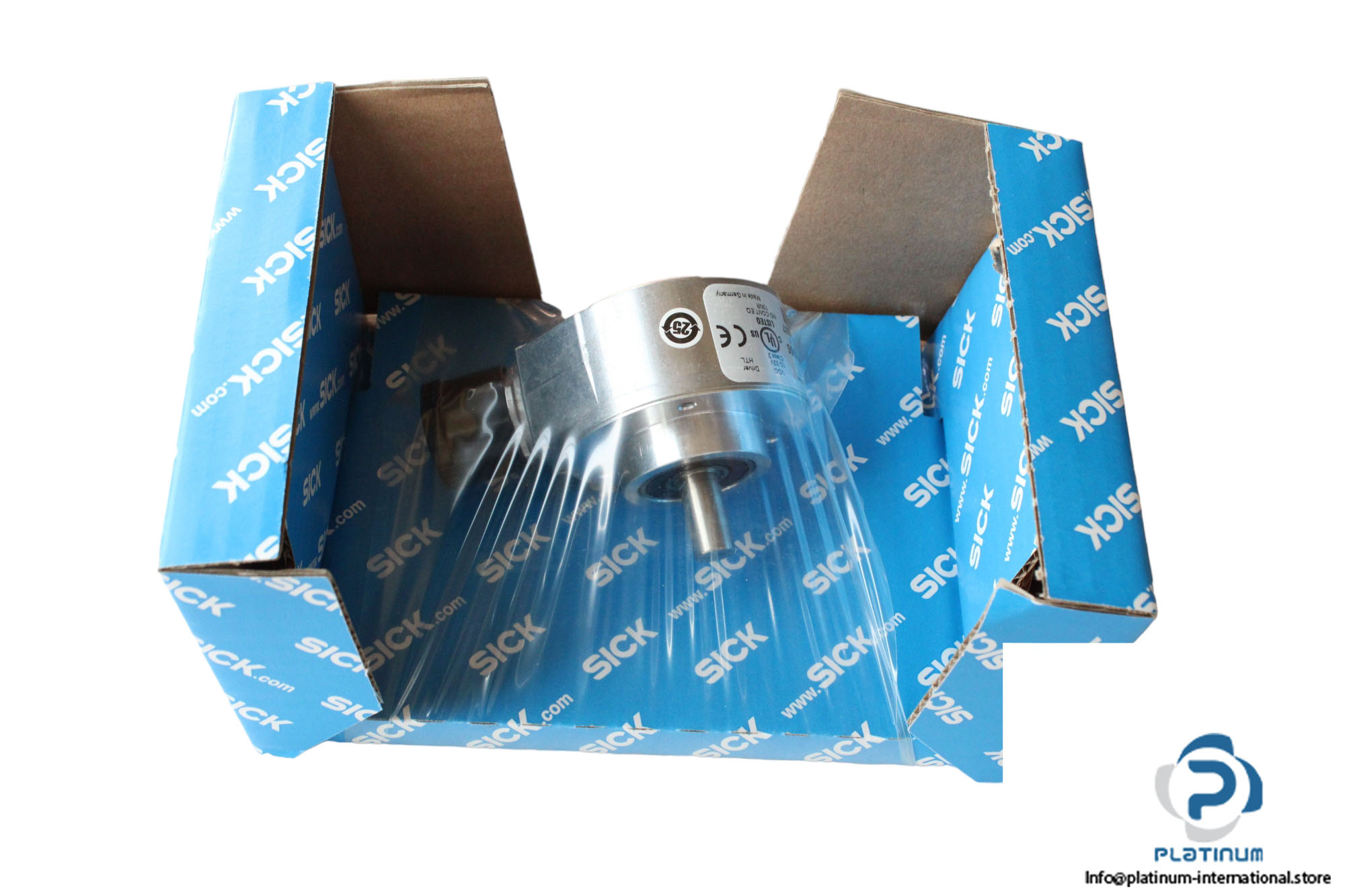

SICK DFS60BS4EA00005 INCREMENTAL ENCODER
The Sick DFS60BS4EA00005 is a high-precision incremental encoder designed for demanding industrial environments. Built with a rugged aluminum die-cast housing and stainless steel shaft, it ensures accurate positioning and speed feedback even under tough conditions.
Manufacturer: Sick
Type: Incremental Encoder
Model: DFS60BS4EA00005
Part No.: 1037260 1812-5037
| Operating Voltage | 10 / 32 V |
| Load Current Max. | 30 mA |
| Power Consumption | 0.5 W |
| Mechanical Interface | Solid Shaft, Face Mount Flange |
| Shaft Diameter / Length | 10 mm / 19 mm |
| Shaft Material | Stainless Steel |
| Operating Speed | ‰¤ 9,000 min»¹ |
| Angular Acceleration | ‰¤ 500,000 rad/s² |
| Operating Torque | 0.3 Ncm |
| Housing Material | Aluminum Die Cast |
| Communication Interface | Incremental (HTL / Push Pull) |
| Signal Channels | 6-Channel |
| Connection Type | Male Connector, M23, 12-Pin, Radial |
| Max Output Frequency | 600 kHz |
| Pulses per Revolution | 5 |
| Working Temperature | -30 / 100 °C |
| Enclosure Rating | IP65 |
