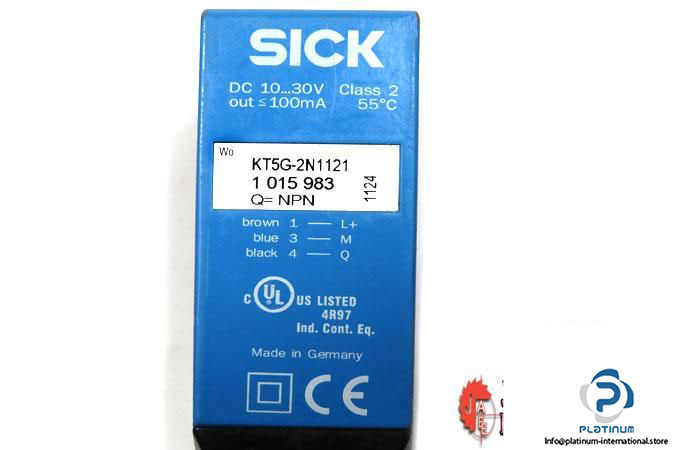

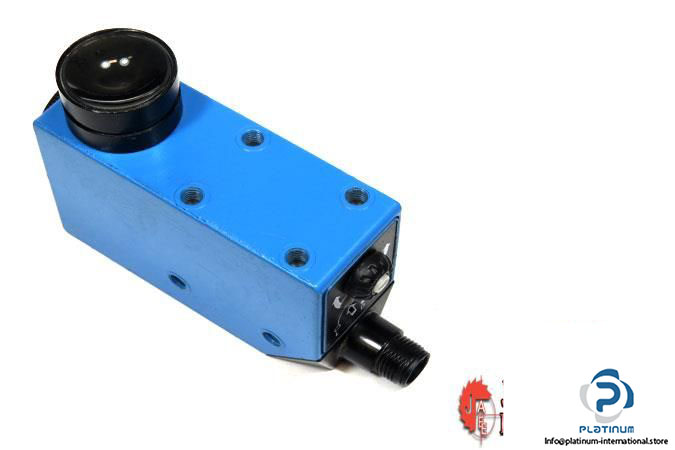

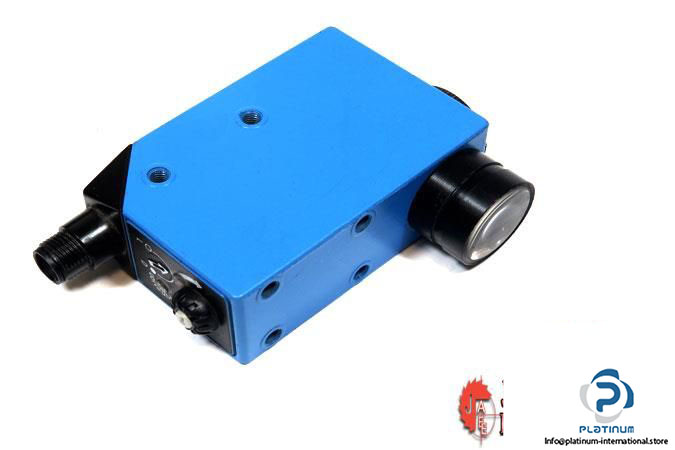

Sick KT5G-2N1121 Contrast Sensor
Manufacturer: SICK
Type: CONTRAST SENSOR
Model: KT5G-2N1121
Part No.: 1015983
Sensing Distance: 10 mm
Supply Voltage: 10 … 30 V DC
Power Consumption (Without Load): < 80 mA
Output Current: 100 mA
Switching Output: NPN

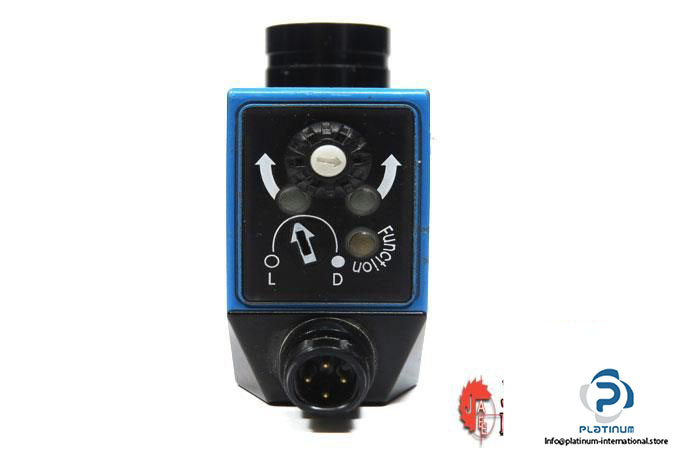

Output Function: Light / Dark Switching
Switching Output (Voltage): NPN: HIGH = approx. VS / LOW ≤ 2 V
Switching Frequency: 10 kHz
Ripple: ≤ 5 Vpp
Sensing Distance Tolerance: ± 3 mm
Response Time (With Resistive Load): 50 µs
Time Delay: 20 ms
Wave Length: 520 nm
Light Source: LED, Green
Light Spot Size: 1.2 X 4.2 mm

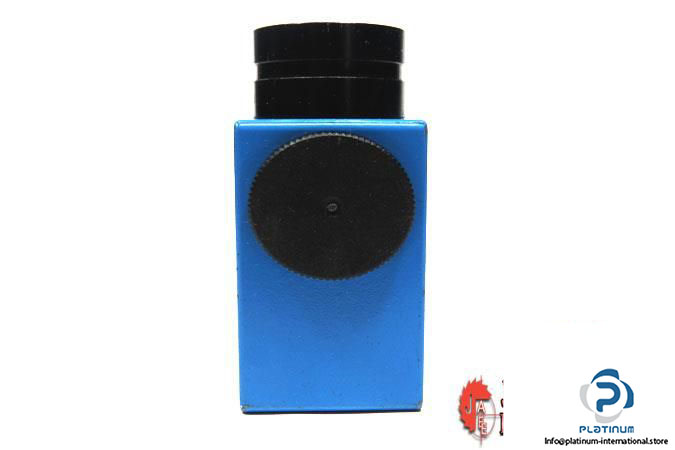

Adjustment: Potentiometer
Connection Type: Male Connector M12, 4-Pin
Enclosure Rating: IP67
Dimensions: 30.4 x 53 x 80 mm
Housing Material: Zinc Diecast
Enclosure Rating: IP67
Ambient Operating Temperature: -10 … 55 °C
