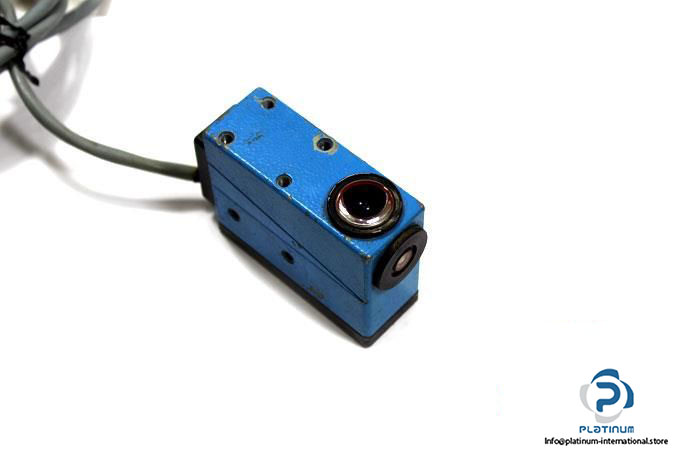

Sick NT6-01 Contrast Sensor
Manufacturer: SICK
Type: CONTRAST SENSOR
Model: NT6-01
Sensing distance: 9 mm
Sensing distance tolerance: ± 2 mm
Response time: 50 µs
Operating Voltage: 10 … 30 V DC
Ripple: < 5 VPP
Power consumption: 80 mA
Output current: 200 mA
Switching output: PNP

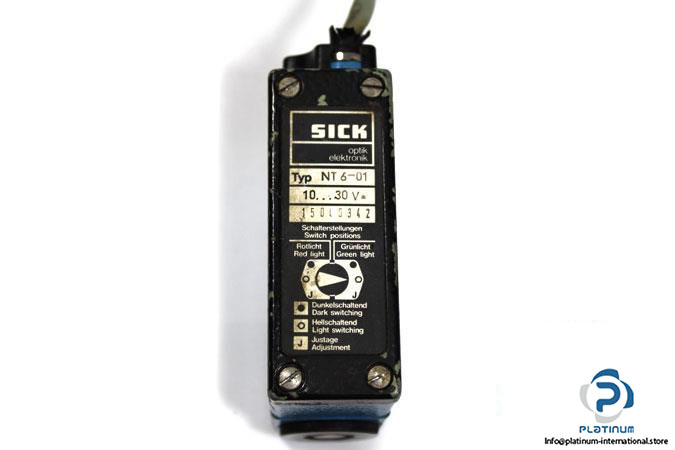

Switching mode: Dark/light switching
Light source: LED, Red, green
Adjustment: Potentiometer

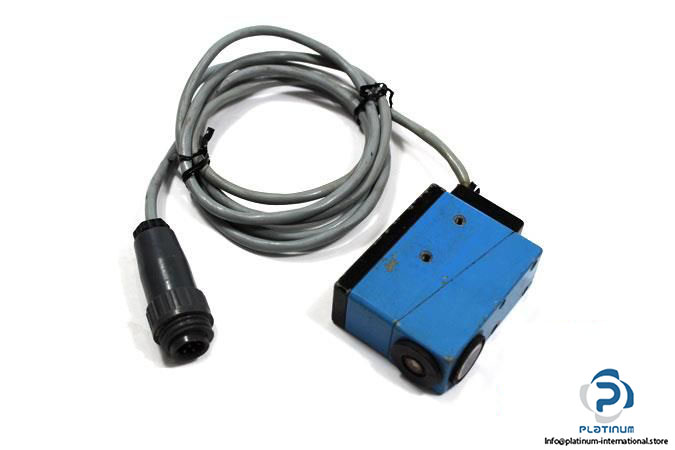

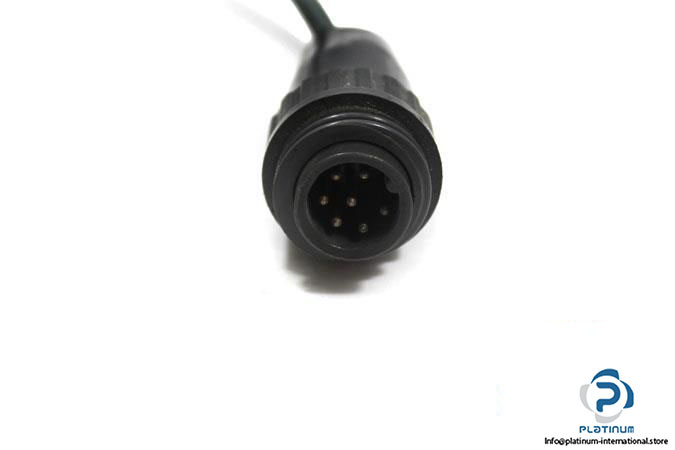

Connector type, length: PVC Cable,2 m, M18 Circular connector,7-pin
Protection class: III
Enclosure rating: IP67
Ambient Operating temperature: 0 … 50°C
Dimensions: 64 x 80 x 30.4 mm
Housing: Rectangular
Weight: Approx. 540 g
Condition: Used
