Sick UE48-2OS2D2 Safety Relay

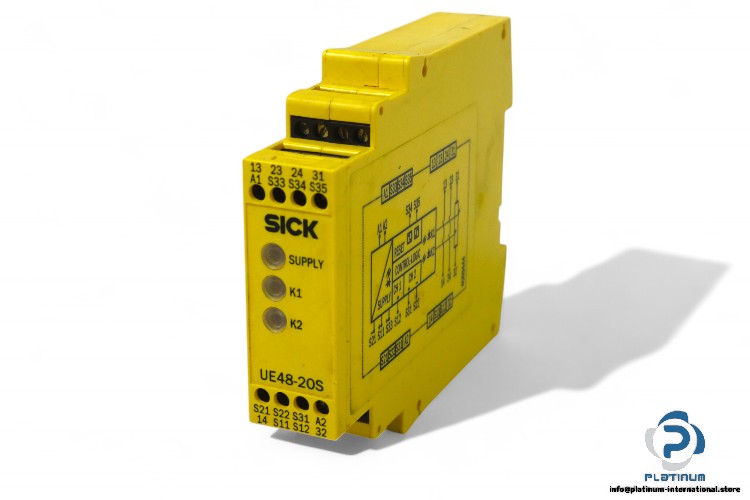

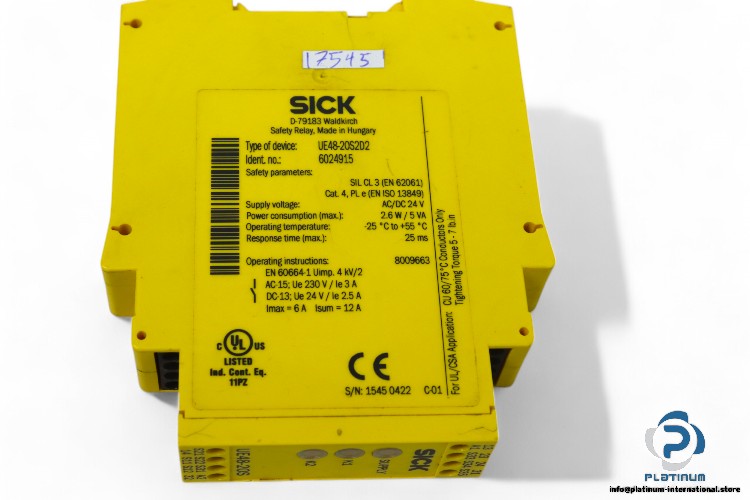

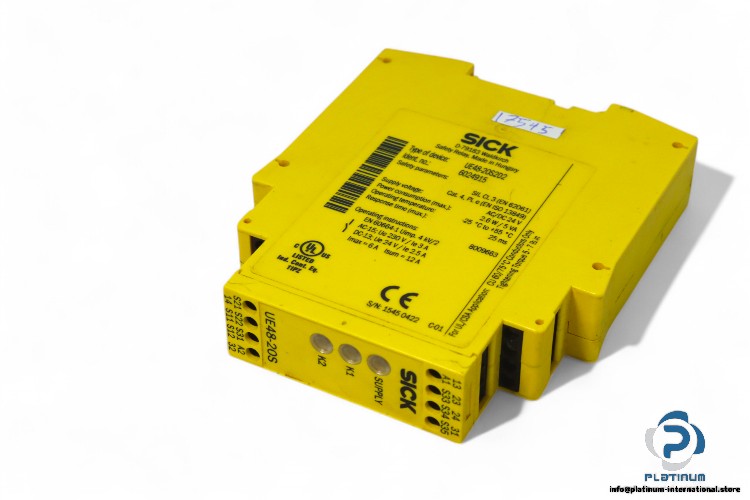

SICK Safety Relay UE48-2OS2D2

The SICK Safety Relay UE48-2OS2D2 is designed to provide reliable protection and safe control in industrial applications. With an overvoltage category of II and rated insulation voltage of 300 V AC, this relay is equipped to handle challenging conditions while ensuring high operational safety. It offers a power consumption of 4.6 VA (AC) and 2.1 W (DC), with a wide control voltage range of 22 V DC, making it ideal for versatile control applications.

🔧 Technical Specifications:

• Manufacturer: SICK
• Type: Safety Relay
• Model: UE48-2OS2D2
• Supply Voltage: 20.4 V AC/DC … 26.4 V AC/DC
• Residual Ripple: 2.4 Vpp
• Power Consumption: 4.6 VA (AC), 2.1 W (DC)
• Overvoltage Category: II
• Rated Insulation Voltage: 300 V AC
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Test Voltage: 2 kV
• Control Voltage: 22 V DC
• Control Current: 40 mA … 100 mA
• Short-Circuit Current: 300 mA
• Dimensions (W x H x D): 22.5 mm x 114 mm x 96.5 mm
